AVM4077 Multi-Function Display

CLICK TO ENLARGE IMAGE

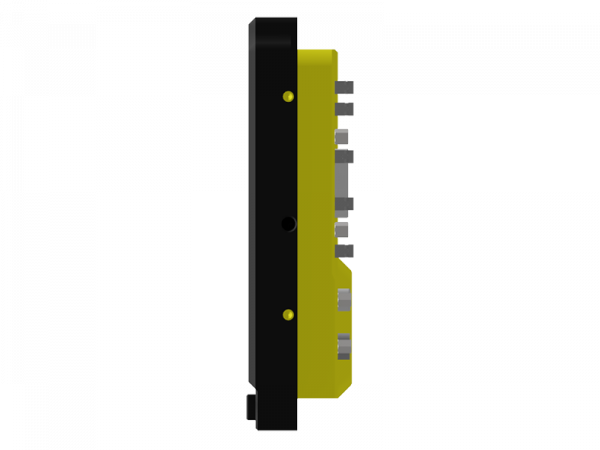

AVM4077 Multi-Function Display

Designed to pack a lot of capability into a very small footprint, the AVM4077 features a 7″ (diagonally) sunlight-readable LCD with HD, SD, DVI, and VGA connectivity in a small 5.68″ x 7.15″ form factor. NVIS-compatibility and bezel backlighting options are available.

Ideal for displaying video, mapping, and mission computer data anywhere space is a premium, the AVM4077 puts a wealth of functionality at the end user’s fingertips, providing one-touch actuation for windowing, source selection, map activation, dimming, and image freeze/zoom. This display both complements and enhances Mercury’s wide range of well-proven and deployed rugged systems; Mercury’s display technology has served both military and civil Law Enforcement/SAR/Border Patrol customers robustly for over a quarter of a century, offering both rugged performance and crisp, clear video processing in a demanding environment where reliability and operational performance are key to the mission.

View Datasheet

Features

SCREEN MODES

Full screen mode displays only one input signal.

Picture-in-picture (PIP) mode displays two input signals simultaneously, one in a large format and one in a smaller window, whose position is configurable.

Picture-by-picture (PBP), or side-by-side mode, displays two input signals next to each other as equally sized images whose aspect ratios are maintained. Excess screen space appears as black bars.

Split screen (SS) mode displays two input signals simultaneously as equally sized images that are stretched/cropped to fit each window.

In each mode, aspect ratios can be maintained in letterbox format, or set to stretch and fit, or be cropped in the viewing space.





















Products formerly Avalex
Specifications

Model AVM4077

Width (in)

  • 7.15

Height (in)

  • 5.68

Depth (in)

  • 0.70

Weight (lb)

  • 1.7

Display Area (in)

  • 7

Aspect Ratio

  • 16:10



I/O

  • Composite Video 3 in / 1 loopthrough, DVI 1 port, HD Video 1 in / 1 loopthrough, VGA 1 port

Variants

  • AVM4077N NVIS-Compatible

Storage Temperature Range

  • -55˚C to +85°C

Operating Temperature Range

  • -40°C to +71°C

Input Voltage

  • 28 VDC

Qualifications

  • MIL-STD-461, MIL-STD-810
