AM3073A
1.0 GHz A/D Driver, 500 MHz Bandwidth
Function:
A/D Driver
Package:
18mm x 24mm x 4.0mm Package ECCN:

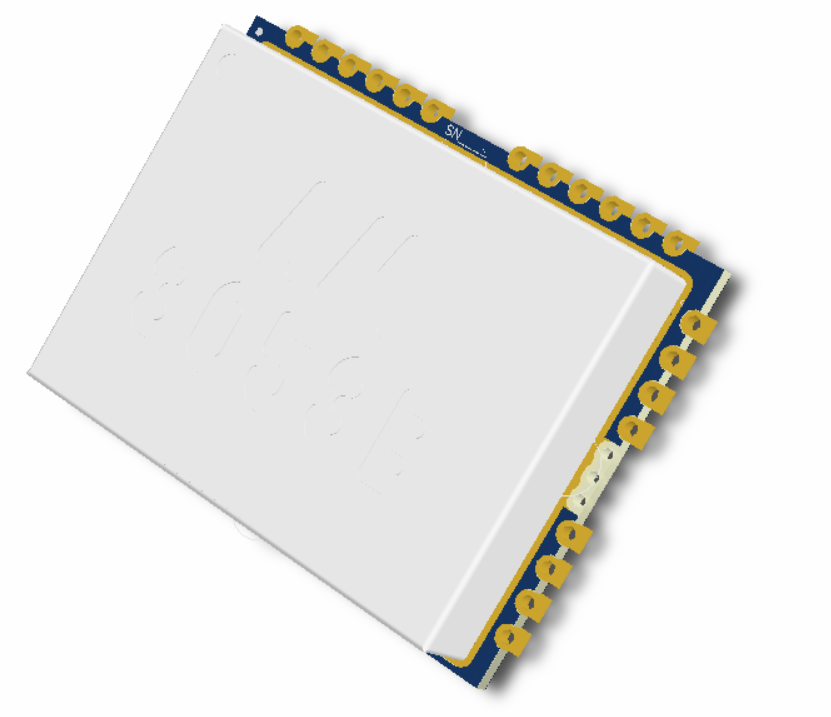

XI(c)(2) AM3073A is a shielded A/D driver module that provides amplification and antialiasing filtering of the 1.0 GHz IF output of the AM9017 tuner module.
The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.

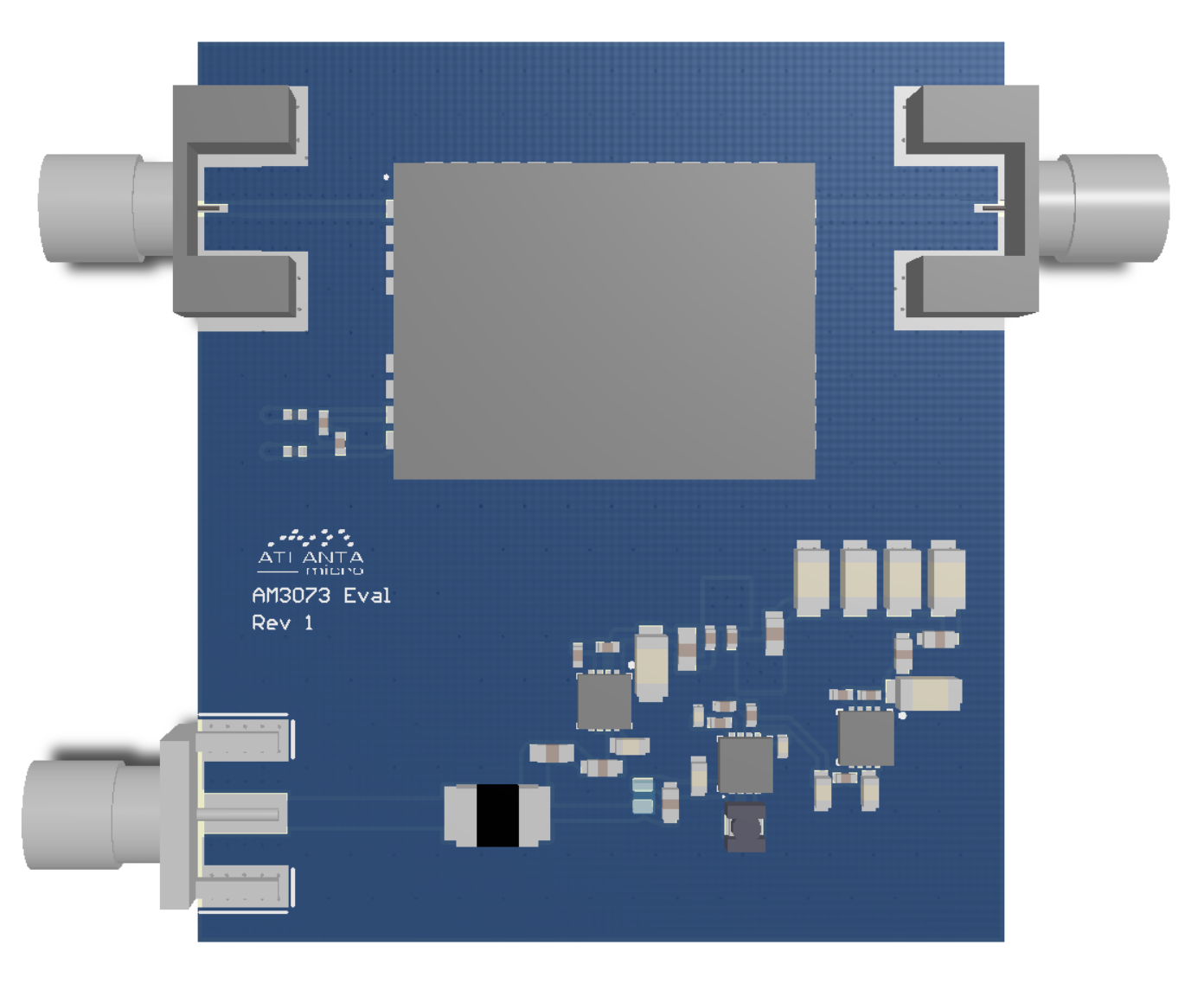

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM3073A.
0.75 - 1.25
Frequency (GhZ)
7
NF (dB)
12
IIP3 (dB)
500
Bandwidth (MHz)
