AM9024
4 Receive, 1 Transmit 0.01 GHz to 18 GHz
Function:
Transceiver Module
Package:
3.10” x 2.72” x 0.34” ECCN:

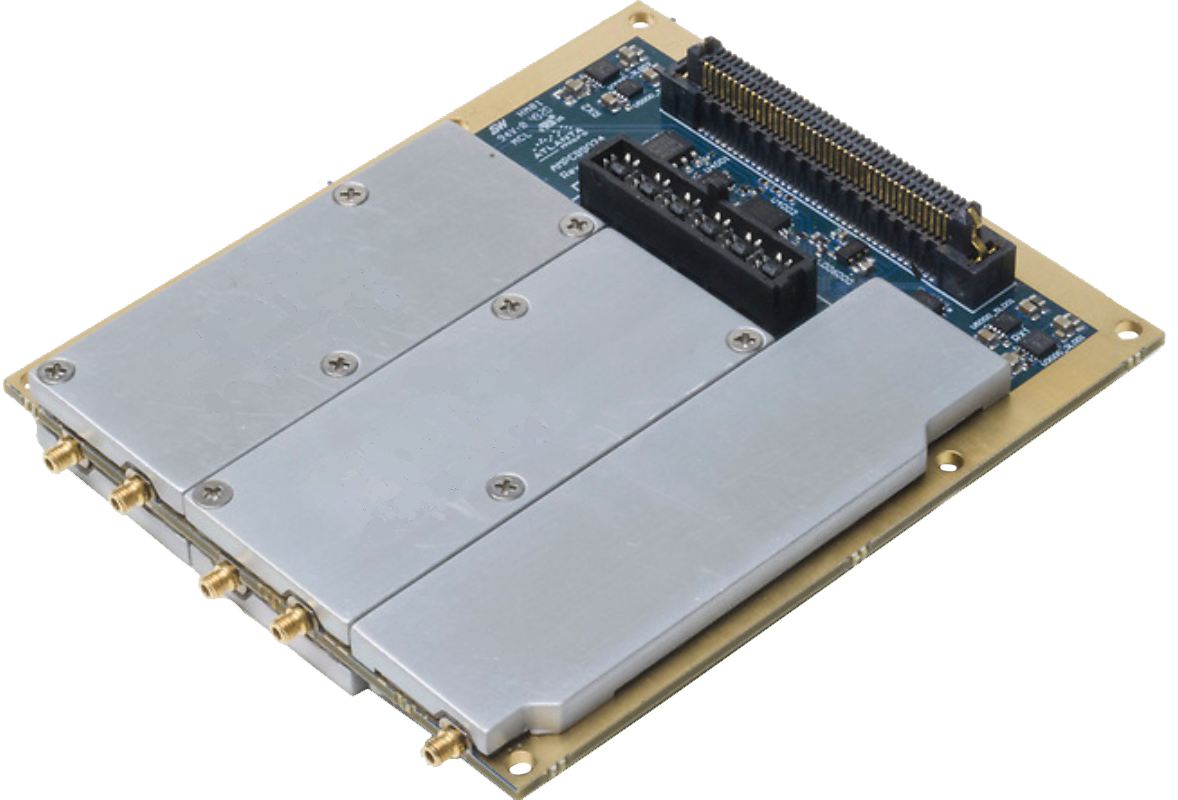

5A991.b.1 AM9024 is a fully integrated FMC sized module with four receive channels and one transmit channel covering 6 GHz to 18 GHz with 1000 MHz instantaneous bandwidth.
AM9024 also offers direct feed through of signals from 10 MHz to 6 GHz in both the transmit and receive channels. The super-heterodyne tuner module is designed for high performance and low size, weight, and power (low SWaP) and is easily mounted to a host circuit board for signal processing and control. In each channel sub-octave pre-selectors, pre-amplifiers, local oscillators, frequency converters, power and control line filtering, power conditioning, and FPGA-based control interface.
6 - 18
Frequency (GHz)
4
Rx Channels
4
IIP3 (dBm)
1000
Bandwidth (MHz)
