2 GHz to 26.5 GHz Low Noise Amplifier
AM1100-D is a wideband, cascadable amplifier servicing the 2 to 26.5 GHz frequency range. It is a low SWaP device drawing less than 100mW of power and available as bare die in a 1.34mm x 0.94mm footprint with internal 50Ω matching and DC blocking capacitors. The device’s low noise figure and wideband operation makes it an excellent choice for many broadband receiver applications. See also AM1100, which is packaged in a 3mm QFN.
2 - 26.5
Frequency (GhZ)

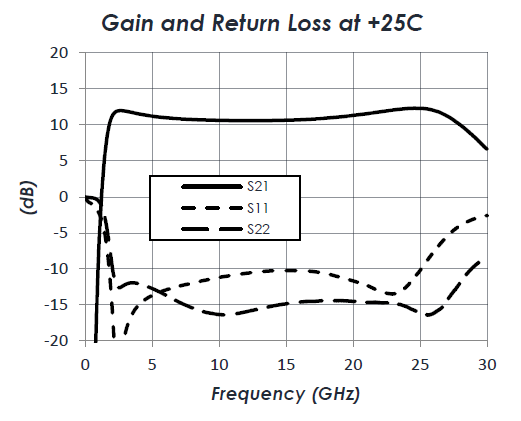

11
Gain (dB)

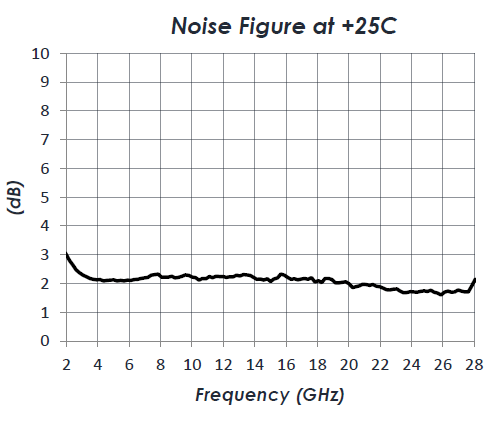

2.1
NF (dB)
22
OIP3 (dBm)
