20 MHz to 18GHz Driver Amplifier

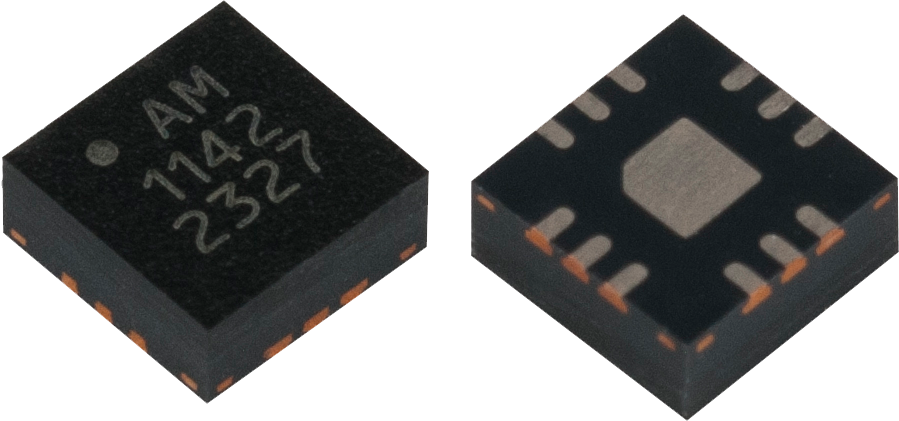

The AM1142 is a wideband, cascadable amplifier servicing the 20 MHz to 18 GHz frequency range. The device exhibits exceptional linearity and power handling capabilities across its bandwidth, while maintaining moderate gain and noise figure. With internal 50 Ω matching and packaged in a 3 mm QFN, the AM1142 represents a compact total PCB footprint.
Product options include the AM1142 Surface mount 3mm QFN and AM1142-Eval Connectorized Evaluation Board
ECCN/USML: EAR99
.02 - 18
Frequency (GhZ)
16
Gain (dB)
2.4
NF (dB)
31

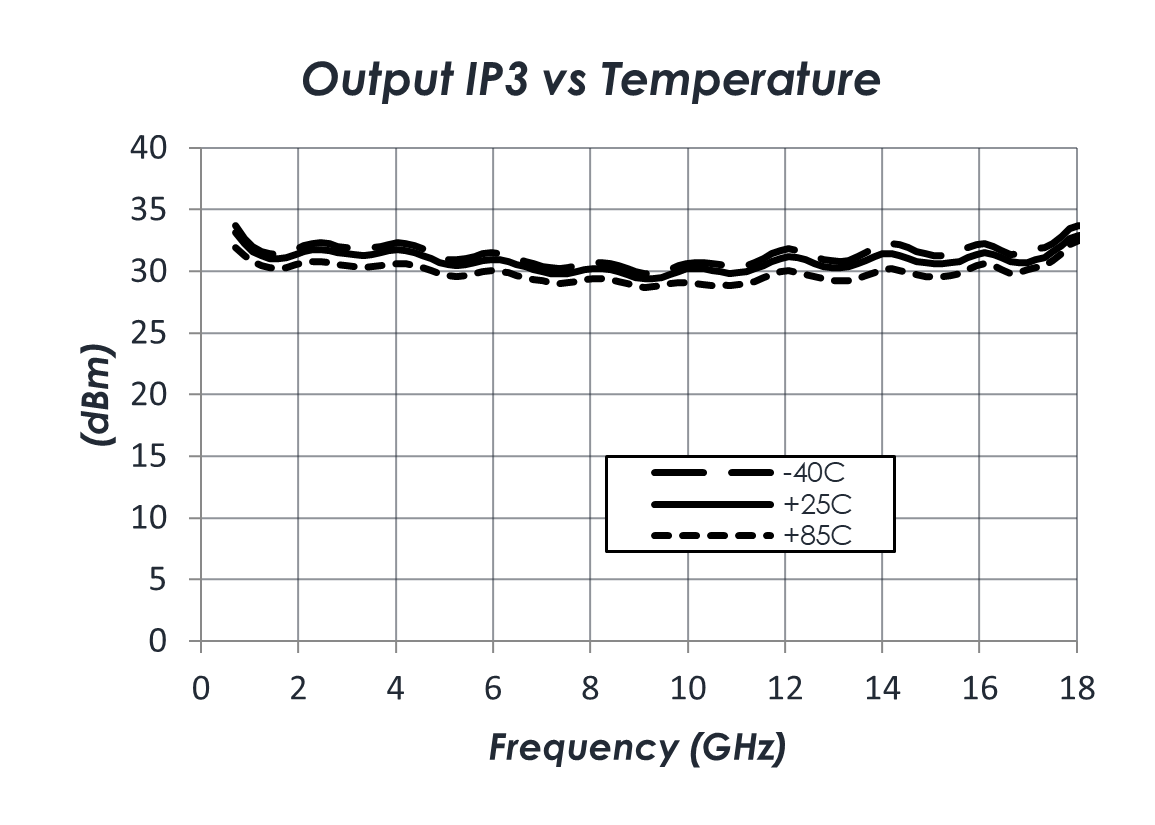

OIP3 (dBm)
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
