AM1168 15 to 35 GHz Driver MMIC Amplifier

15 to 35 GHz Driver Amplifier

AM1168 is a wideband, cascadable amplifier servicing the 15 to 35 GHz frequency range. The device exhibits 18 dB of gain with high OIP3 and P1dB. The combination of high linearity, output power, and gain makes the AM1168 an ideal choice for high dynamic range Ka Band applications. Packaged in a 4mm QFN with internal 50Ω matching, the AM1168 is a small form-factor solution that can enable low SWaP solutions.

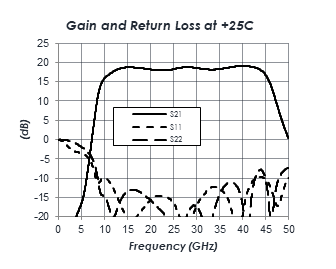

See also AM1168-D, available as bare die in a 2.10mm c 1.34mm footprint.

ASK A QUESTION


15 - 40
Frequency (GhZ)
18
Gain (dB)
3.6
NF (dB)
31
OIP3 (dBm)
Features

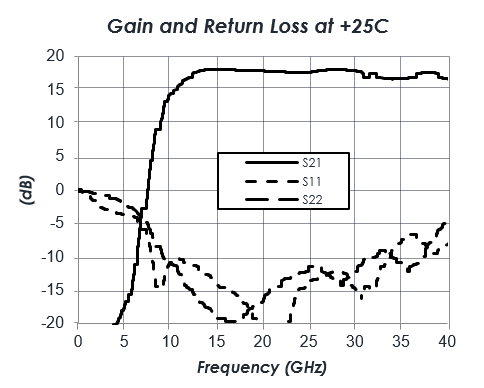

  • 18 dB gain
  • 20 dBm P1dB

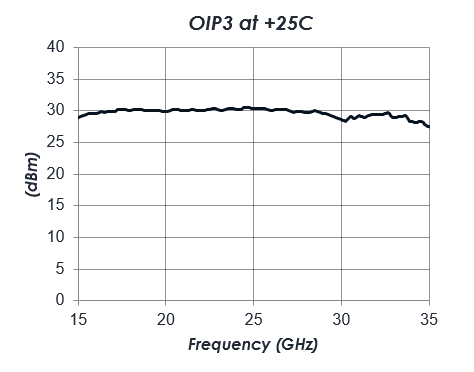

  • 30 dBm OIP3
  • 3.2 dB Noise Figure
  • 21.5 dBm Psat
  • +3.3V / +5.0V Operation
  • 114 mA / 208 mA Current
  • 4mm QFN
  • -40C to +85C Operation
Specifications
  • Function: Driver Amplifier
  • Freq. (GHz): 15 - 35
  • Gain (dB): 18
  • NF (dB): 3.2
  • OIP3 (dBm): 30
  • Supply (+V): 5
  • P1dB (dBm): 20
  • Supply (mA): 114 mA / 208 mA Current
  • QFN: 4mm
