AM1175 6 to 18 GHz Driver MMIC Amplifier

6 to 18 GHz Driver Amplifier

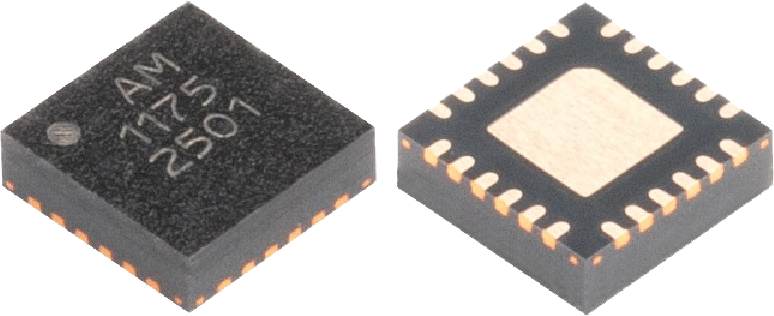

AM1175 is a wideband driver amplifier covering the 6 to 18 GHz frequency range. It exhibits high gain and high P1dB with excellent power-added efficiency above 32% at saturation using a 5V supply rail. The AM1175 is packaged in a 4mm QFN with internal matching and DC blocking capacitors.

ECCN/USML:  EAR99

ASK A QUESTION


6 - 18
Frequency (GhZ)
18
Gain (dB)
3.7
NF (dB)
35
OIP3 (dBm)
Features
Features
  • 21 dB Gain
  • +25 dBm P1dB
  • +26 dBm Psat
  • 27% PAE at P1dB
  • 32% PAE at Psat
  • +35 dBm OIP3
  • +5V/175 mA Operation
  • 4mm QFN
  • -40C to +85C Operation

Resources

REQUEST A QUOTE

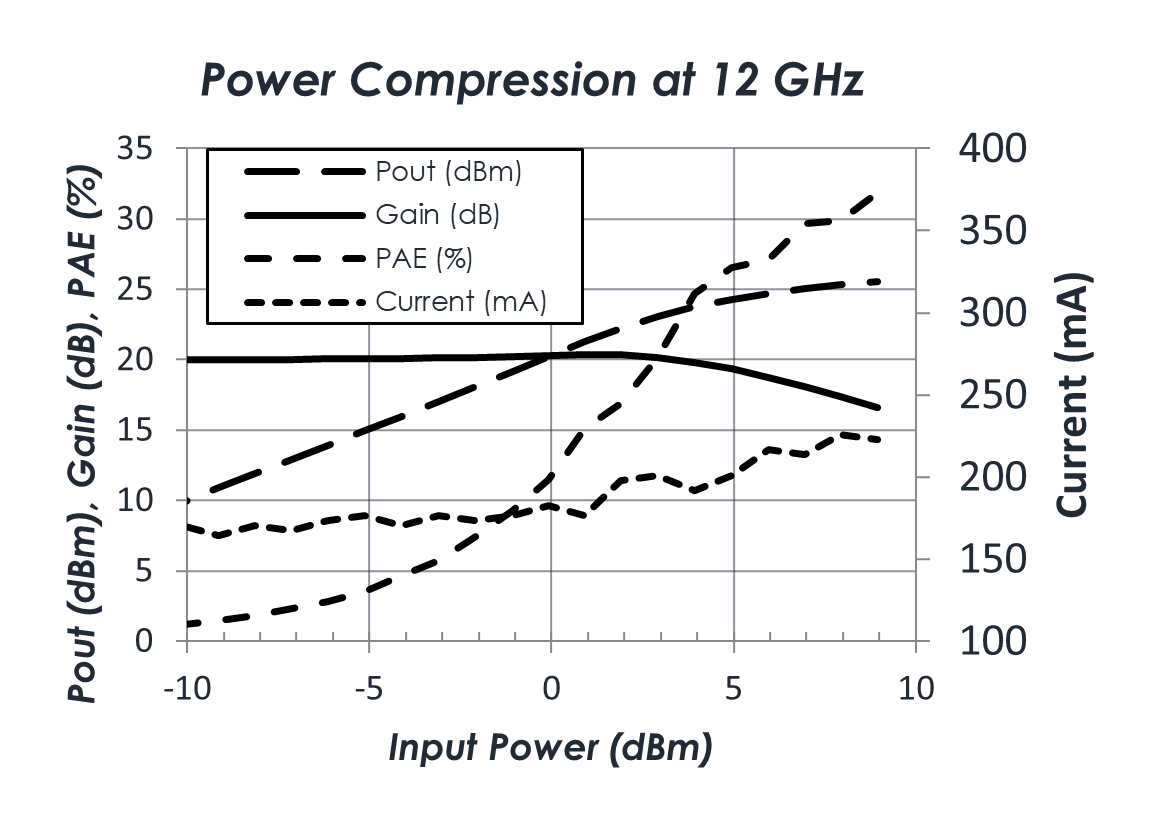

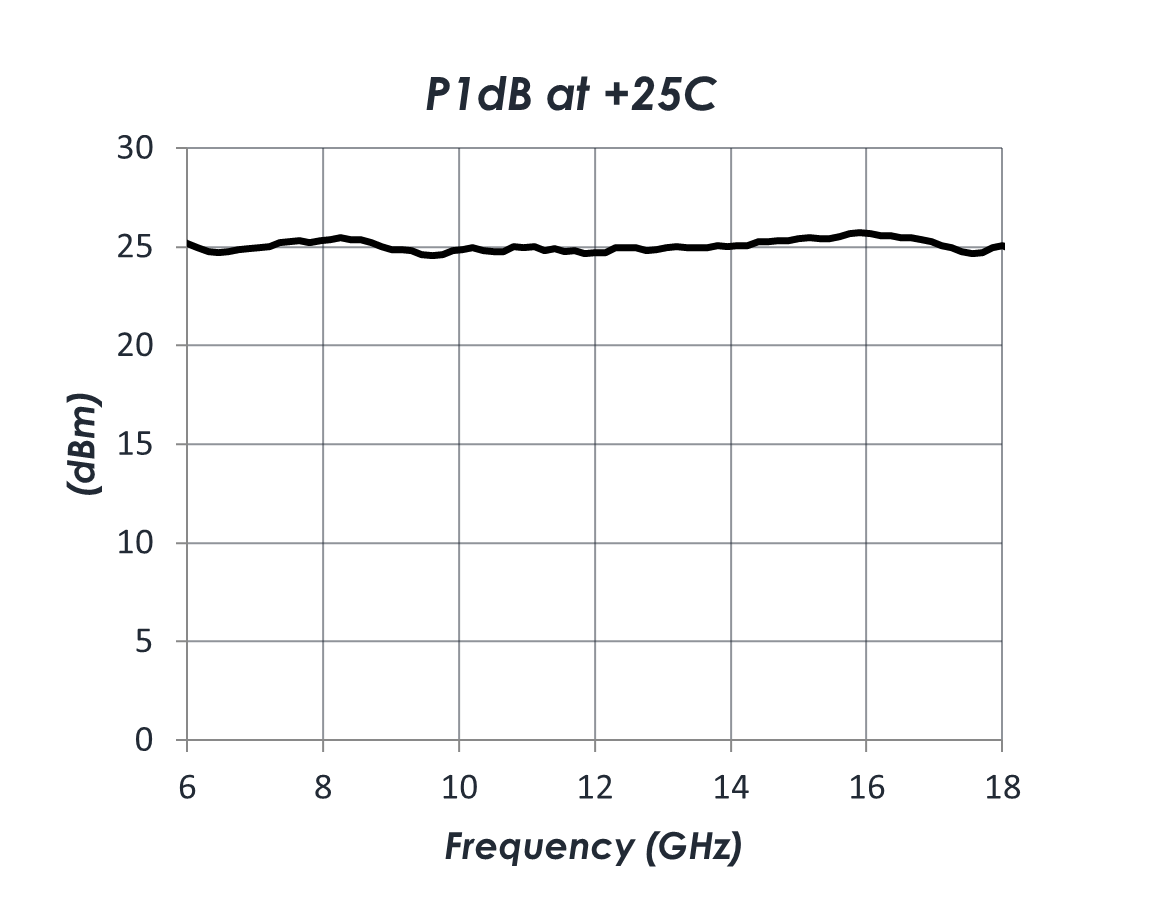

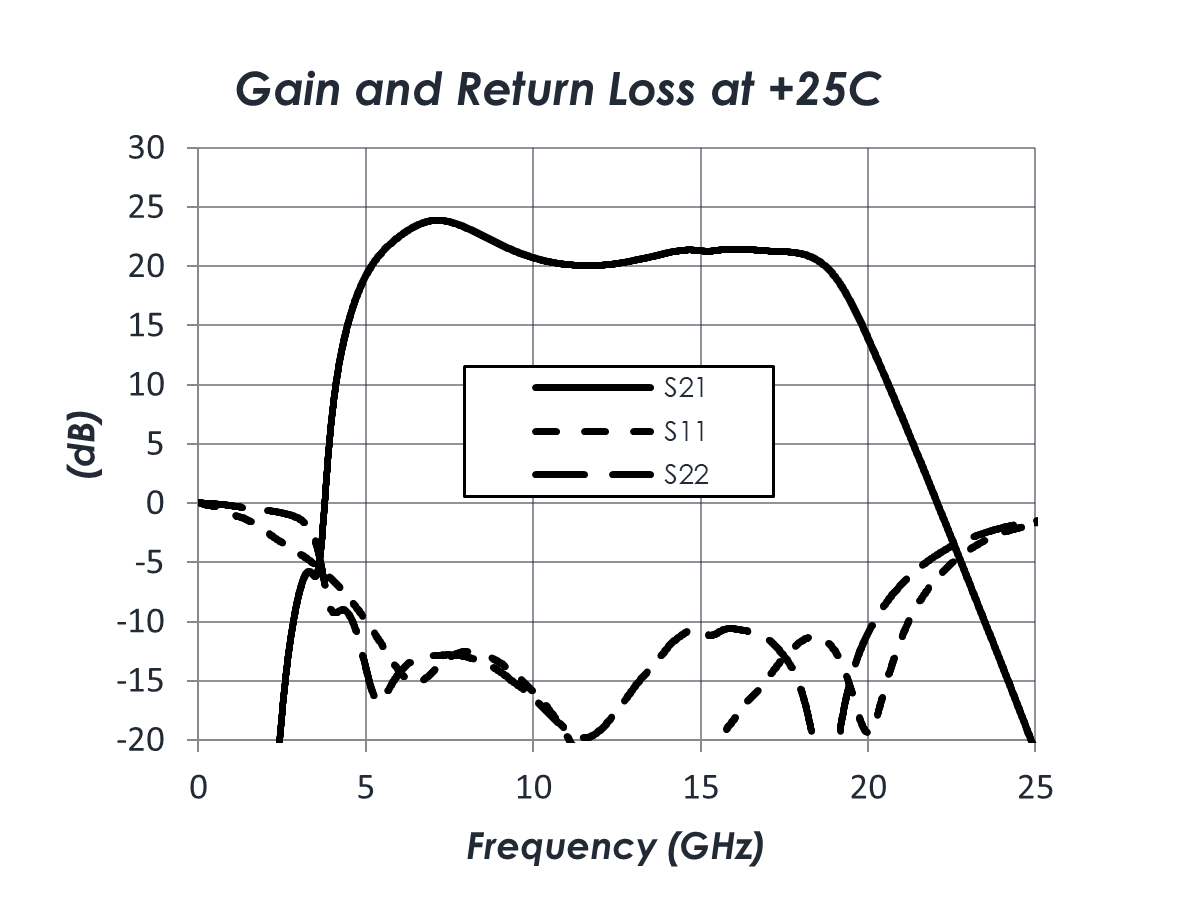

Gain Return ChartP1dB at 25CPower Compression at 12 GHzOutput IP3 ChartOutput IP2 Chart
