AM3060-M Digitally Tunable 320 MHz to 6.5 GHz Bandpass MMIC Filter

Digitally Tunable 320 MHz to 6.5 GHz Band Pass Filter

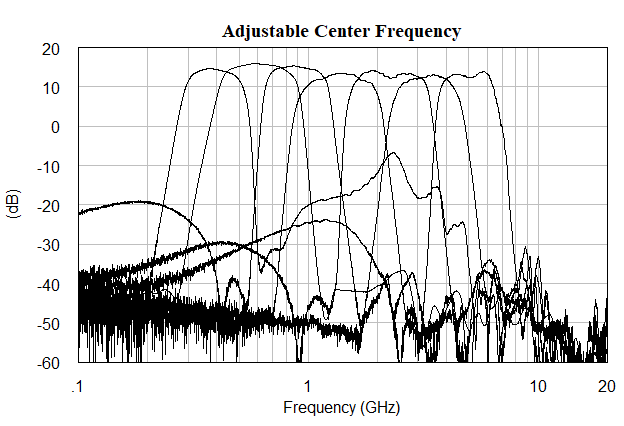

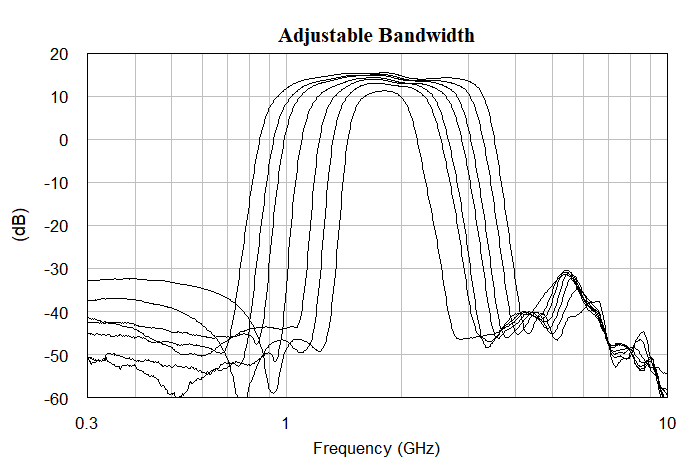

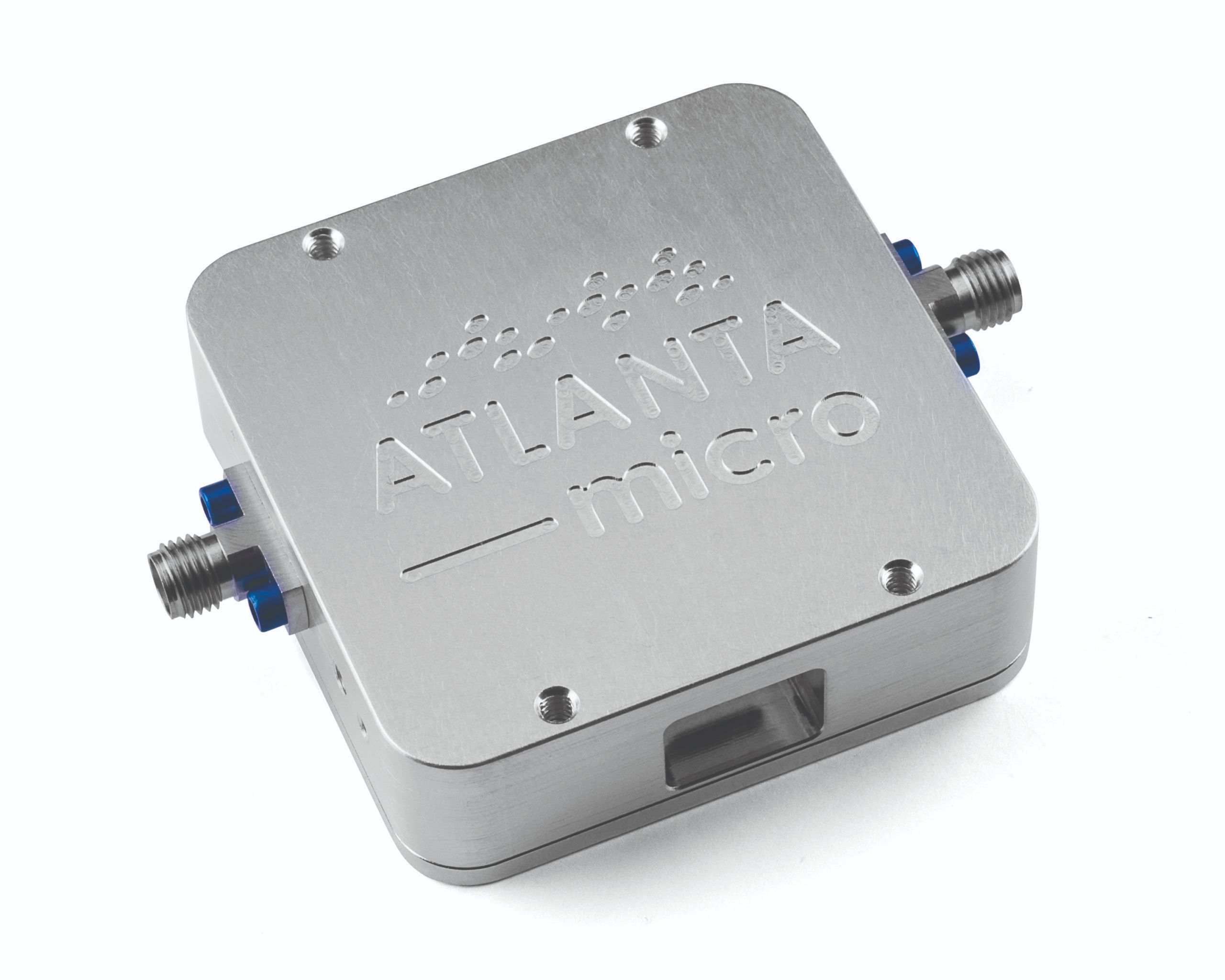

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

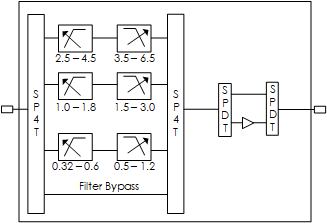

The AM3060-M65 includes the filters of the AM3060 with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

The AM3060 is also available as a standalone 12mm 60 Lead QFN.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3060 evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3060 . The AM3060 evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3060 device and a trace calibration path.

ASK A QUESTION


4
Insertion Loss (dB)
60
Typical Rejection (dB)
2.1''
Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 320
  • Cutoff Freq High (MHz): 6500
  • Insertion Loss (dB): 4
  • Typical Rejection (dB): 60
  • Package: 2.1'' x 2.1''
  • Bandwidth Low (MHz): 180
  • Bandwidth High (MHz): 4000
  • Center Frequency: 400 to 5500
  • # in Pack: 3 + Bypass
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 320
  • Cutoff Freq High (MHz): 6500
  • Insertion Loss (dB): 4
  • Typical Rejection (dB): 60
  • Package: 2.1'' x 2.1''
  • Bandwidth Low (MHz): 180
  • Bandwidth High (MHz): 4000
  • Center Frequency: 400 to 5500
  • # in Pack: 3 + Bypass
