AM4009
6 GHz to 24 GHz 2-Way 0° Splitter
Function:
Splitter
Package:
3mm QFN Package ECCN:
EAR99 AM4009 is a broadband two-way power splitter / combiner providing low loss and high isolation from 6 GHz to 24 GHz.
With internal 50Ω matching and packaged in a 3mm QFN, the AM4009 represents a compact total PCB footprint.

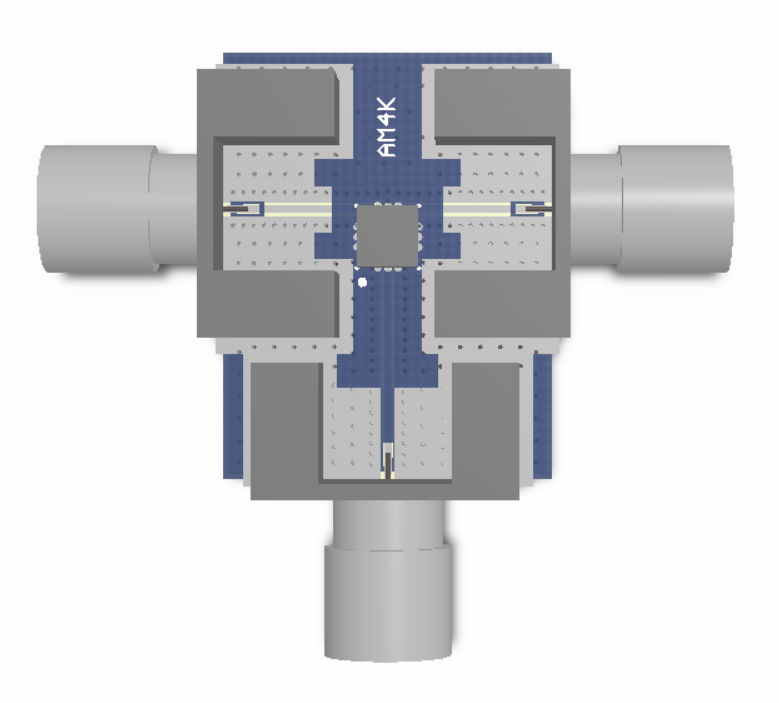

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM4008.
6 - 24
Frequency (GHz)
2
Insertion Loss (dB)
25
Isolation (dB)
