AM4026
DC to 30 GHz Resistive Power Splitter
Function:
8-Way Power Splitter
Package:
4mm QFN Package ECCN:
3A001.a.7.b AM4026 is a broadband eight-way resistive power splitter / combiner.
The device boasts high isolation, low insertion loss, and high return loss in each of its eight paths. With internal 50Ω matching and packaged in a 4mm QFN, the AM4026 represents a compact total PCB footprint.

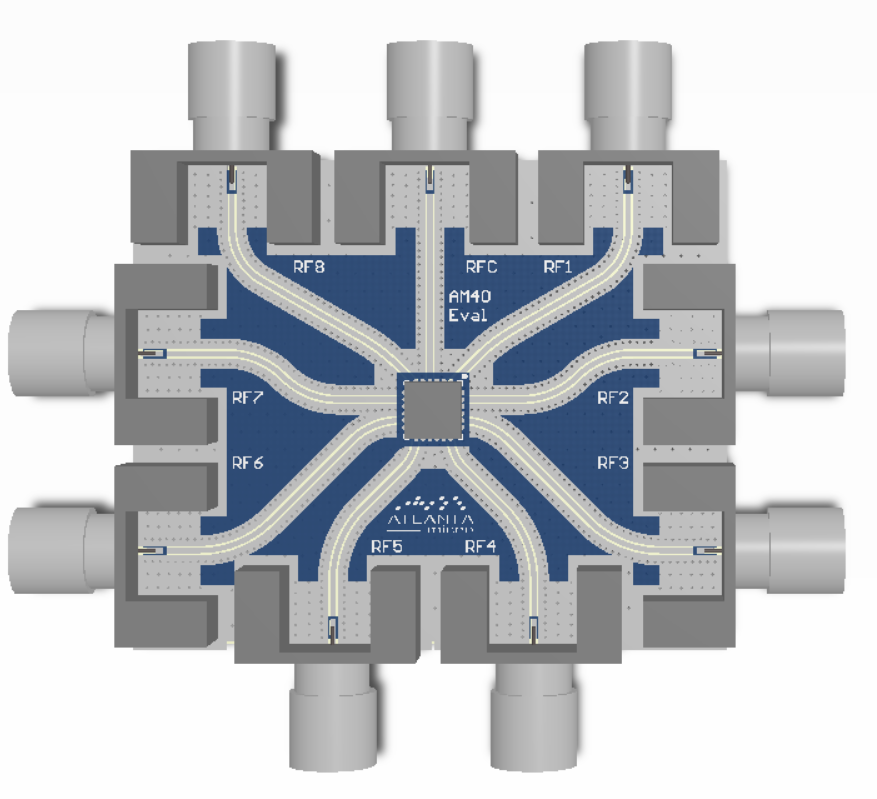

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM4026.
DC - 30
Frequency (GHz)
21
Insertion Loss (dB)
30
Isolation (dB)
