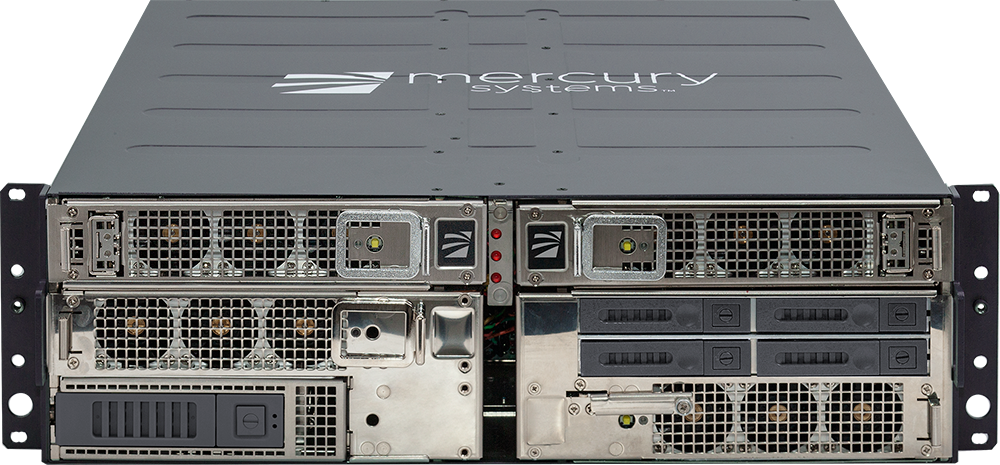

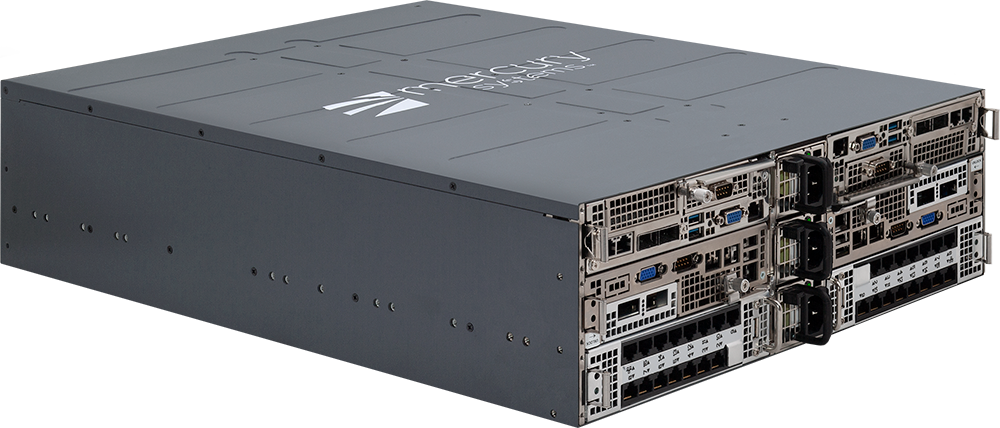

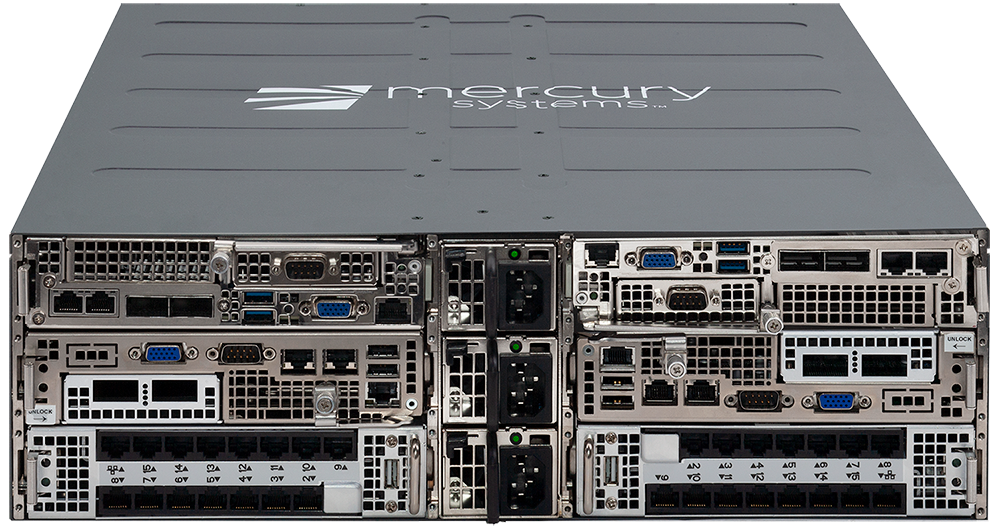

3U Rugged Blade Chassis

Modular, rugged 3U server chassis fits up to six server blades to deliver dense computing in a compact footprint

  • slide
  • slide
  • slide
  • slide

Cost-Effective, High-Density Computing with Six Server Blades

Our field-proven, 3U chassis has a 15-year lifespan and features six slots that fit previous, current and next generation blades so you can densely pack and scale technology with your application while reducing your total cost of ownership.

 DOWNLOAD 3U RUGGED BLADE CHASSIS DATASHEET

Specifications

19” Rackmountable

Height: 5.25 inches (133.35 mm)
Width: 17 inches (432 mm)
Depth: 20 inches (508 mm)
Chassis Weight: ~24.5 lb. (11.1 kg) with power supplies

Additional Options

  • Shock pins
  • Front door filter
  • Slide rails

Power Supply Options

  • Single or redundant 100/240V VAC (1200W, 50/60Hz, 400Hz)
  • Single or redundant 10–36 VDC, 32 Amps
  • Single or redundant 36–72 VDC, 18 Amps
Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 8% to 95%
  • Shock: 3 axis, 35 g, 25 ms
  • Vibration (10-2000Hz): 4.76 Grms, 5 Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95%

Reliability

  • Safety: EN60950
  • RFI/EMI: EN 55032, EN 55024, EN 61000
  • MIL-STD 810G

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.

Mobile Carry Case and Other Options

18-30" Slide Rail and Shock Pin Kit
Rugged Transit Case

  • Height: 12 inches
  • Length: 34 inches
  • Width: 24 inches
  • Material: Polycarbonate
  • Features: Detachable front/rear lids, handles and wheels

Maximize Investment with Inherent Interoperability

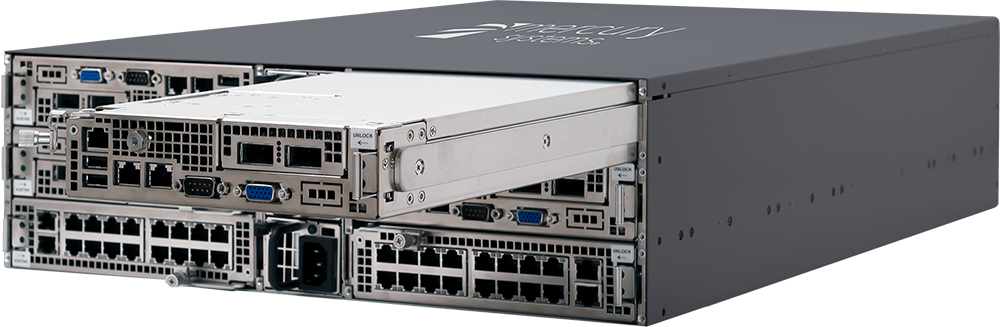

A part of Mercury’s flagship RES HD blade server platform, our 3U blade chassis is fully interoperable with Mercury’s other blade servers so you can “pull” blades from one chassis and “plug” into another to simplify transport, streamline deployment and maximize investment.



Cost-Effective and Scalable

Our capability-dense "plug-and-pull" blades can be combined, configured and repurposed in multiple chassis to deliver cost savings, keep pace with growing edge workloads and drastically reduce your overall server footprint.

SEE COMPLETE BLADE OFFERING

Key Features and Example Configurations

  • Extended 15-year lifespan
  • 6 blade slots that fit XR5, XR6 and networking blades
  • 20" deep, front or rear I/O
  • High availability and connectivity with redundant and flexible AC/DC power
  • Portable with Rugged Transit Case option
  • MIL-STD 810G

Fully Configurable to Your Unique Workload
