Direct RF DRF4581L Small-Form Factor Subsystem

Wideband Direct RF data conversion and processing with Agilex 9 in a very small footprint

The DRF4581L is a rugged, very small-form factor module based on Intel's Agilex™ 9 SoC FPGA Direct RF-Series. It integrates four 64 GSPS A/D and D/A converters, and 16 GB DDR4 memory, on-board clock generation and a modular, customizable RF interface to bring multichannel data conversion and processing capabilities to radar, EW, and other edge applications. The module measures in at just 1” high and 2.8” wide allowing it to address SWaP constrained applications. Out-of-the-box software development tools and board support packages allow system architects and designers to configure DSP modules and port across platforms faster.

ASK A QUESTION

DRF4581L ISO Front.png

Multichannel Data Conversion and Processing

64 Gsps

4 channel ADC/DACs

16 GBytes

DDR4

1.0" x 2.8" x 6.4"

rugged form factor

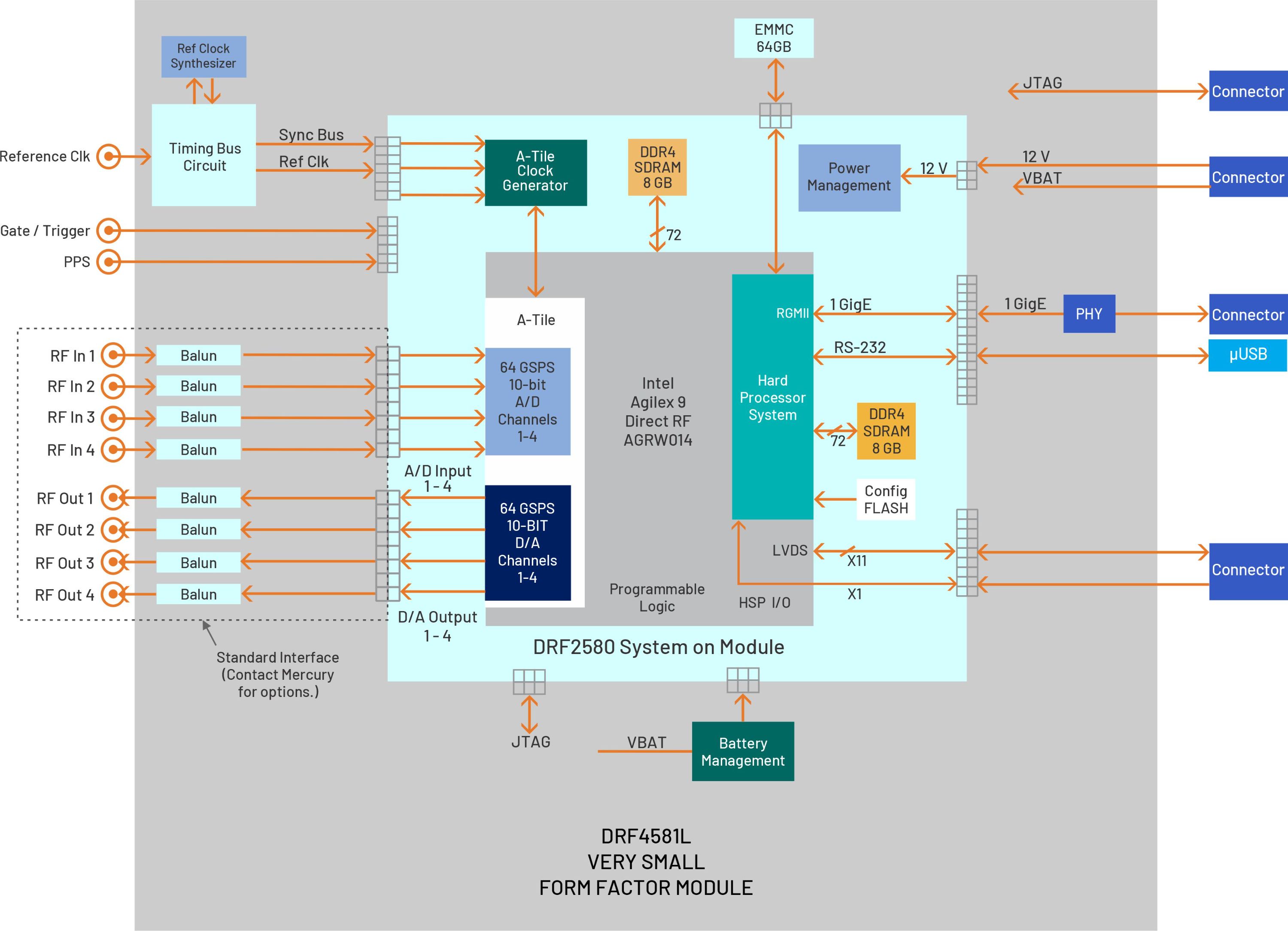

Block Diagram

Features Specifications Resources

Features

1.0" x 2.8" x 6.4" form factor
Intel Agilex 9 Direct RF AGRW014 hi-fidelity performance
Four 64 GSPS A/D and D/A converters - wideband and medium band
16 GB of DDR4 SDRAM
1 GigE Interface
Ruggedized and conduction-cooled
Unique system-on-module design to enable quick migration to/from other form factors
Navigator MA Board Support Package (BSP) for faster software development
Navigator MA FPGA Design Kit (FDK) to configure DSP modules, configure custom IP, and port across platforms

REQUEST A QUOTE

Specifications

Intel Agilex 9 SoC Field Programmable Gate Array

AGRW014

Agilex 9 RF Signal Chain

4 Analog Inputs: input type: transformer-coupled
4 A/D Converters: sampling rate: 64 GSPS, resolution: 10 bits
4 Analog Outputs: output type: transformer-coupled
4 D/A Converters: sampling rate: 64 GSPS, resolution: 10 bits
Reference Clock: source switchable between onboard synthesizer, and external source
Gate/Trigger: programmable through software or external source, level: LVCMOS

Hard Processing System
