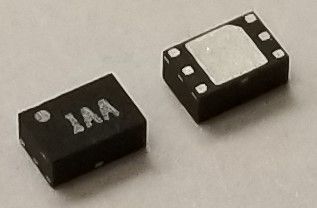

AM1063-2
DC to 10 GHz Miniature Gain Block
Function:
Amplifier
Package:
1.3 x 2.0mm DFN ECCN:
EAR99 The AM1063-2 is a high dynamic range DC-coupled amplifier covering up to 10 GHz.
The device exhibits a low noise figure and high third order intercept performance while also providing a flat gain response and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 1.3 by 2.0mm DFN, the AM1063-2 represents a compact total PCB footprint.
DC - 10
Frequency (GHz)
15
Gain (dB)
2.5
NF (dB)
30
OIP3 (dBm)
