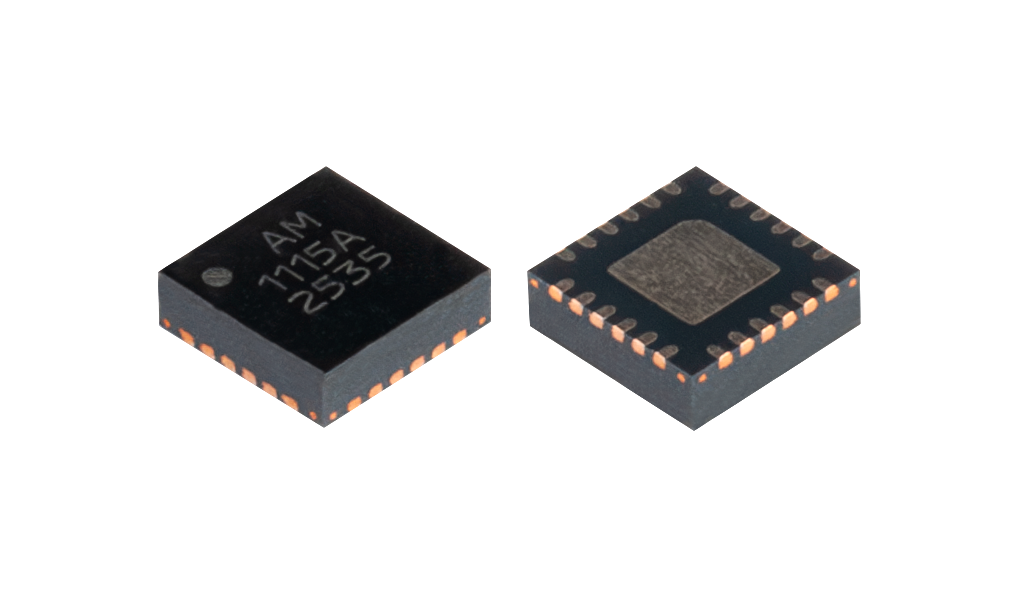

AM1115A
2 to 18 GHz Gain Block / Step Attenuator
Function:
Amplifier
Package:
4mm QFN ECCN:
EAR99 AM1115A is a broadband MCM combining a digital step attenuator and a low noise amplifier covering the 2 to 18 GHz frequency range.

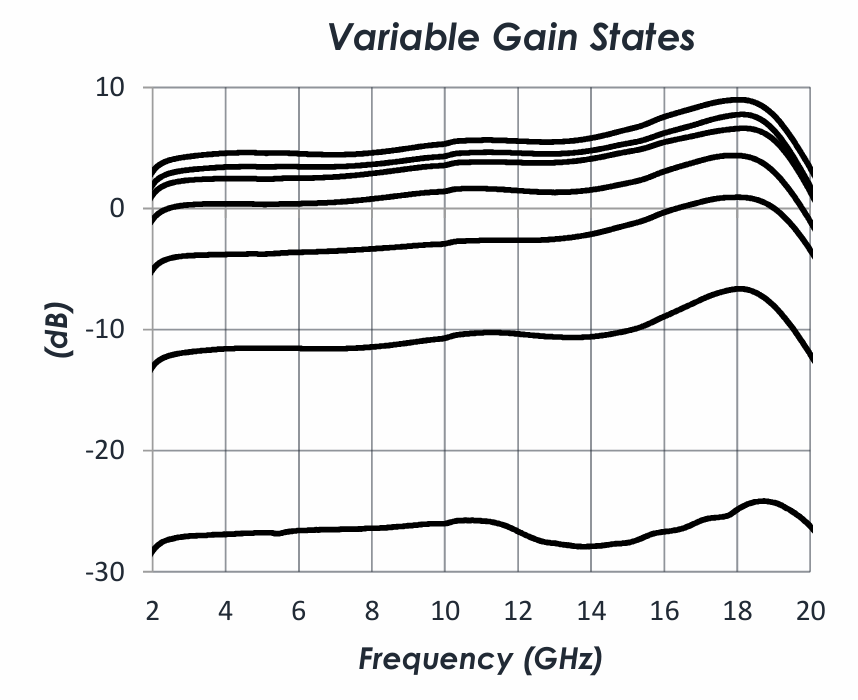

The device offers 31dB of gain control varying from 5.5dB of gain to -25.5 dB of insertion loss over the full range. The AM1115A exhibits a gradual positive gain slope which makes it an ideal solution for controlling gain and gain slope of an RF system. Packaged in a small 4mm QFN, the AM1115A is an enabler for low SWaP applications due to its dramatic size reduction compared to a discrete implementation of a variable gain block and equalizer, saving valuable board space and BOM costs.
2 - 20
Frequency (GHz)
4mm
Package
31 dB
Gain Control
25.6
OIP3 (dBm)
