AM1178-D
18 to 44 GHz Driver Amplifier
Function:
Amplifier
Package:
Bare Die ECCN:
3A001.b.2.d AM1178-D is a wideband, cascadable amplifier servicing the 18 to 44 GHz frequency range.

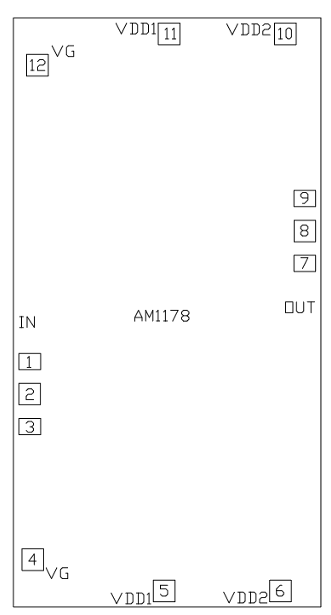

The device exhibits a high P1dB and OIP3 across its full bandwidth, making it an excellent choice for a medium-power driver amplifier for mmWave and Ka band applications. Available as bare die in a 1.42mm x 2.72mm footprint with internal 50ohm matching, the AM1178-D provides a compact solution for high linearity requirements.
AM1178-D is available only in Gel-Paks of QTY 25.
15
Gain (dB)
18-44
Frequency Range (GHz)
+25
P1dB (dB)
+35
OIP3 (dBm)
