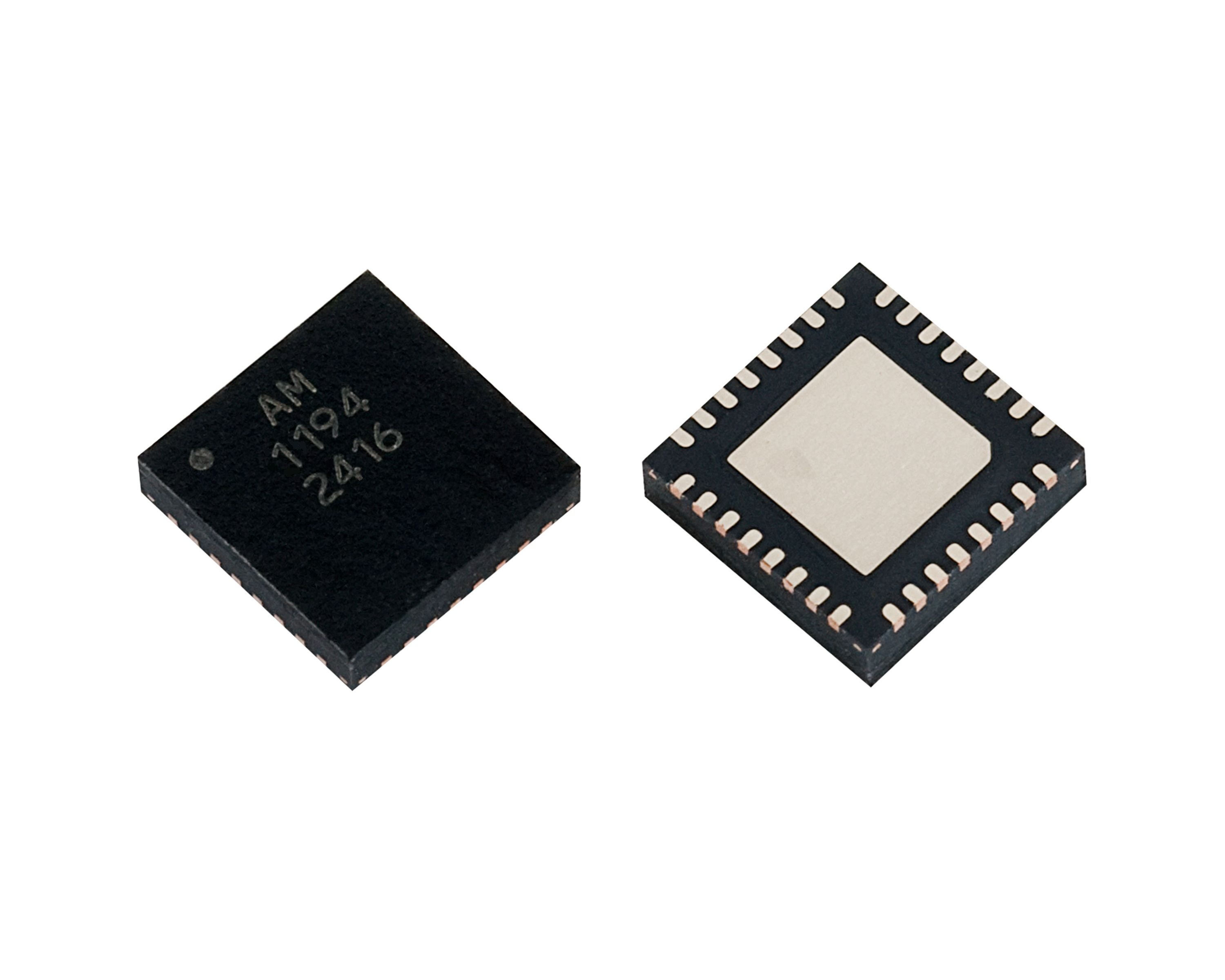

AM1194 – DC to 28 GHz Broadband Medium Power Amplifier

DC to 28 GHz Broadband Medium Power Amplifier

AM1194 is a broadband medium power amplifier providing excellent gain flatness, input and output match, and saturated power output over the DC to 28 GHz frequency range. The device exhibits high linearity above 35dBm OIP3, as well as providing a high power output greater than 27dBm. Packaged in a 5mm QFN, the AM1194 is an ideal choice for demanding test equipment, communication, and military applications.

ECCN/USML: EAR99

ASK A QUESTION

0 - 28

Frequency (GHz)

11.4

Gain (dB)

4.2

NF (dB)

35.5

OIP3 (dBm)

Features Specifications Resources

Features

11.4 dB gain
4.2 dB Noise Figure
35.5 dBm OIP3
+10v Supply
Package: 5mm

REQUEST A QUOTE

Specifications

Freq Low (GHz): 0
Freq High (GHz): 28
Gain (dB): 11.4
NF (dB): 4.2
OIP3 (dBm): 35.5
Supply (+V): 10
Supply (mA): 250
Package: 5 mm QFN

DOWNLOAD DATASHEET

Resources

AM1194 Resources

Products formerly Atlanta Microwave

Purpose-Built MMIC Components

Enable Portable Platforms

Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
