AM3263
Analog Tunable 90.0 to 167.0 MHz Highpass
Function:
Filter Bank
Package:
4mm QFN ECCN:

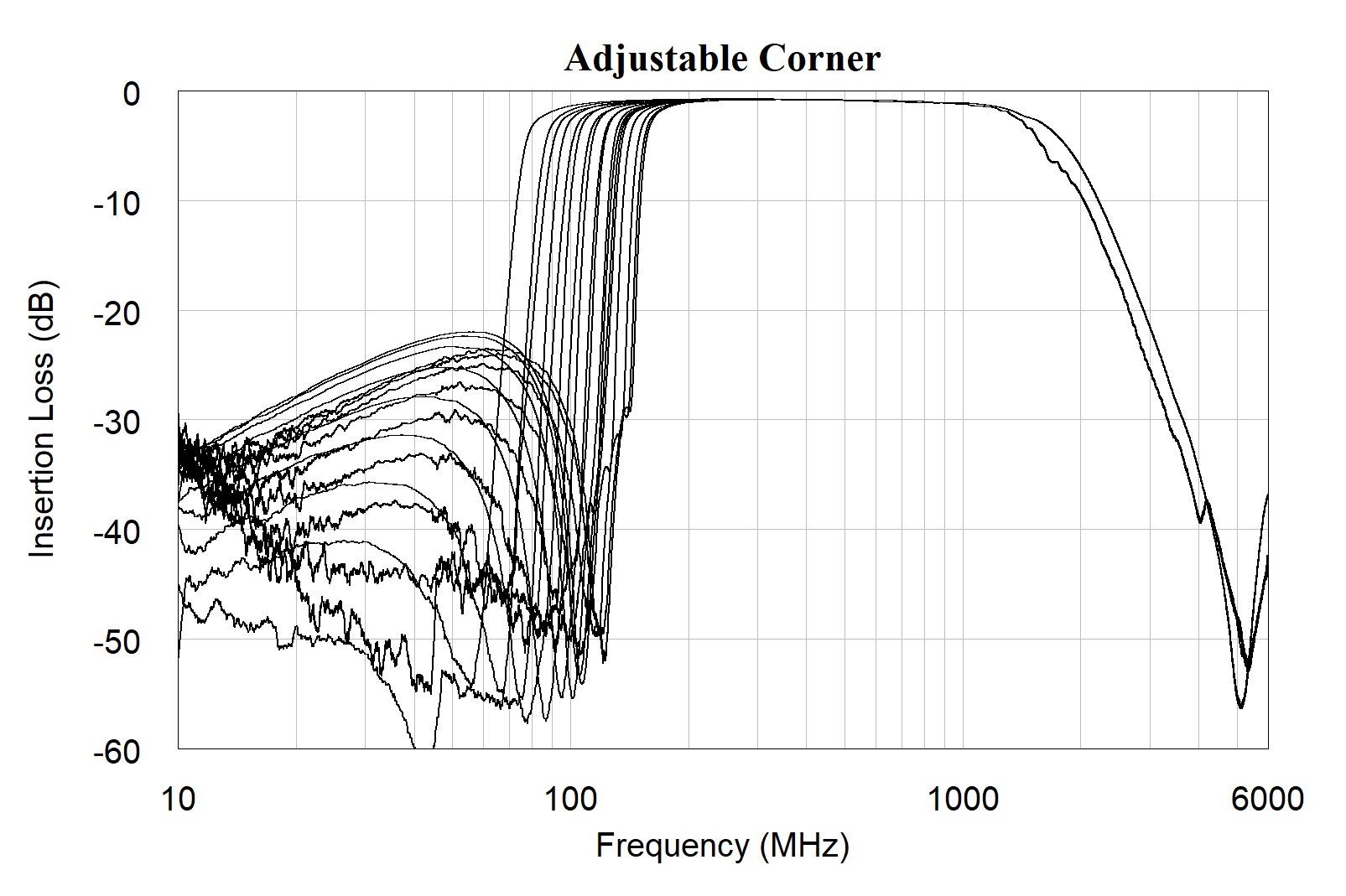

EAR99 AM3263 is an analog voltage-tuned high pass filter with an adjustable corner between 90 and 167 MHz.

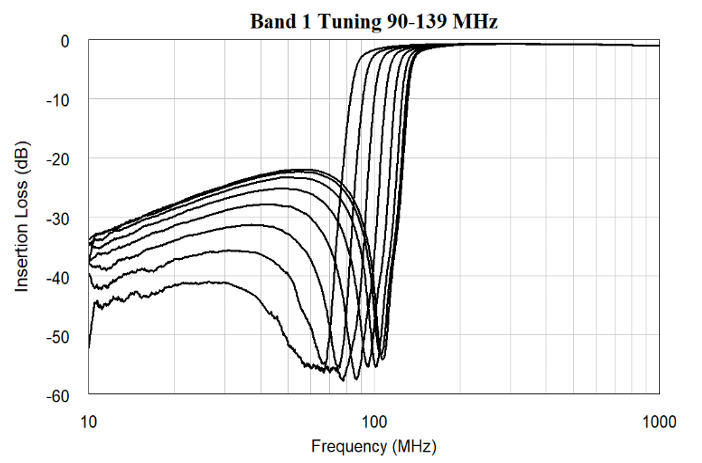

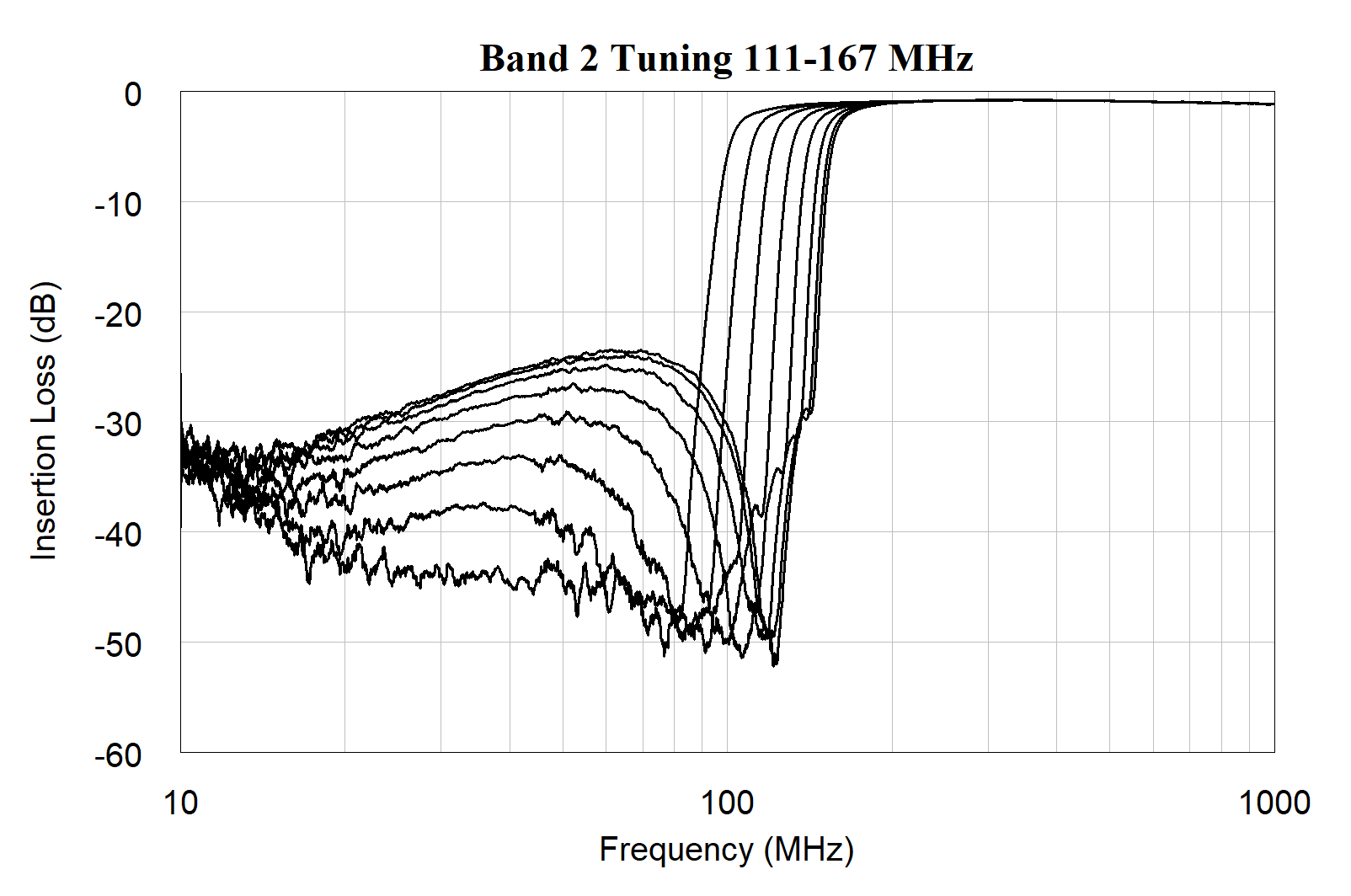

The low band has a variable corner frequency between 90 and 139 MHz, and the high band has a variable corner frequency between 111 and 167 MHz. The device exhibits a wide operational bandwidth with the passband extending up to 1.6 GHz. The AM3263 can be combined with one of Mercury’s analog tunable lowpass filters - AM3264, AM3266, or AM3268 - provide a flexible bandpass filter solution.
1
Insertion Loss (dB)
25
Typical Rejection (dB)
4mm
Package
