AM3264
Analog Tunable 103.0 to 191.0 MHz Lowpass
Function:
Filter Bank
Package:
4mm QFN ECCN:
EAR99 AM3264 is an analog voltage-tuned low pass filter with an adjustable corner between 103.0 and 191.0 MHz.

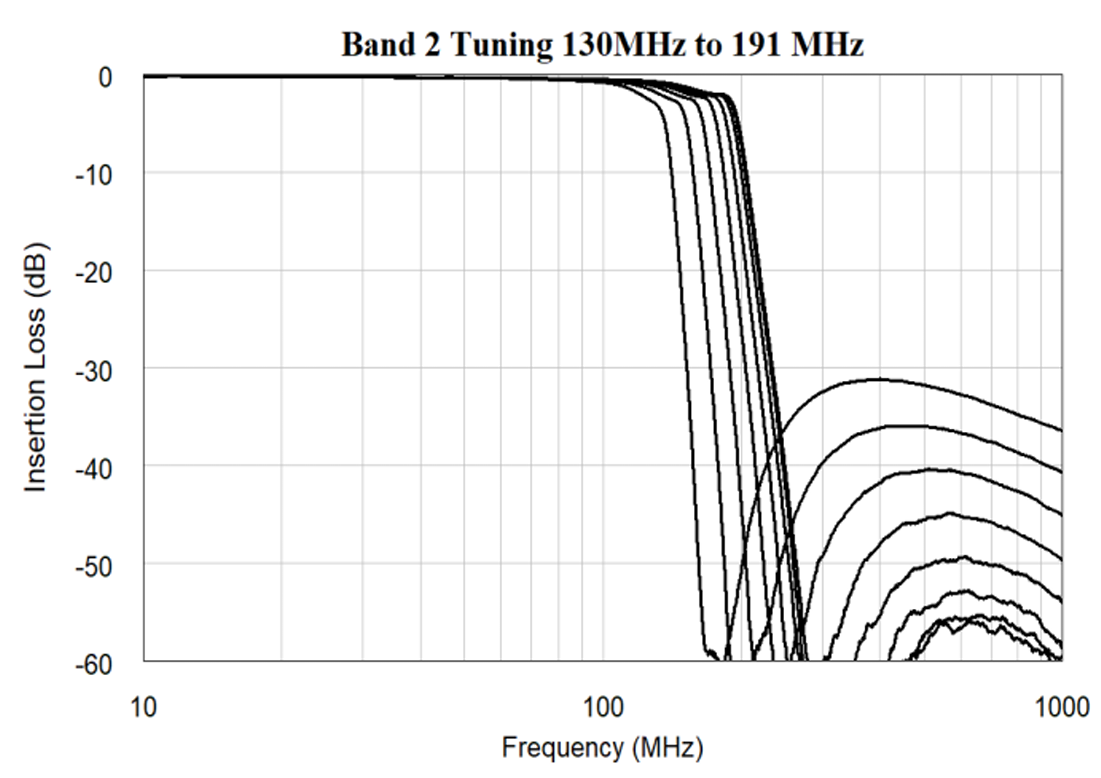

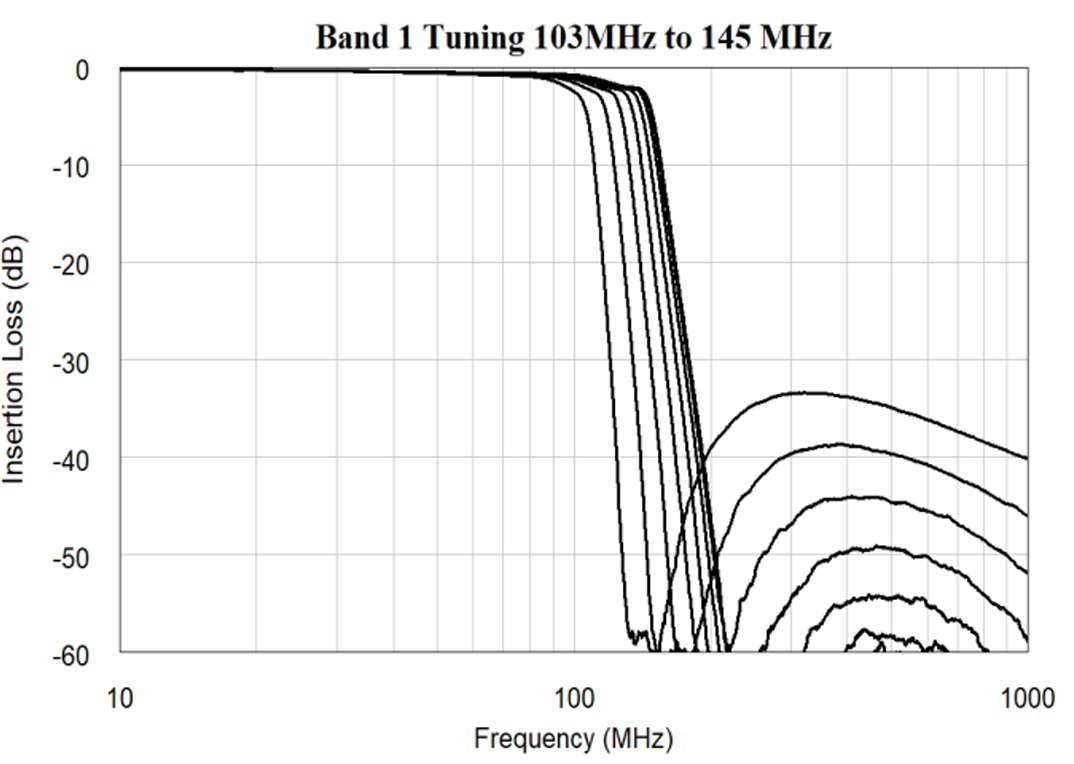

The low band has a variable corner frequency between 103 and 145 MHz, and the high band has a variable corner frequency between 130 and 191 MHz. The AM3264 can be combined with one of Mercury’s analog tunable highpass filters - AM3263, AM3265, or AM3267 – to provide a flexible and reconfigurable bandpass filter solution.
0.75
Insertion Loss (dB)
30
Typical Rejection (dB)
4mm
Package
