AM3265
Analog Tunable 159.0 to 299.0 MHz Highpass
Function:
Filter Bank

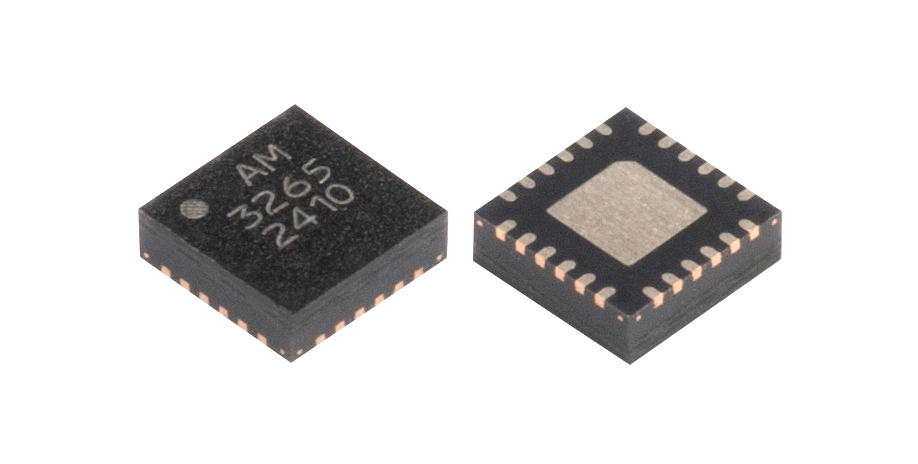

Package:
4mm QFN ECCN:

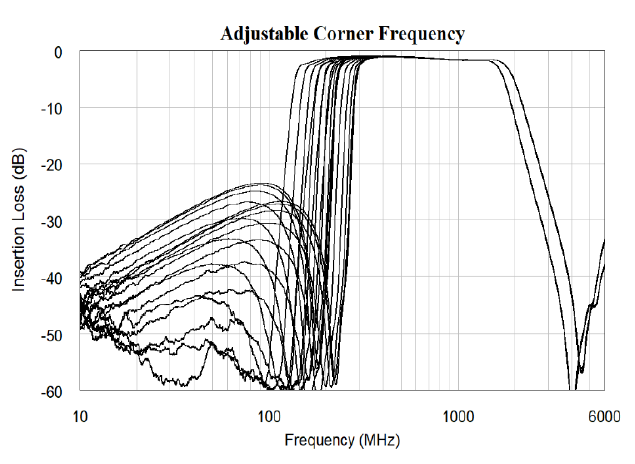

EAR99 AM3265 is an analog voltage-tuned high pass filter with an adjustable corner between 159.0 and 299.0 MHz.

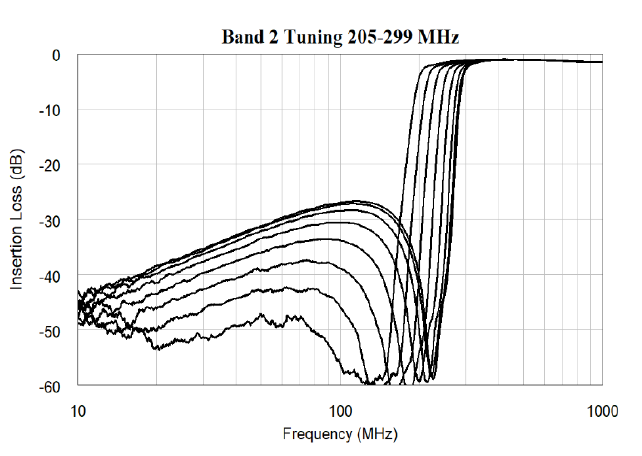

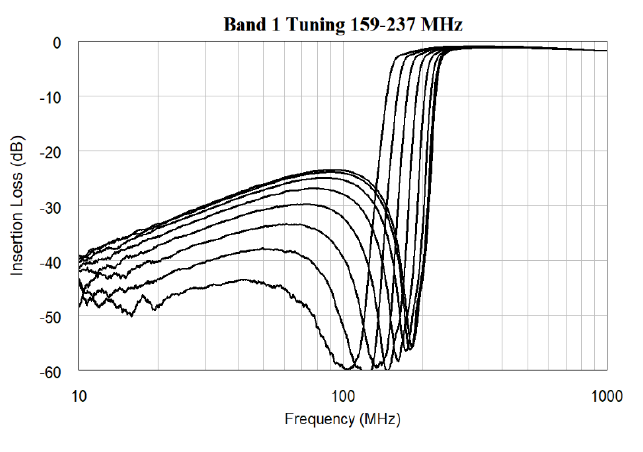

The low band has a variable corner frequency between 159 and 237 MHz, and the high band has a variable corner frequency between 205 and 299 MHz. The device exhibits a wide operational bandwidth with the passband extending up to 1.8 GHz. The AM3265 can be combined with one of Mercury’s analog tunable lowpass filters - AM3264, AM3266, or AM3268 - provide a flexible bandpass filter solution.
1
Insertion Loss (dB)
25
Typical Rejection (dB)
4mm
Package
