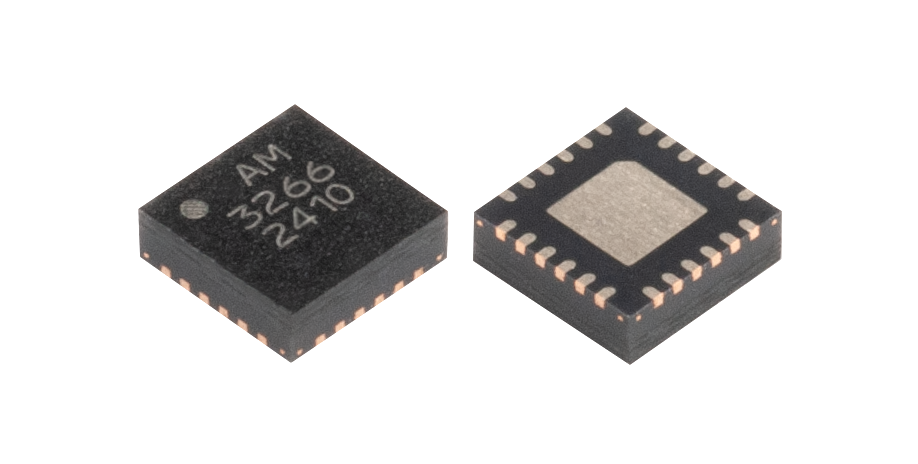

Analog Tunable 177 MHz to 344 MHz Lowpass MMIC Filter

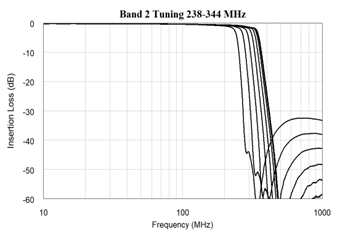

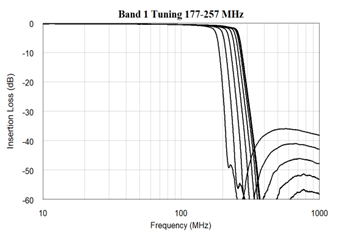

AM3266 is a dual band analog voltage-tuned lowpass filter with an adjustable corner frequency between 177 and 344 MHz. The low band has a variable corner frequency between 177 and 257 MHz, and the high band has a variable corner frequency between 238 and 344 MHz. The AM3266 can be combined with one of Mercury’s analog tunable highpass filters - AM3263, AM3265, or AM3267 – to provide a flexible and reconfigurable bandpass filter solution.
0.75
Insertion Loss (dB)
30
Typical Rejection (dB)
4mm
Package
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
