AM3267
Analog Tunable 269.0 to 486.0 MHz Highpass
Function:
Filter Bank
Package:
4mm QFN ECCN:

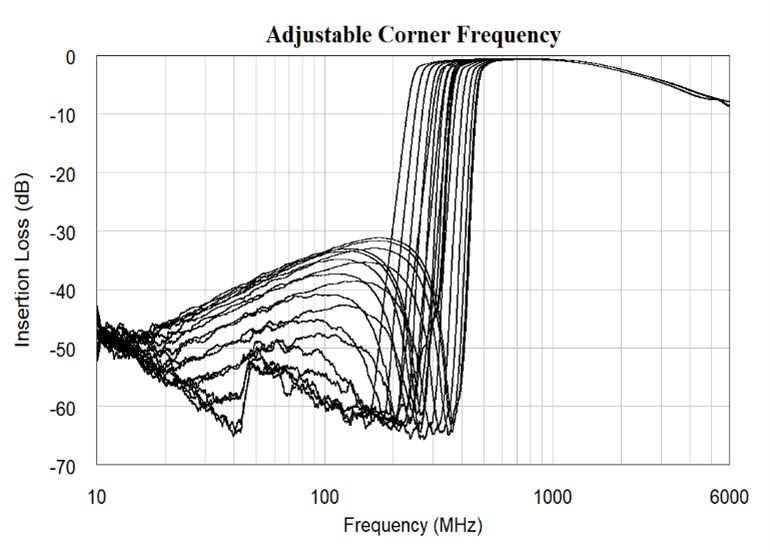

EAR99 AM3267 is an analog voltage-tuned high pass filter with an adjustable corner between 269 and 486 MHz.

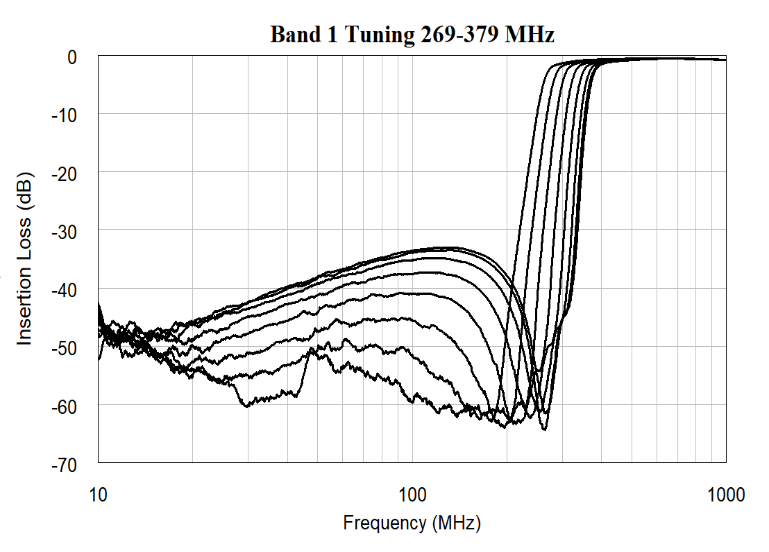

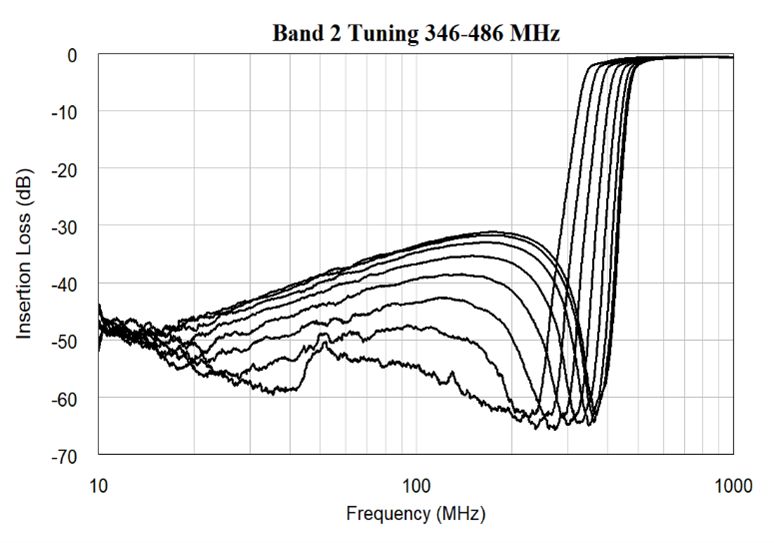

The low band has a variable corner frequency between 269 and 379 MHz, and the high band has a variable corner frequency between 346 and 486 MHz. The device exhibits a wide operational bandwidth with the passband extending up to 1.8 GHz. The AM3267 can be combined with one of Mercury’s tunable lowpass filters - AM3264, AM3266, or AM3268 - to provide a flexible bandpass filter solution.
1
Insertion Loss (dB)
25
Typical Rejection (dB)

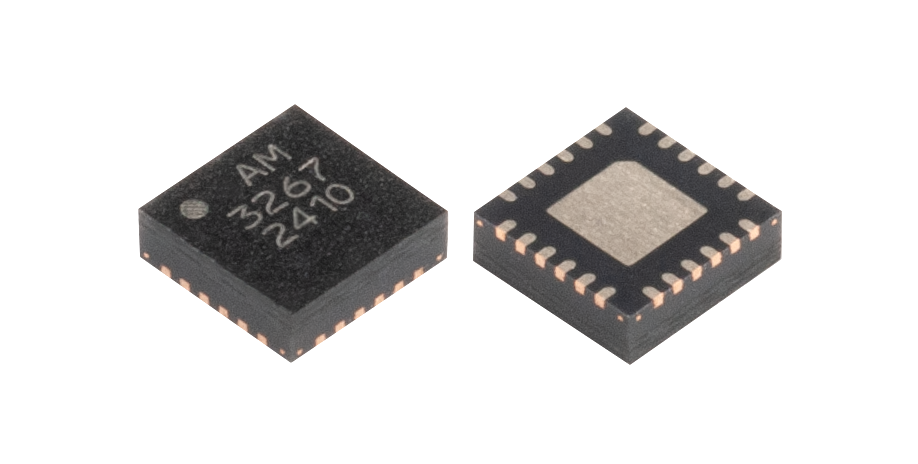

4mm
Package
