AM3268
Analog Tunable 288.0 to 578.0 MHz Lowpass
Function:
Filter Bank
Package:
4mm QFN ECCN:
EAR99 AM3268 is an analog voltage-tuned low pass filter with an adjustable corner between 288 and 578 MHz.

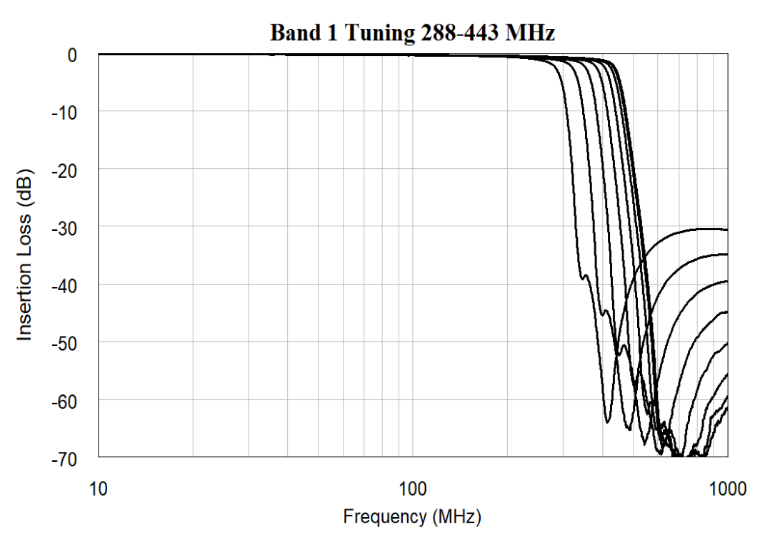

The low band has a variable corner frequency between 288 and 443 MHz, and the high band has a variable corner frequency between 381 and 578 MHz. The AM3268 can be combined with one of Mercury’s analog tunable highpass filters - AM3263, AM3265, or AM3267 – to provide a flexible and reconfigurable bandpass filter solution.
0.45
Insertion Loss (dB)
32
Typical Rejection (dB)
4mm
Package
