2 GHz to 24 GHz Double Balanced Mixer

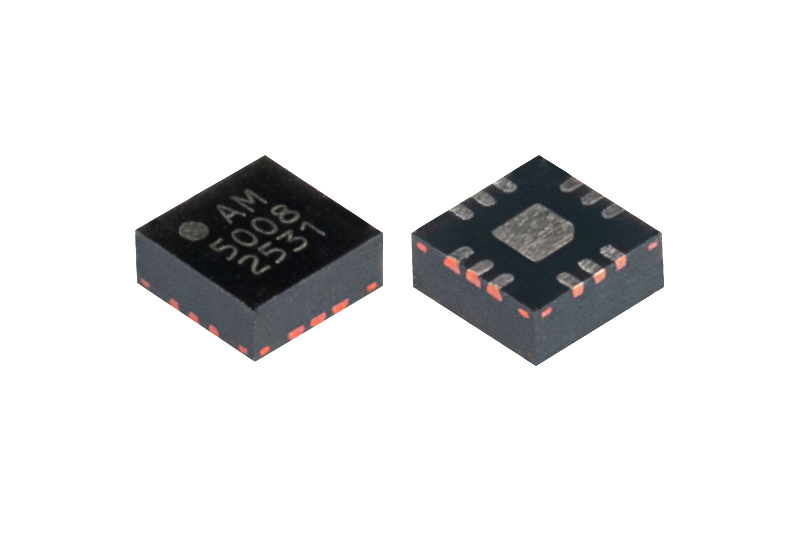

AM5008 is an ultra-wideband, double balanced mixer servicing the 2 to 24 GHz frequency range. The device delivers low conversion loss and high linearity and is packaged in a small 3mm QFN which makes it an ideal solution for frequency conversion in demanding, low SWaP RF and microwave systems. Mercury recommends pairing the AM5008 with the AM1136 Driver Amplifier to drive the LO input of the mixer.
ECCN/USML: EAR99
8.5 dB
Conversion Loss

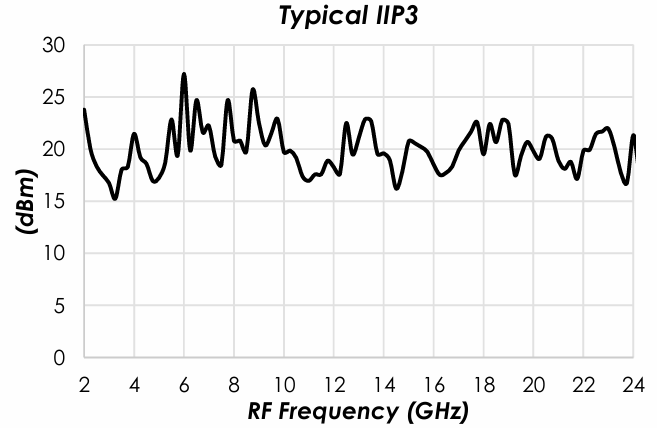

18 dBm
IIP3
3mm
Package
