Mission Computing & Avionics

Mission-Critical Displays

Mission-critical displays are engineered to deliver unparalleled performance across multiple domains, in the most extreme environments. Found in the world’s most prestigious cockpits and instrument panels, our display head assemblies (DHA) are designed with highly specialized active matrix liquid crystal displays (AMLCD) to address the mission critical needs of military vehicles (vetronics) and military and commercial aircraft (avionics).

Featured Product

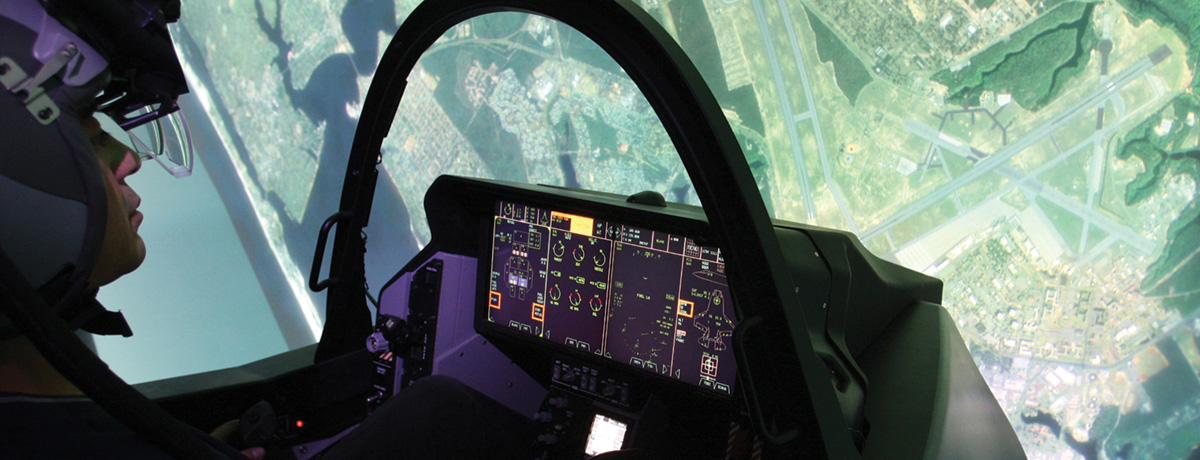

LAD 2150

21.5" large area display capable of 1.3 billion colors and 1024 gray shades (10-bit)

  • Function: Mission-critical display
  • Image Diagonal: 21.5"
  • Resolution: 2560x1024
  • Aspect Ratio: 5:4x2
  • Gray Scale: 10 bit
  • Options: BuiltSAFE™, highest DAL, trusted manufacture





Model Sortable column, activate to sort column ascending Image Diagonal Sortable column, activate to sort column ascending Case Size Sortable column, activate to sort column ascending Active Image Size Sortable column, activate to sort column ascending Aspect Ratio Sortable column, activate to sort column ascending Image Resolution Sortable column, activate to sort column ascending Grayscale Sortable column, activate to sort column ascending CGPI Sortable column, activate to sort column ascending Type Sortable column, activate to sort column ascending
1540 15.4" 9.10" x 14.01" 8.15" x 13.04" 4:3 1920x1200 10 bit 128 Standard
1210 12.1" 11" x 8.5" 9.64" x 7.30" 4:3 1360x1024 8 bit 141.1 Standard
890 8.9" 7.25" x 7.25" 6.27" x 6.27" 1:1 780x780 8 bit 124.5 Standard
1000 10.0" 9.0" x 7.0" 8.0" x 6.0" 4:3 1024x768 10 bit 128 Standard
1060 10.6" 10.5" x 6.5" 9.24" x 5.2" 16:9 1280x720 10 bit 138.5 Standard
340 3.4" 3ATI 2.41" x 2.41" 1:1 300x300 8 bit 124.5 Standard
1040 10.4" 9.3" x 7.2" 8.28" x 6.21" 4:3 1024x768 8 bit 128 Standard
2150 21.5" 21.5" x 9.0" 20.0" x 8.0" 5:4x2 1280x1024 x2 10 bit 128 Standard
600 6.0" 5ATI 4.21" x 4.21" 1:1 524x524 8 bit 124.5 Standard
710 7.1" 6ATI 5.03" x 5.03" 1:1 600x600 8 bit 119.2 Standard
640 6.4" 6 x 5ATI 5.14" x 3.86" 4:3 640x480 8 bit 124.5 Standard
710HR 7.1" 6ATI 5.0" x 5.0" 1:1 1280x1280 8 bit 256 Standard

Clear and Bright
See further, with greater clarity, to make a more informed decision

Certified by Design
Standard and custom glass sizes designed for defense and aerospace applications

True 10 Bit
1024 grayscale for unmatched clarity – night vision compatible

Enhanced for Reliability
Proven performance and operation in the most stringent environments.

Trusted Supply Chain
Exclusive partnership, custom design and engineering

Long Life
10-year product and parts availability

Built to Purpose

Every aspect of your application is considered, from the display characteristics (size, resolution, color depth, color saturation, aspect ratios, viewing cone) and mechanical packaging, to the sustainability and longevity requirements.

Our progressive approach with materials and design yields the most advanced, fully functioning displays to enhance situational awareness and precision, all while reducing risk and providing the lowest through-life cost.

Need a custom panel size or other specialized features applied, such as color filters or pixel structures? Tell us what you need.




True 10-Bit Large Area Display

We lead the industry offering the only true 10-bit, dual redundant large area display (LAD). Its high dynamic range of 1024 gray shades is enhanced with  night vision-enabled technology, ensuring you see further, with more clarity, to make a more informed decision sooner.


Selecting Optimal Avionic and Vetronic Displays for Your Application

Selecting the Optimal Display

Improve your operating safety, enhance end-user efficiency, and reduce lifecycle costs by choosing the best display for your application. At first glance, it may seem that all display technology is the same and any liquid crystal display (LCD) is adequate for your program. A closer examination reveals multiple ways an application-specific display can provide operational advantage.

Are you considering the most important factors when selecting your liquid crystal display? Read the Selecting Optimal Avionic and Vetronic Displays for Your Application paper to ensure you are.


Our ability to control the design of every characteristic of the active matrix liquid crystal display ensures you get exactly what your need application needs not just what is available commercially. Below are the patent awards for our unique technologies and processes we employ in our display product development and manufacturing to meet your application's demanding conditions.



Patent Number Title
5,440,324 Backlighting for Liquid Crystal Display
5,451,841 Soft Start of Lamp Filament
5,467,085 Display for Electronic Indicator
5,467,533 Night Vision Inclinometer
5,835,074 Method to Change the Viewing Angle in a Fixed Liquid Crystal Display by Changing the Pre-tilt Angle in the Liquid Crystal  Layer with a Bias Voltage (1998)
5,872,553 High Speed Graphics Fill of Liquid Crystal Display (1999)
5,896,098 Self-Contained Multifunctional LCD Flight Indicator
6,075,472 Synchro-to-Digital Conversion with Windowed Peak Determination (2000)
6,137,471 High Speed Graphics Fill of Liquid Crystal Display (2000)
6,181,070 Method for Cooling a Lamp Backlighting Module of a Liquid Crystal Display
6,203,371 Method and Apparatus for Capping and Grounding an Electrical Connector to Prevent Leakage of Electromagnetic Interference
8,766,994 Method for Reducing Video Image Latency
6,222,469 Synchro-to-Digital Conversion with Windowed Peak Determination (2001)
6,809,746 Visual Display Testing, Optimization, and Harmonization Method and System
