Direct RF — Ready Today for Tomorrow’s Needs
Wide spectrum direct RF digitization powered by Intel® Agilex® 9 SoC FPGA

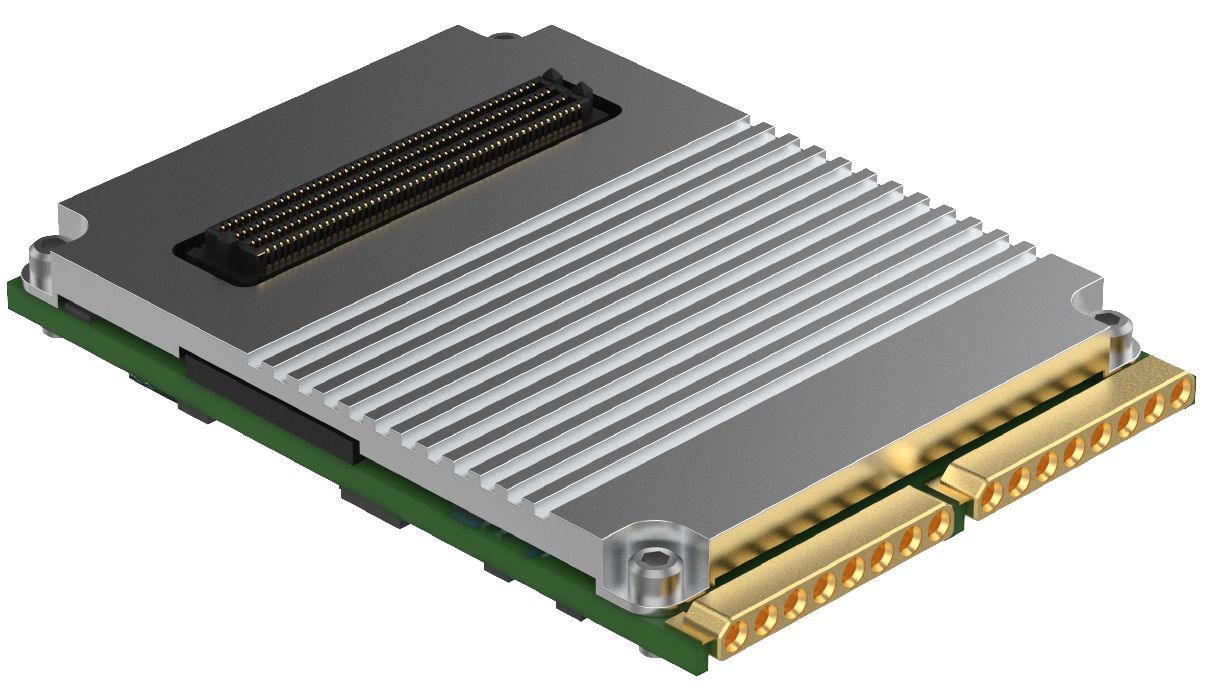

In today’s complex communications environment, EW, radar, and SIGINT applications demand the low-latency, real-time processing that only direct RF solutions deliver. The edge-ready DRF2580 A/D and D/A module enables the direct processing and digitization of broadband signals to accelerate the critical timeline from data to decision. The unique system-on-module approach also enables deployment in a range of form factors including custom, SOSA aligned 3U VPX, PCIe, and small form factor enclosures, for greater application flexibility.
Thank you! We have received your message and will be in touch with you shortly.
Intel-Based Direct RF SoC FPGA
64 GSPS
ADCs and DACs
Up to 32 GHz
Signal Bandwidth
4 CH
A/D and D/A converters
4+
*Form Factors
*SOSA aligned 3U OpenVPX and custom available now; PCIe, SFFs available soon

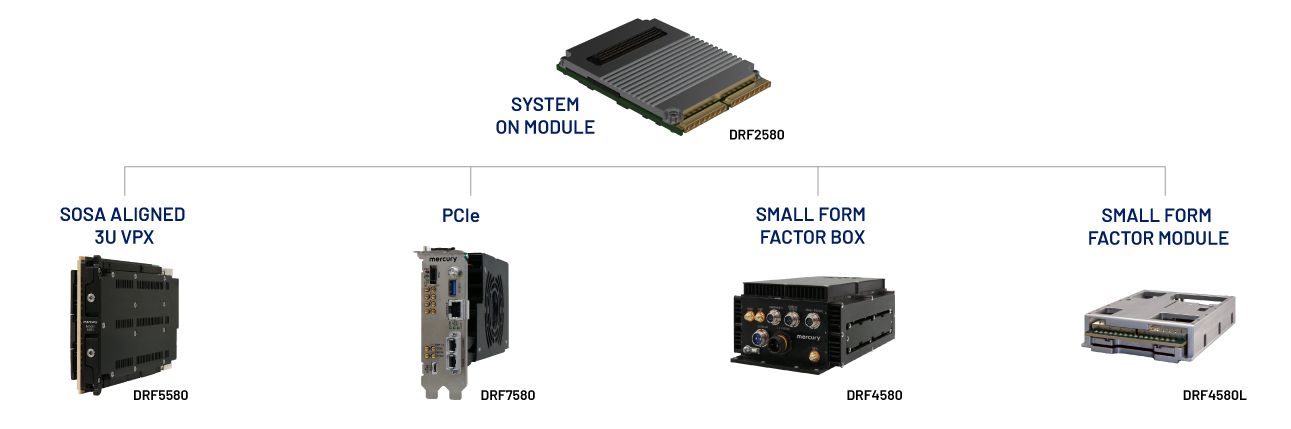

Direct RF SoC FPGA Agilex 9 Portfolio
Direct RF vs. IF: Receive-Application Architecture
| Model | Form Factor | DDC Qty | A/D Qty | A/D Bits | A/D Sample Freq. | Max Input Freq. | DUC Qty | D/A Qty | D/A Bits | D/A Sample Freq. | SOSA | View Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DRF2580 | SOM | 4 | 4 | 10 | 32 GHz | 32 GHz | 4 | 4 | 10 | 32 GHz | ||
| DRF5580 | 3U VPX | 4 | 4 | 10 | 32 GHz | 32 GHz | 4 | 4 | 10 | 32 GHz | Yes | |
| DRF7580 | PCIe | 4 | 4 | 10 | 32 GHz | 32 GHz | 4 | 4 | 10 | 32 GHz | Coming soon | |
| DRF4580 | SFF Box | 4 | 4 | 10 | 32 GHz | 32 GHz | 4 | 4 | 10 | 32 GHz | Coming soon | |
| DRF4580L | SFF Module | 4 | 4 | 10 | 32 GHz | 32 GHz | 4 | 4 | 10 | 32 GHz | Coming soon | |
| 4806 | Carrier Design Kit |
The Undoable is Now Doable
Groundbreaking direct RF technology with wide bandwidth and a low-latency A/D to D/A processing path allows larger portions of the RF spectrum to be efficiently captured, processed, and transmitted expediently at the edge.
