Model 5560 Versal HBM ACAP Coprocessor

Keep up with the latest converter technology at the edge

COTS 3U VPX SOSA aligned coprocessor board fueled by AMD's Versal™ HBM

An innovative combination of HBM (high-bandwidth memory), equally substantial DSP processing engines, high-speed 100 GigE interfaces and the Navigator® design suite means massive data throughput critical for applications in adaptable artificial intelligence and electronic warfare where low latency is required for real-time decision-making.

ASK A QUESTION


High data bandwidth for high computational applications

8x
Memory Bandwidth**
2x
Memory Density*
63%
Lower Power**

*As compared to the Virtex UltraScale+ HBM 5586 Board **As compared to DDR5 memory

Block DiagramNavigator Design Suite

Download Datasheet


Learn More

FeaturesSpecificationsResources
Features
  • AMD Versal HBM ACAP
  • 10 GigE Interface and 40 GigE Interface
  • Optional VITA 67.3C optical interface for backplane gigabit serial communication
  • Up to 4, 100 GigE UDP interfaces
  • Compatible with several VITA standards including: VITA 46, VITA 48.11, VITA 67.3C and VITA 65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled
  • Navigator Design Suite for software and custom IP development
  • Expansion mezzanine interface for data converter or digital I/O boards

REQUEST A QUOTE



Specifications

DOWNLOAD DATASHEET

Adaptive Compute Acceleration
Platform (ACAP)

  • Type: AMD Versal HBM VH1542
  • Adaptable Engines: 3,837k Logic Cells
  • Intelligent Engines: 7,392 DSP slices
  • Scalar Engines: Dual-core ARM Cortex-A72, Dual-core ARM Cortex-R5F
  • HBM DRAM: 16 GBytes
  • Total Block RAM: 89 Mb
  • UltraRAM: 366 Mb

ACAP IO

  • Interface: GPIO, 4 pairs, LVDS
  • Interface: 1, 10, 40 GigE
  • Interface: PCI-Express Gen 1, 2, 3, or 4: x4
  • Interface: Optical, 16 full duplex lanes,26 Gb/sec

Memory

  • ECCM: 64 GBytes
  • SDRAM: DDR4, 8 GBytes
  • Configuration FLASH: 2x 1 Gbit QSPI

Environmental

  • Operating Temp: 0° to 70° C
  • Storage Temp: -50° to 100° C
  • Relative Humidity: 0 to 95%, non-condensing

OpenVPX Compatibility

  • The 5560 is compatible with the VITA 65 OpenVPX Specification:SLT3-PAY-1F1U1S1S1U2F1H-14.6.11-12 module profile.
Resources

Resources

e-book

What's the Big Deal about ACAP Technology?

download now

WHITE PAPER

A Generational Leap in Edge Computing with the Versal ACAP

DOWNLOAD NOW

WHITE PAPER

Designer's Journey: Navigating the Transition to Versal ACAP

DOWNLOAD NOW

RELATED PRODUCTS

Model 5553 SOSA Aligned 8-Channel A/D & D/A 3U VPX Board

Model 5553 SOSA Aligned 8-Channel A/D & D/A 3U VPX Board

SEE MORE

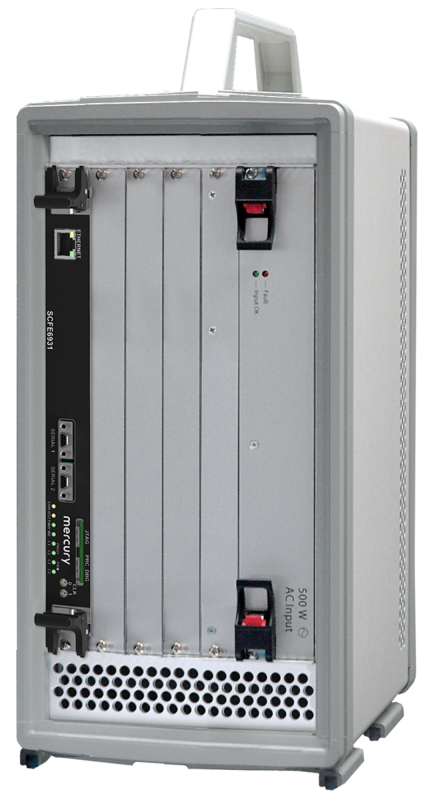

Model 8258 ACAP Development Platform
