AVR8404 Digital Video Recorder

CLICK TO ENLARGE IMAGE

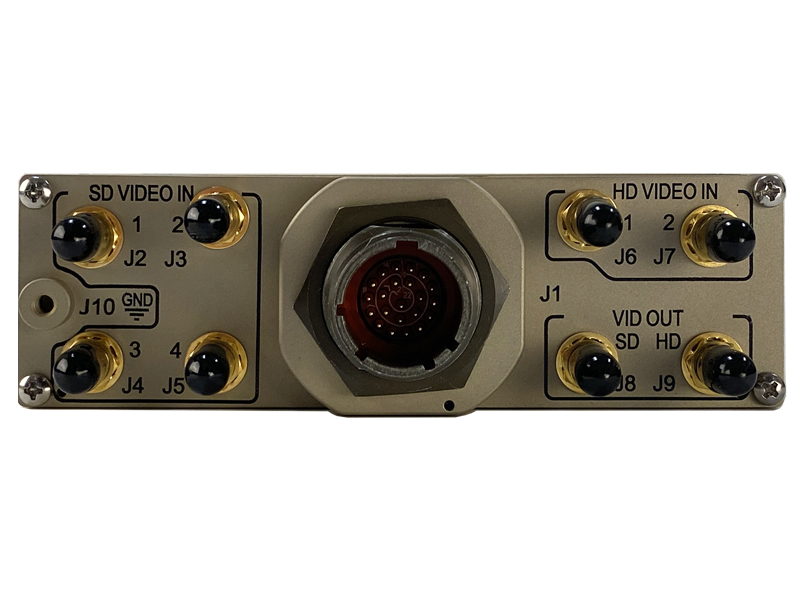

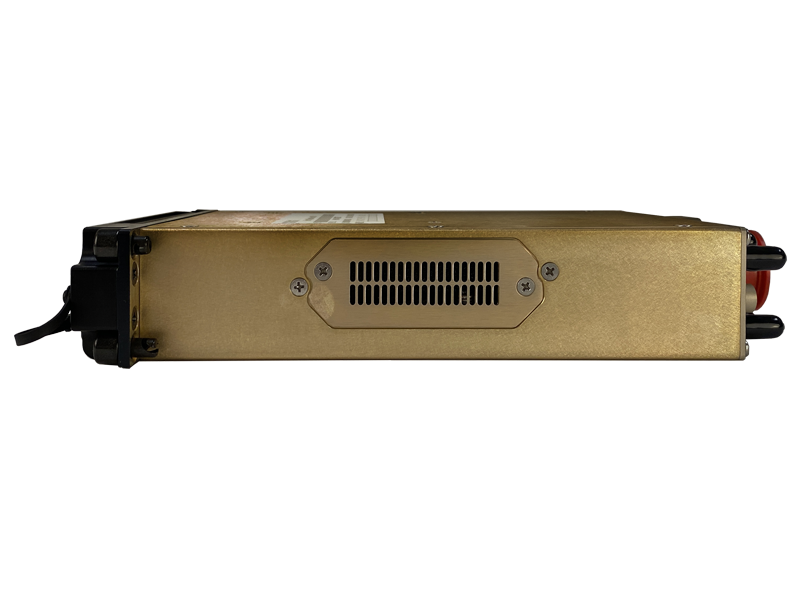

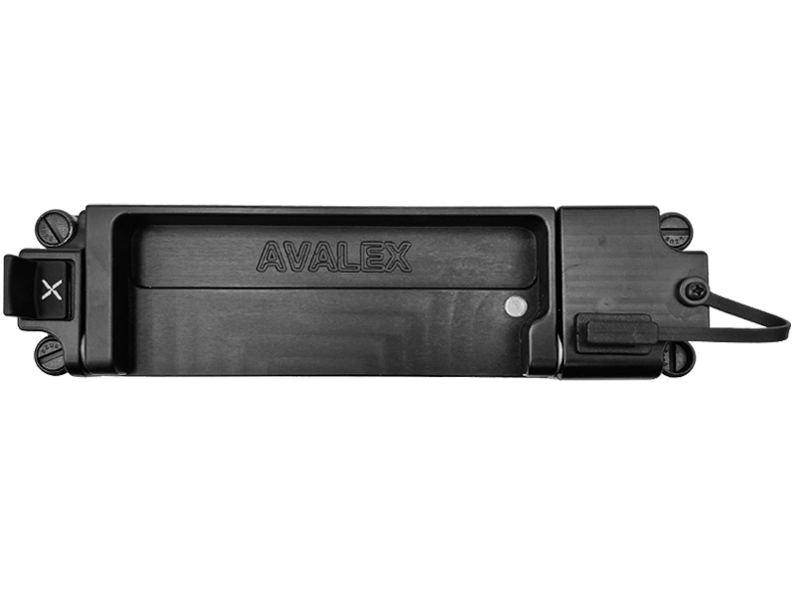

AVR8404 Video Recorder

Expand and customize your mission capabilities with the rugged AVR8404 Video Recorder and Mission Replay Software (AMRS). The AVR8404 is a multi-channel video recorder with high definition (HD), standard definition (SD), Ethernet, CANbus, RS-232 or RS-422, discretes, USB, SD, SSD removable memory, and 54 GB of internal memory. Rugged and built to perform in mobile platforms both in the air and on the ground, the AVR8404 is DO-160F and MIL-STD-810G qualified.

Advanced recording features provide numerous, user-configurable capabilities to support demanding end-user requirements. Play back, analyze, debrief, and process critical mission video and data captured using the included Mercury Mission Replay Software, a media player designed to easily and efficiently handle large amounts of data. The AVR8404 is an ideal choice for platform integrators requiring a flexible video recording solution that can be integrated with other technology to provide remote control or autonomous operations.

View Datasheet

FeaturesSpecifications
Features

AVR8404onscreenoverlay (1).png

AVR8404onscreenoverlay (1).png

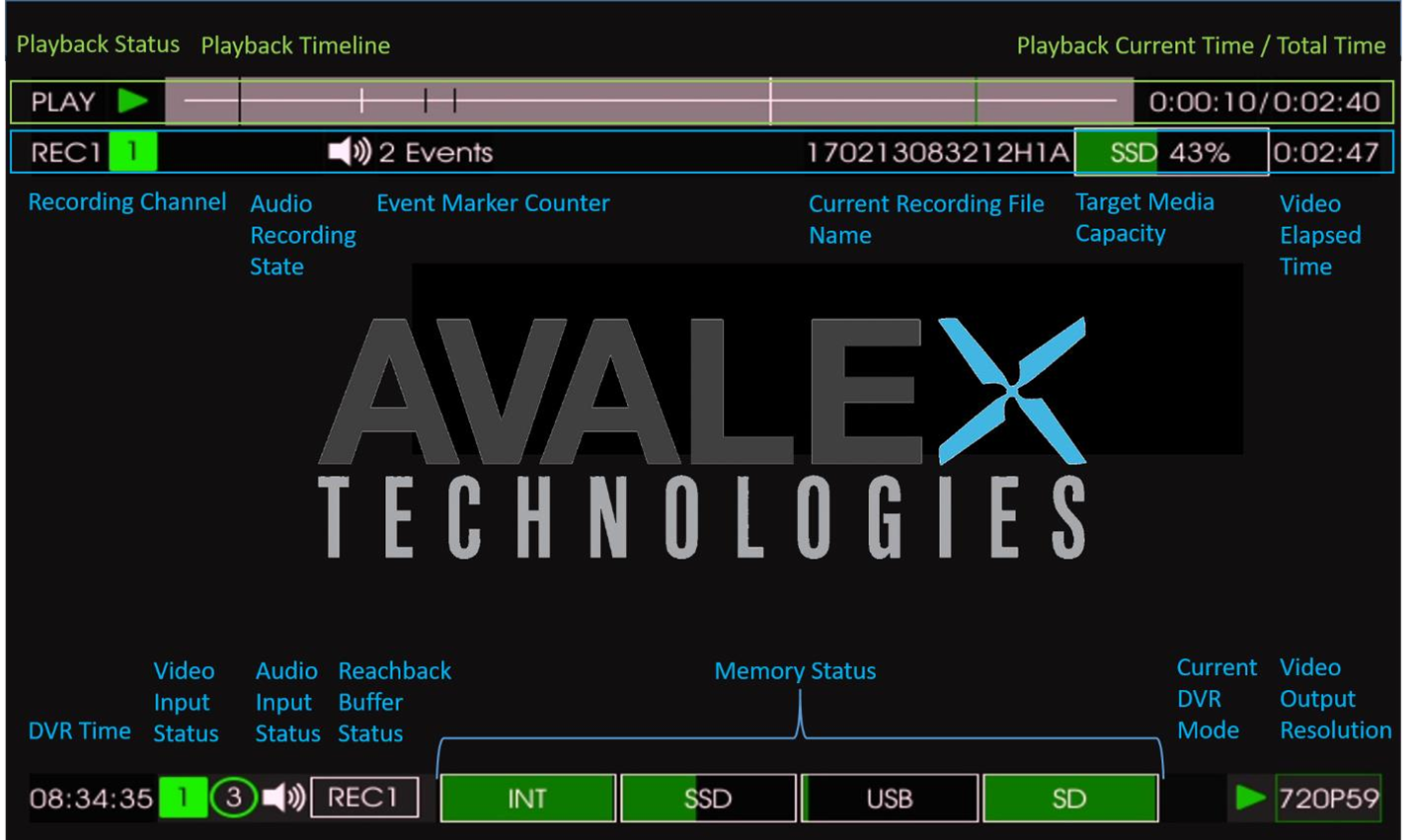

DVR ON-SCREEN DISPLAY (OSD) VIDEO OVERLAYS

The DVR generates multiple horizontal status bars as on-screen overlays. These include a main status bar at the bottom of the display, a recording status bar for each record channel, and a playback status bar.

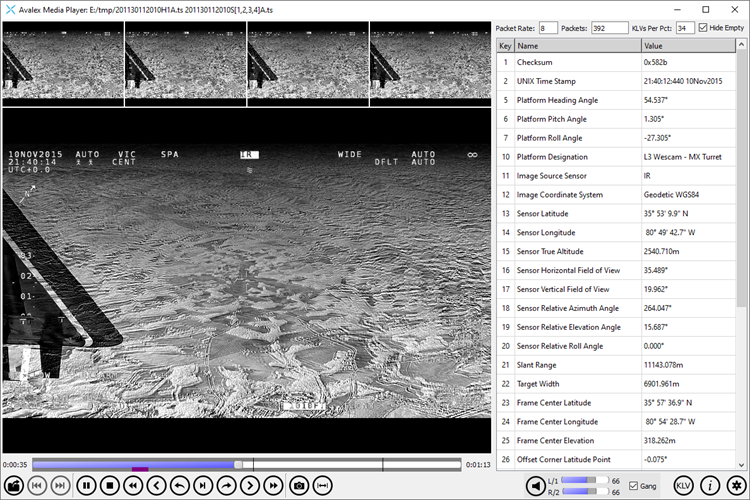

MEDIA PLAYER

Included with the AVR8404, the Media Player provides users the tools to review, mark, and export critical information with ease.

  • Video snapshot
  • Export video clips
  • Thumbnail previews
  • Mute / unmute markers
  • Event markers
  • Volume control and muting
  • Sensor point-of-interest (SPOI)
  • Platform KLV playback
  • Time-synchronized
  • Multi-video playback

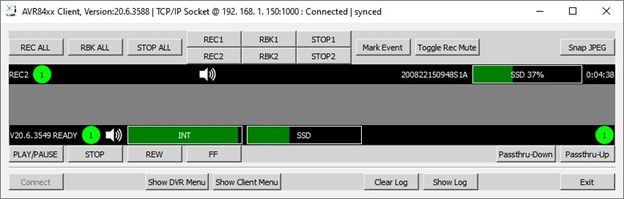

DVR CLIENT

The AVR8404 can be configured and controlled through an Ethernet Transmission Control Protocol/Internet Protocol (TCP/IP) connection using the DVR Client application.



























































Products formerly Avalex
Specifications

Model AVR8404

Width (in)

  • 5.75

Height (in)

  • 1.5

Depth (in)

  • 8.14

Weight (lb)

  • 1.4

Video Resolution Supported

  • 1080i @ 25, 29.97, 30 fps, 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps, 720p @ 25, 29.97, 30, 50, 59.94, 60 fps, NTSC: 720 x 480, PAL: 720 x 576

Data I/O

  • CAN Bus, Discrete In, Discrete Out, Ethernet (10/100 Mbps) 1 port, RS-232 or RS-422

Video I/O

  • HD / SDI, Metadata: KLV Stanag 4609 / MISB, NTSC/PAL (CVBS)

Internal Storage

  • 54 GB

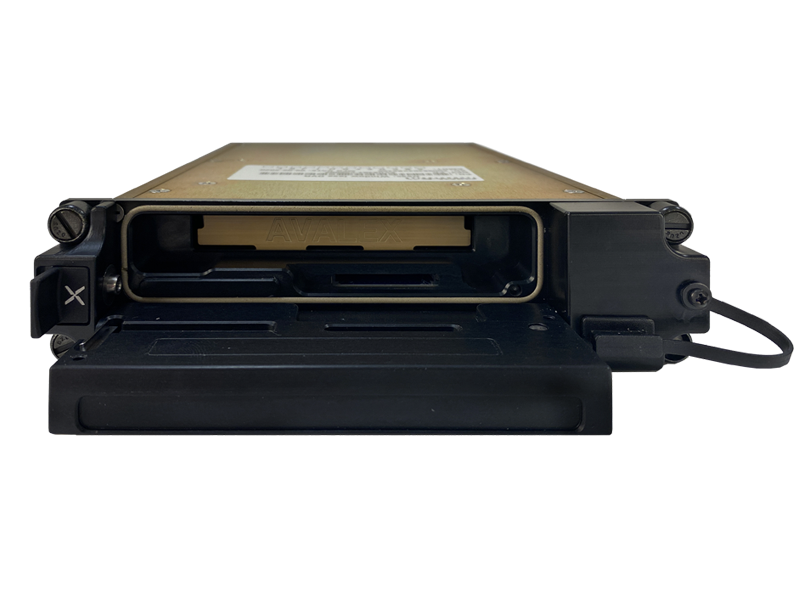

Removable Storage Media

  • SATA, SD Card, USB

Storage Temperature Range

  • -55° C to +85° C

Operating Temperature Range

  • -45° C to +71° C

Input Voltage

  • 28 VDC

Qualifications

  • DO-160F, MIL-STD-810G
