DDR Products
Compact and rugged BGA memory devices for size, weight and power (SWaP) constrained applications
Memory for the Edge
Processing large volumes of data in rugged environments away from climate-controlled data centers requires compact and dependable memory solutions.
Explore our DDR portfolio and configuration options below.
Thank you! We have received your message and will be in touch with you shortly.
CHALLENGE
When space is a premium and failure isn’t an option, traditional memory solutions just won’t work
- Individually packaged devices take up too much space
- Connections likely to fail during vibration
- Consumer devices lack a trusted supply chain
SOLUTION
High-density DDR memory that maximizes processing performance in the most challenging environments.
Mercury’s compact plastic BGA packages consisting of multiple stacked die are optimized for size, weight and power in military and commercial aerospace applications.
Thank you! We have received your message and will be in touch with you shortly.
DDR4 Memory
| Type | Size | Organization | Part Number | Data Rate | Voltage (V) | Package | Dimensions |
|---|---|---|---|---|---|---|---|
| DDR4 | 8GB | 1Gx72 | 4N1G72T-XB2X | 1600-2400 | 1.2 | 321 PBGA | 13mm x 20mm |
| DDR4 | 4GB | 512Mx72 | 4N512M72T-XB2X | 1600-2100 | 1.2 | 321 PBGA | 13mm x 20mm |

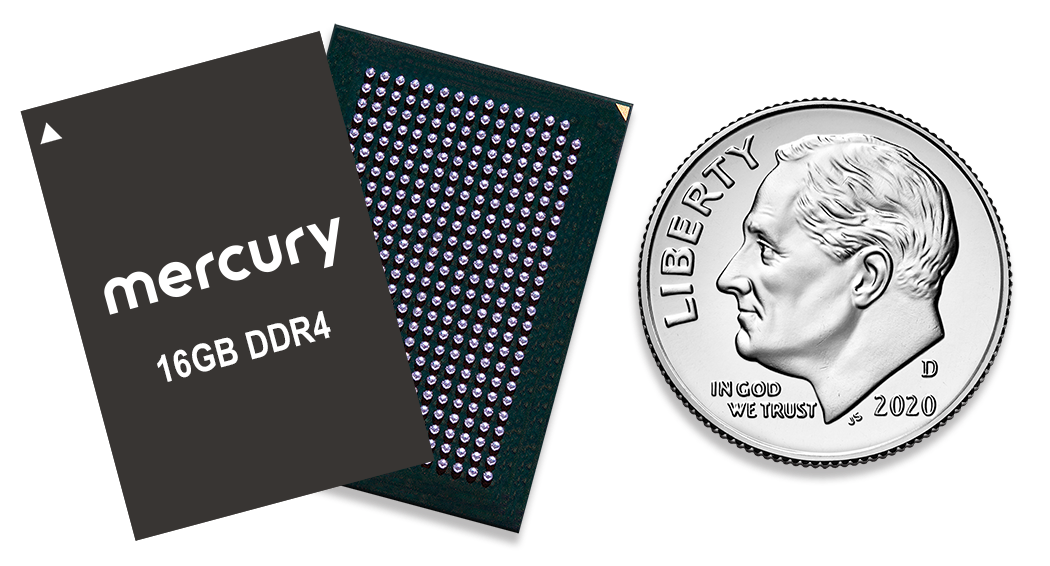

| DDR4 | 16GB | 2Gx72 | 4N2G72T-XB2X | 1600-2400 | 1.2 | 367 PBGA | 16 x 28 x 3.73mm |
| RT DDR4 | 8GB | 1Gx72 | R04N0008G72TXB2X | 1600-2400 | 1.2 | 321 PBGA | 13 x 20 x 2.36mm |
DDR3 Memory
FILTERS
| Type | Size | Organization | Part Number | Data Rate | Voltage (V) | Package | Dimensions |
|---|---|---|---|---|---|---|---|
| DDR3 | 8GB | 1GBx72 | W3J1G72KT-XLBX | 800-1600 | 1.35 | 543 PBGA | 23mm x 32mm |
| DDR3 | 4GB | 512Mx64 | W3J512M64X-XLB2X | 800-1600 | 1.35 | 543 PBGA | 23mm x 32mm |
| DDR3 | 4GB | 512Mx72 | W3J512M72K-XLB2X | 800-1600 | 1.35 | 543 PBGA | 23mm x 32mm |
| DDR3 | 4GB HD | 512Mx72 | W3J512M72K(T)-XHDX | 800-1600 | 1.35 | 399 PBGA | 14mm x 21.5mm |
| DDR3 | 2GB | 512Mx32 | W3J512M32X-XB3X | 800-1600 | 1.35 | 136 PBGA | 10mm x 14.5mm |
| DDR3 | 2GB | 512Mx32 | W3J512M32X(T)-XB3X | 800-1333 | 1.35 | 204 PBGA | 10mm x 14.5mm |
| DDR3 | 1GB | 128Mx72 | W3J128M72X-XLBX | 800-1600 | 1.35 | 375 PBGA | 21.5mm x 20.5mm |
| DDR3 | 1GB | 128Mx64 | W3J128M64X-XLBX | 800-1600 | 1.35 | 375 PBGA | 21.5mm x 20.5mm |
DDR2 Memory
FILTERS
| Type | Size | Organization | Part Number | Data Rate | Voltage (V) | Package | Dimensions |
|---|---|---|---|---|---|---|---|
| DDR2 | 512MB | 64Mx64 | W3H64M64E-XBX | 400-667 | 1.8 | 208 PBGA | 16mm x 22mm |
| DDR2 | 512MB | 64Mx72 | W3H64M72E-XBX | 400-667 | 1.8 | 208 PBGA | 16mm x 22mm |
| DDR2 | 256MB | 32Mx72 | W3H32M72E-XBX | 400-667 | 1.8 | 208 PBGA | 16mm x 20mm |
| DDR2 | 256MB | 32Mx64 | W3H32M64E-XBX | 400-667 | 1.8 | 208 PBGA | 16mm x 20mm |
| DDR2 | 256MB | 2x64Mx16 | W3H264M16E-XBX | 400-667 | 1.8 | 79 PBGA | 11mm x 14mm |
| DDR2 | 256MB | 2x64Mx16 | W3H264M16E-XB2X | 400-667 | 1.8 | 79 PBGA | 11mm x 14mm |
| DDR2 | 128MB | 64Mx16 | W3H64M16E-XB2X | 400-667 | 1.8 | 79 PBGA | 11mm x 14mm |
| DDR2 | 1GB | 128Mx72 | W3H128M72E-XNBX | 400-667 | 1.8 | 208 PBGA | 16mmx22mm |
| DDR2 | 1GB | 128Mx72 | W3H128M72E-XSBX | 400-667 | 1.8 | 208 PBGA | 16mm x 22mm |
| DDR2 | 1GB | 128Mx72 | W3H128M72ER-XNBX | 400-667 | 1.8 | 255 PBGA | 21mm x 23mm |
DDR Memory
FILTERS
| Type | Size | Organization | Part Number | Data Rate | Voltage (V) | Package | Dimensions |
|---|---|---|---|---|---|---|---|
| DDR | 512MB | 64Mx72 | W3E64M72S-XBX | 200-266 | 2.5 | 219 PBGA | 32mm x 25mm |
| DDR | 256MB | 32Mx64 | W3E32M64S-XB3X | 200-333 | 2.5 | 208 PBGA | 13mm x 22mm |
| DDR | 256MB | 32Mx72 | W3E32M72S-XB3X | 200-333 | 2.5 | 208 PBGA | 13mm x 22mm |
| DDR | 256MB | 32Mx72 | W3E32M72S-XBX | 200-333 | 2.5 | 219 PBGA | 32mm x 26mm |
| DDR | 256MB | 32Mx72 | W3E32M72SR-XBX | 200-266 | 2.5 | 208 PBGA | 13mm x 22mm |
| DDR | 256MB | 32Mx64 | W3E32M64S-XB2X | 200-333 | 2.5 | 219 PBGA | 21mm x 21mm |
| DDR | 256MB | 32Mx64 | W3E32M64SA-XB2X | 200-333 | 2.5 | 219 PBGA | 21mm x 21mm |
| DDR | 128MB | 64Mx16 | W3E64M16S-XBX | 200-333 | 2.5 | 60 PBGA | 10mm x 12.5mm |
