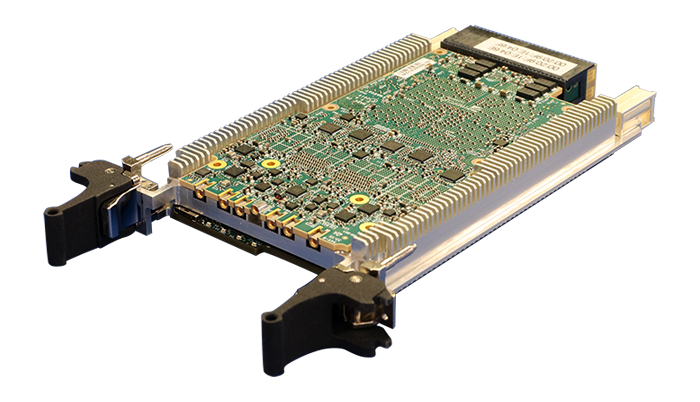

DCM3220 Digital Transceiver

  • slide

Configurable, low-latency, coherent 3U Rx/Tx module

The EnsembleSeries™ DCM3220 is an agile, OpenVPX digital transceiver in a 3U form factor to better serve SWaP-constrained, rugged environments in applications such as unmanned airborne and naval. With operation rates up to 6.4 GSPS, the DCM3220 offers low-latency, high-instantaneous bandwidth with high analog input/output frequency. The flexible, configurable architecture is created with combination design that exploits the full volume of the digital transceiver by incorporating advanced conduction cooling technology to support advanced electronic warfare, beam steering and coherent communication systems.

Features:

  • High spectral density in a 3U OpenVPX form factor
  • Wide IBW with low-latency ADC and DAC performance
  • Designed for system security engineering (SSE)
  • Multi-channel, highly configurable Rx/Tx module
  • Coherent and spectrally pure for EW applications
  • Virtex® UltraScale+™ FPGA processing power
  • Multi-channel/multi-card synchronization
  • Built-in IPMI controller

 BuildSECURE Mercury Systems

Download Datasheet
