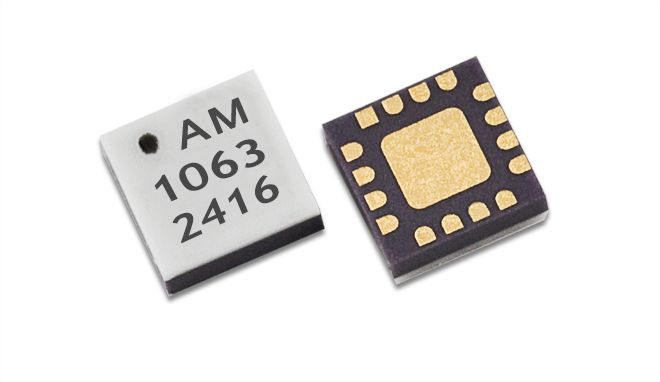

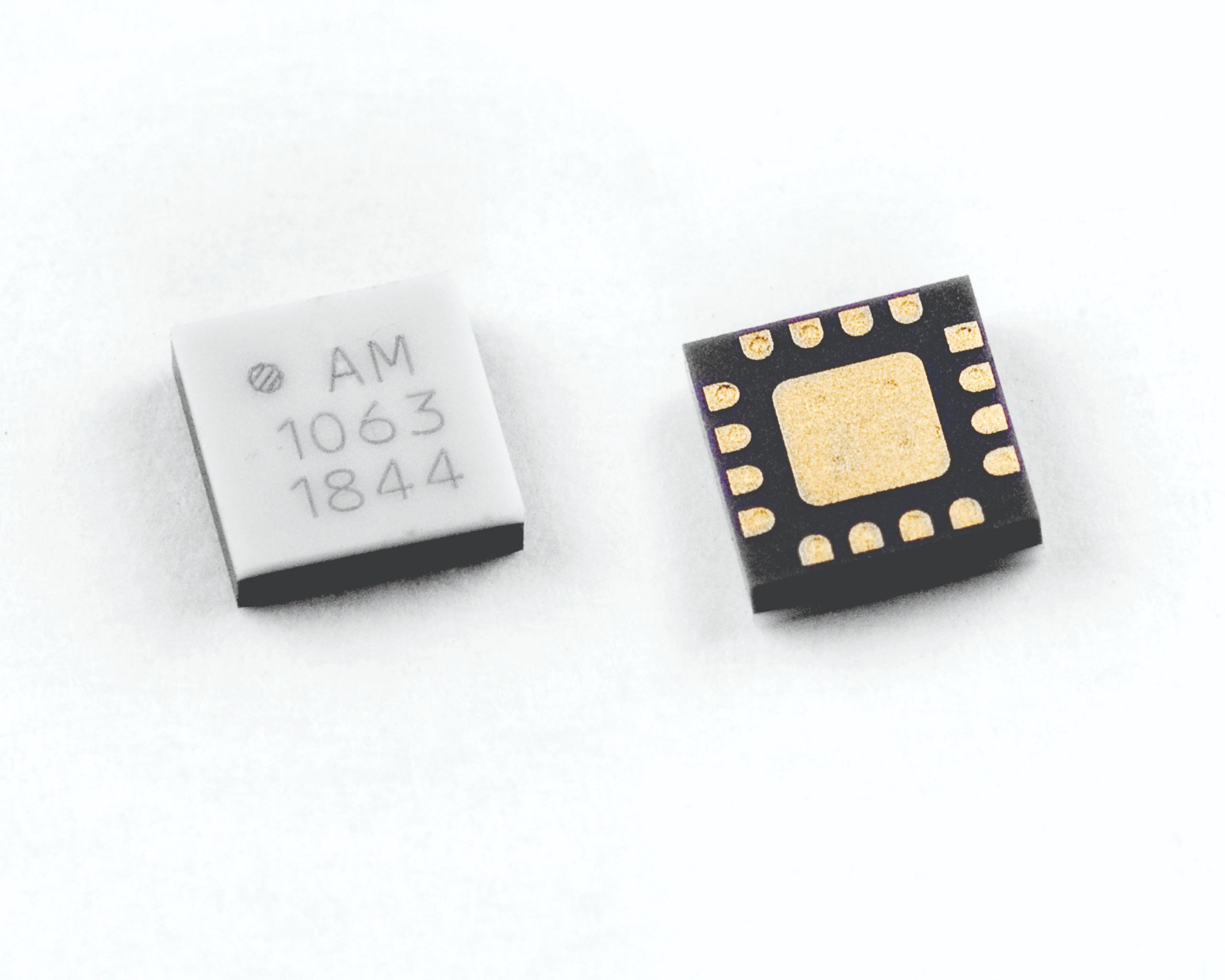

AM1063-1
DC to 10 GHz Gain Block
Function:
Amplifier
Package:
3mm QFN ECCN:
EAR99 The AM1063-1 is a high dynamic range DC-coupled amplifier covering up to 10 GHz.
The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1063-1 represents a compact total PCB footprint.
The AM1063 is also available in a 1.3mm x 2mm DFN form factor as the AM1063-2.
DC - 10
Frequency (GHz)
15
Gain (dB)
2.5
NF (dB)
30
OIP3 (dBm)
