AM1111
2 GHz to 18 GHz Gain Block
Function:
Amplifier
Package:
3mm QFN ECCN:
EAR99 AM1111 is a wideband, cascadable amplifier servicing the 2 to 18 GHz frequency range.
The device exhibits exceptional linearity and power handling capabilities across its bandwidth, while maintaining moderate gain and noise figure. Packaged in a 3mm QFN with internal 50Ω matching and DC blocking capacitors on input and output, AM1111 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1099.

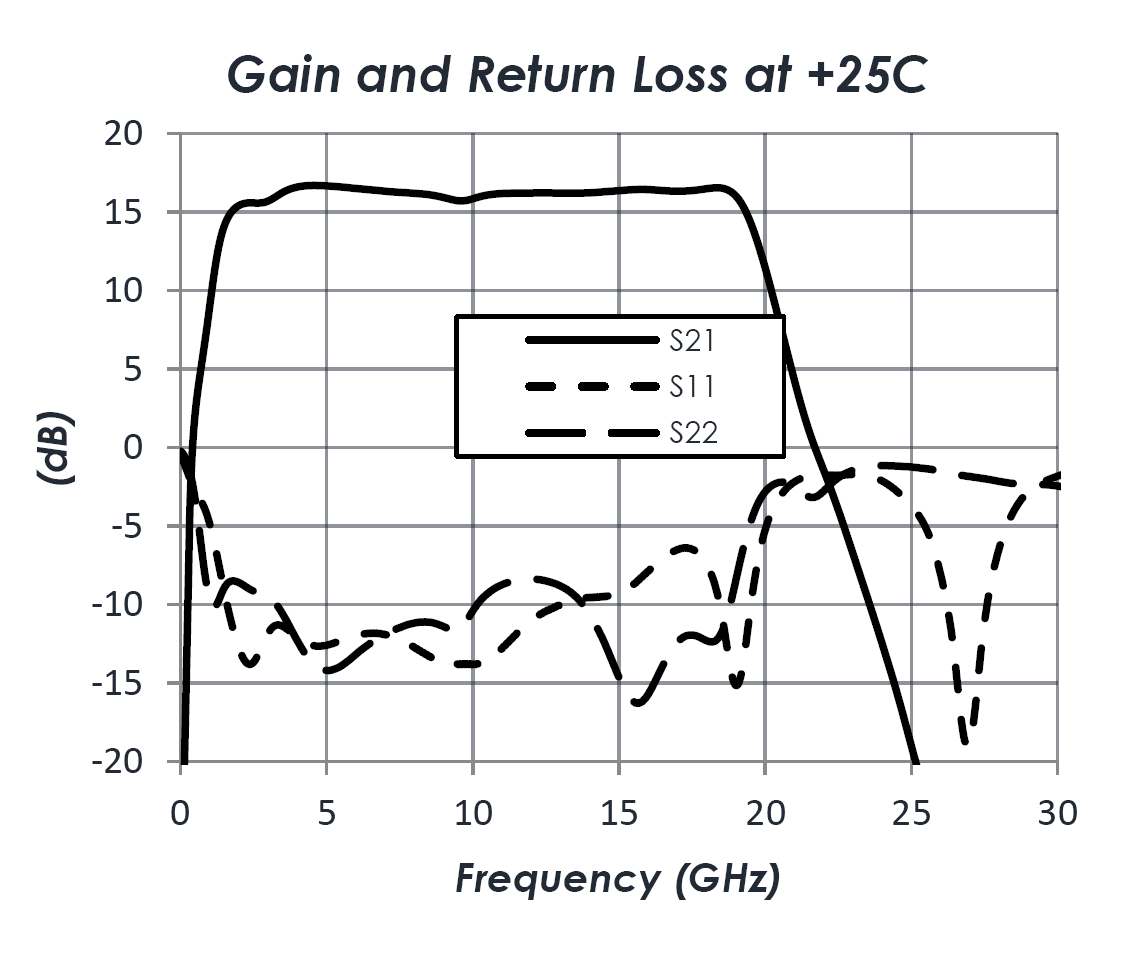

2 - 18
Frequency (GHz)
16
Gain (dB)
2.5
NF (dB)
32
OIP3 (dBm)
