AM3269

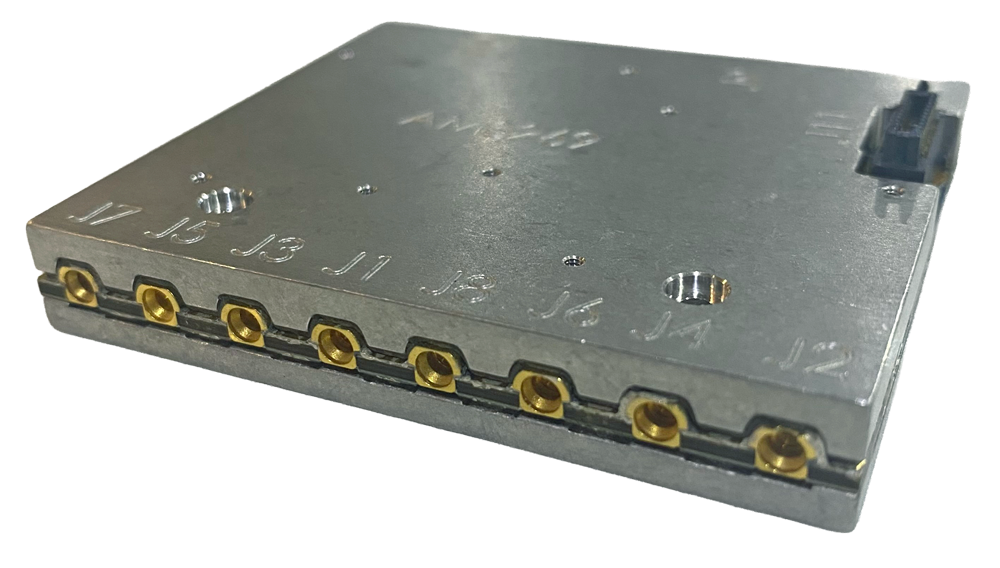

2.0 to 18 GHz 4 Receive, 4 Transmit Signal Conditioning Module
Function:
Signal Conditioning Preselector
Package:
2.18” x 2.5” x 0.37” ECCN:
3A002.h.1.d AM3269 is a configurable RF signal conditioning preselector module covering the 2 GHz to 18 GHz frequency range with 4 RX and 4 TX channels.
Each channel provides independently adjustable filters and gain control for dynamic signal environments. It incorporates an internal TX to RX loopback for built in diagnostics. Tailored for multichannel applications, the AM3269 provides a drastic improvement in dynamic range for DirectRF digitization systems, and its compact design makes it an attractive choice for demanding requirements where space is at a premium—from airborne platforms to dense rack-mounted environments requiring multiple channels in minimal space.
2 to 18
Frequency (GHz)
+30
OIP3 (dBm), TX
7
NF (dB)
-3
IIP3 (dBm), RX
9.7
Power (W)
