AM2101
DC-20 GHz, 1dB Attenuation, 1.3x2mm DFN
Function:
Fixed Attenuator
Package:
1.3 x 2 mm DFN ECCN:

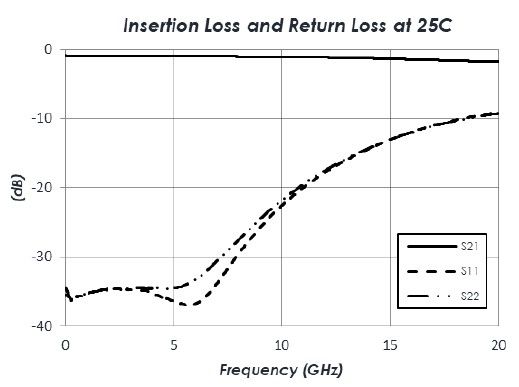

EAR99 AM2101 is a 1 dB fixed attenuator. It operates with a flat frequency response from DC to 20 GHz.
Packaged in a chipscale 1.3 x 2mm DFN package, the AM2101 is footprint compatible with the rest of Mercury’s fixed attenuator and equalizer products which offers design flexibility with attenuation values ranging from 0dB to 5dB and equalizer gain slopes of 2, 4, 6, and 8dB operating to 20GHz.
0
Frequency (GHz) Low
20
Frequency (GHz) High
1
(dB) Attenuation
