AM2156
DC-20 GHz, 6dB Slope, 1.3x2mm DFN
Function:
Fixed Slope Equalizer
Package:
1.3 x 2 mm DFN ECCN:
EAR99 AM2156 is a fixed slope equalizer with 6dB of positive slope from DC to 20 GHz.

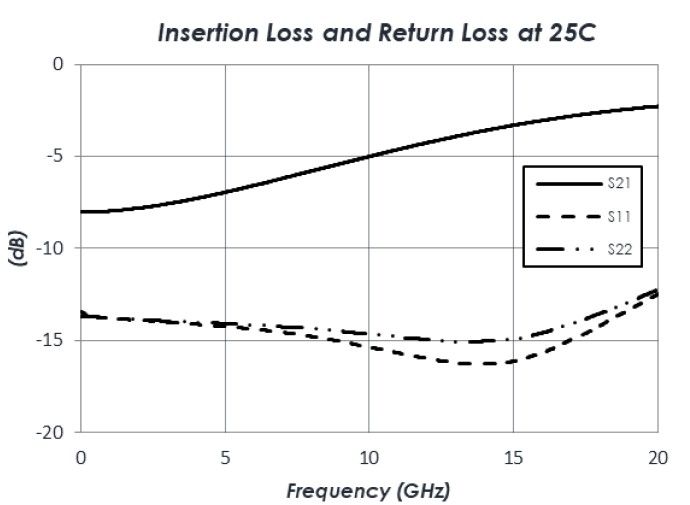

AM2156 operates with a flat frequency response from DC to 20 GHz. Packaged in a chipscale 1.3 x 2mm DFN package, the AM2156 is footprint compatible with the rest of Mercury’s fixed attenuator and equalizer products which offers design flexibility with attenuation values ranging from 0 dB to 5 dB and equalizer gain slopes of 2, 4, 6, and 8 dB operating to 20 GHz.
0
Frequency (GHz) Low
20
Frequency (GHz) High
6
Slope (dB)
