AM2158
DC-20 GHz, 8dB Slope, 1.3x2mm DFN
Function:
Fixed Slope Equalizer
Package:
1.3 x 2 mm DFN ECCN:
EAR99 AM2158 is a fixed slope equalizer with 8dB of positive slope from DC to 20 GHz.

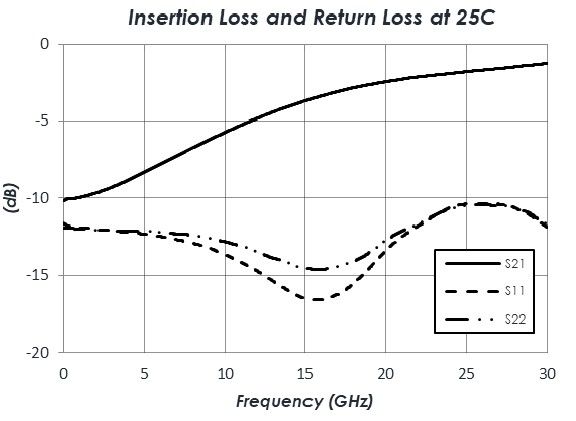

AM2158 operates with a flat frequency response from DC to 20 GHz. Packaged in a chipscale 1.3 x 2mm DFN package, the AM2158 is footprint compatible with the rest of Mercury’s fixed attenuator and equalizer products which offers design flexibility with attenuation values ranging from 0dB to 5dB and equalizer gain slopes of 2, 4, 6, and 8dB operating to 20GHz.
0
Frequency (GHz) Low
20
Frequency (GHz) High
8
Slope (dB)
