FPGA Processor

Model Form Factor LVDS Gigabit Serial Serial FPDP Optical Mezzanine Memory Type Memory Size FPGA Type SOSA View Product Manual
5560 3U VPX Yes Yes   Yes   DDR4 16 GB Versal HBM ACAP Yes

View

Contact Us

SCFE6931 6U VPX Yes Yes   Yes   DDR4 48 GB Versal AI ACAP Yes

View


SCFE6933 6U SpaceVPX Yes Yes   Yes   DDR4 24 GB Versal AI ACAP

View


SCFE6921 6U VPX Yes Yes   Yes   DDR4 40 GB Virtex UltraScale+

View

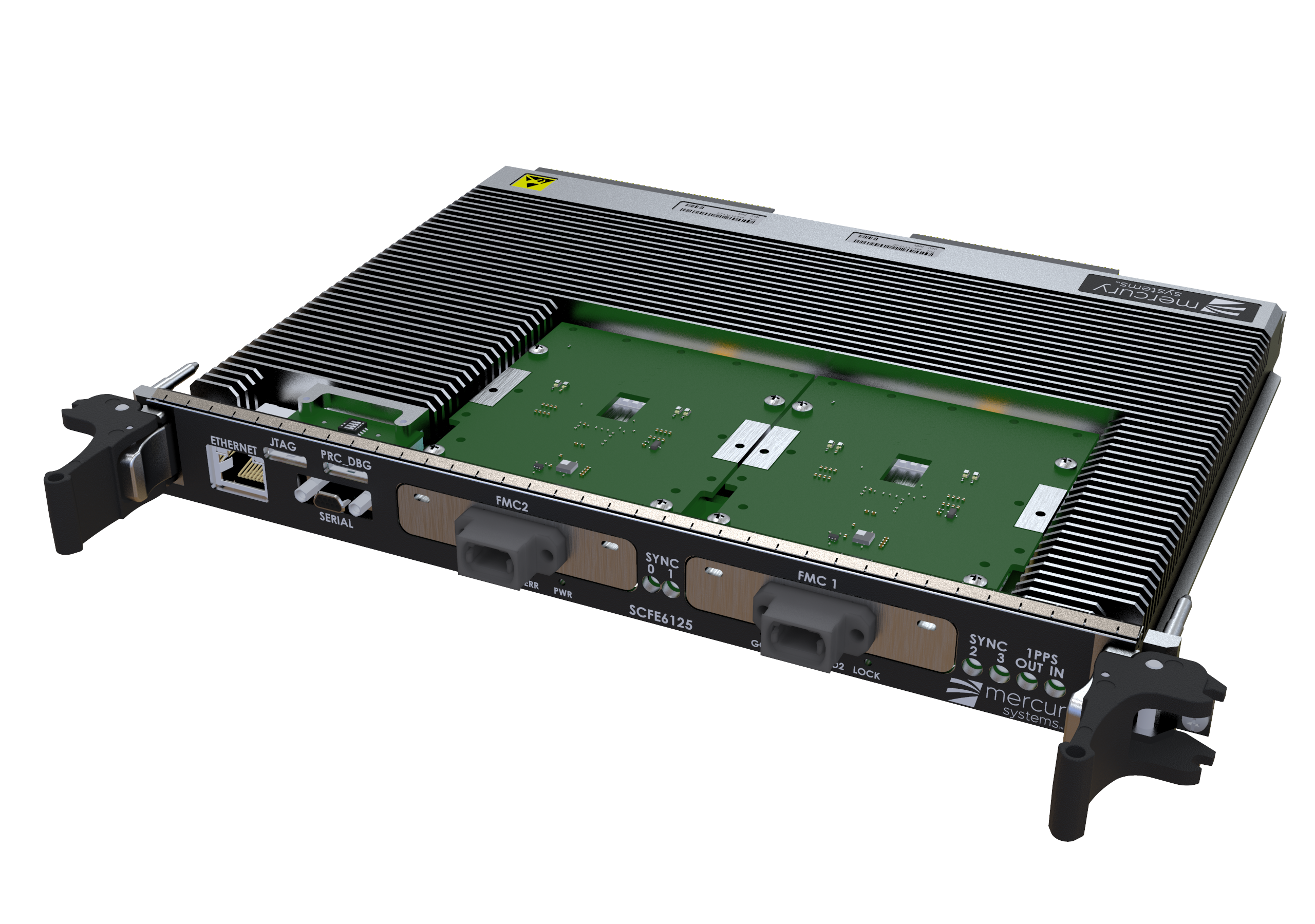

SCFE6125 6U VPX Yes Yes   Yes   DDR4 20 GB Virtex UltraScale+

View

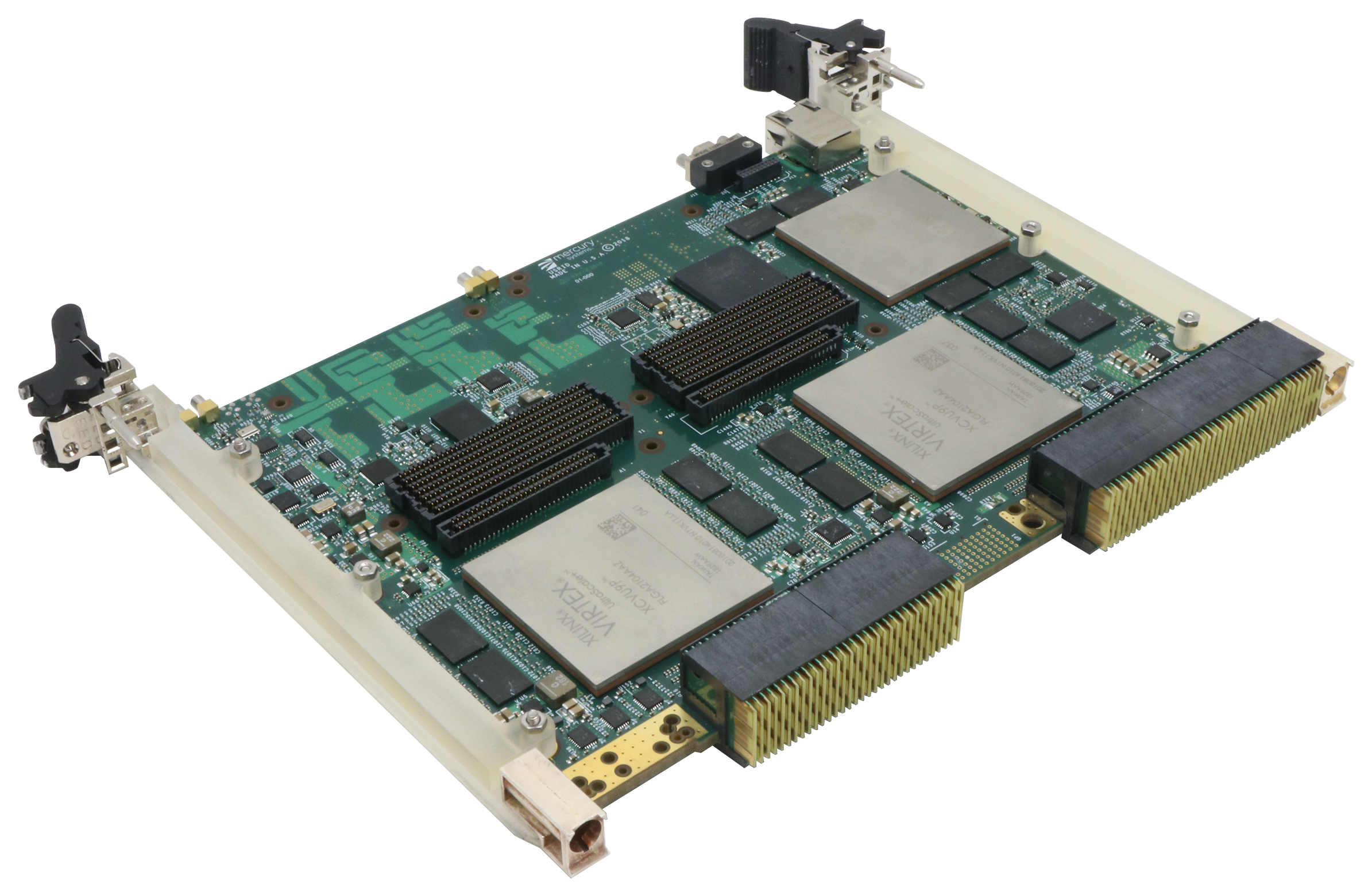

SCFE6120 6U VPX Yes Yes     FMC+ DDR4 20 GB Virtex UltraScale+

View

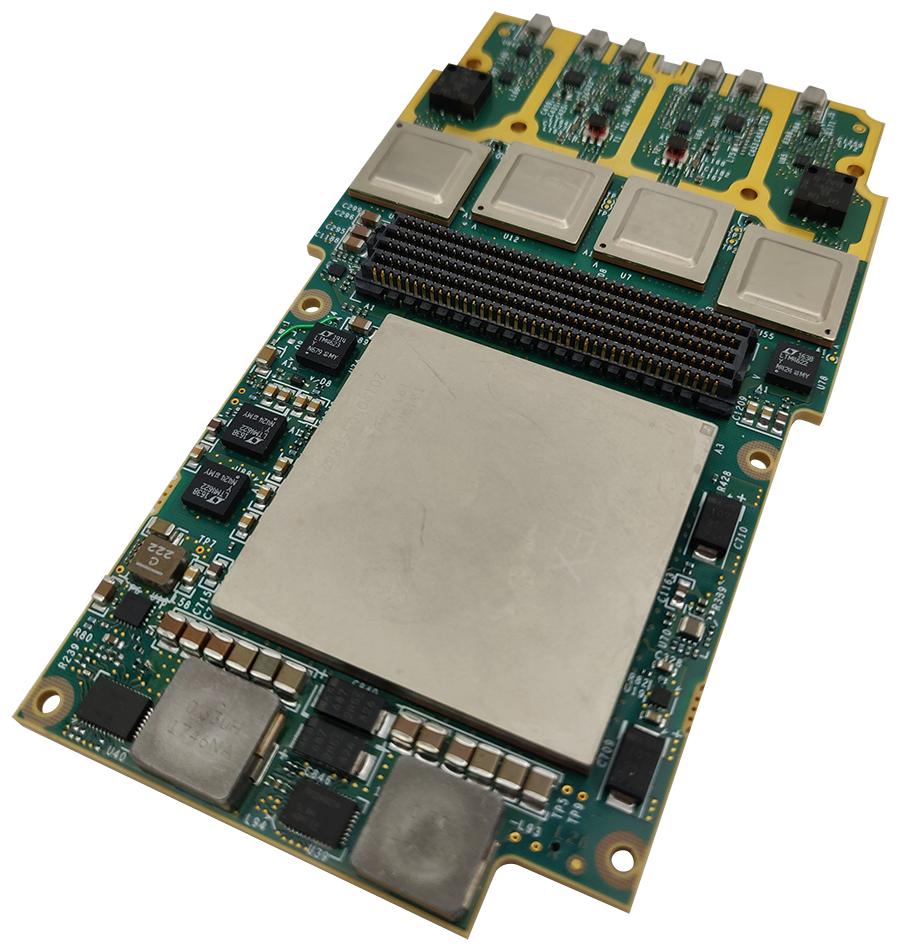

SCFE3820 3U VPX Yes Yes     Custom DDR4 12 GB Zynq Ultrascale+

View


71610 XMC Yes Yes       DDR3 2 GB Virtex-6

View

Contact Us

52610 3U VPX Yes Yes       DDR3 2 GB Virtex-6

View

Contact Us

57610-58610 6U VPX Yes Yes       DDR3 2 GB Virtex-6

View

Contact Us

78610 PCIe Yes Yes       DDR3 2 GB Virtex-6

View

Contact Us

71611 XMC     Yes     DDR3 2 GB Virtex-6

View

Contact Us

52611 3U VPX     Yes     DDR3 2 GB Virtex-6

View

Contact Us

57611-58611 6U VPX     Yes     DDR3 2 GB Virtex-6

View

Contact Us

78611 PCIe     Yes     DDR3 2 GB Virtex-6

View

Contact Us

7811 PCIe Yes Yes           Virtex-6

View

Contact Us

71810 XMC Yes Yes       DDR4 5 GB Virtex UltraScale

View

Contact Us

54810 3U VPX Yes Yes       DDR4 5 GB Virtex UltraScale

View

Contact Us

57810 6U VPX Yes Yes       DDR4 5 GB Virtex UltraScale

Contact Us

58810 6U VPX Yes Yes       DDR4 5 GB Virtex UltraScale

Contact Us

71813 XMC Yes Yes   Yes   DDR4 5 GB Virtex UltraScale Yes

View

Contact Us

5586 3U VPX       Yes   HBM 8 GB Virtex UltraScale+ Yes

View

Contact Us

5983 3U VPX Yes Yes   Yes FMC+ DDR4 9 GB Kintex UltraScale

View

Contact Us

7070 PCIe Yes Yes   Yes FMC DDR3 4 GB Virtex-7

View

Contact Us

5973 3U VPX Yes Yes   Yes FMC DDR3 4 GB Virtex-7

View

Contact Us

Expedite Development

Easily control and configure hardware and IP functions using our FPGA Navigator® design suite. Already proven on 150+ boards, our suite includes board support packages (BSPs) and an FPGA design kit (FDK).

LEARN MORE


Lower Costs with Open Standards

Mercury FPGA boards are built with MOSA standards, including OpenVPX™ and SOSA to mitigate risk and increase interoperability, delivering rapid technology insertion and integration at an overall lower cost.  technology insertion and integration at an overall lower cost.

Save Space and Operate Anywhere

Our boards package high-performance technologies in compact and ruggedized form factors to minimize SWaP and support applications deployed in harsh environments.

Purpose-Built

Reduce Risk and Deploy Faster

Ruggedized and delivered with DAL artifacts and built-in security features, Mercury’s open system architecture processing and IO boards mitigate risk, reduce subsystem development costs, and accelerate platform deployment.
