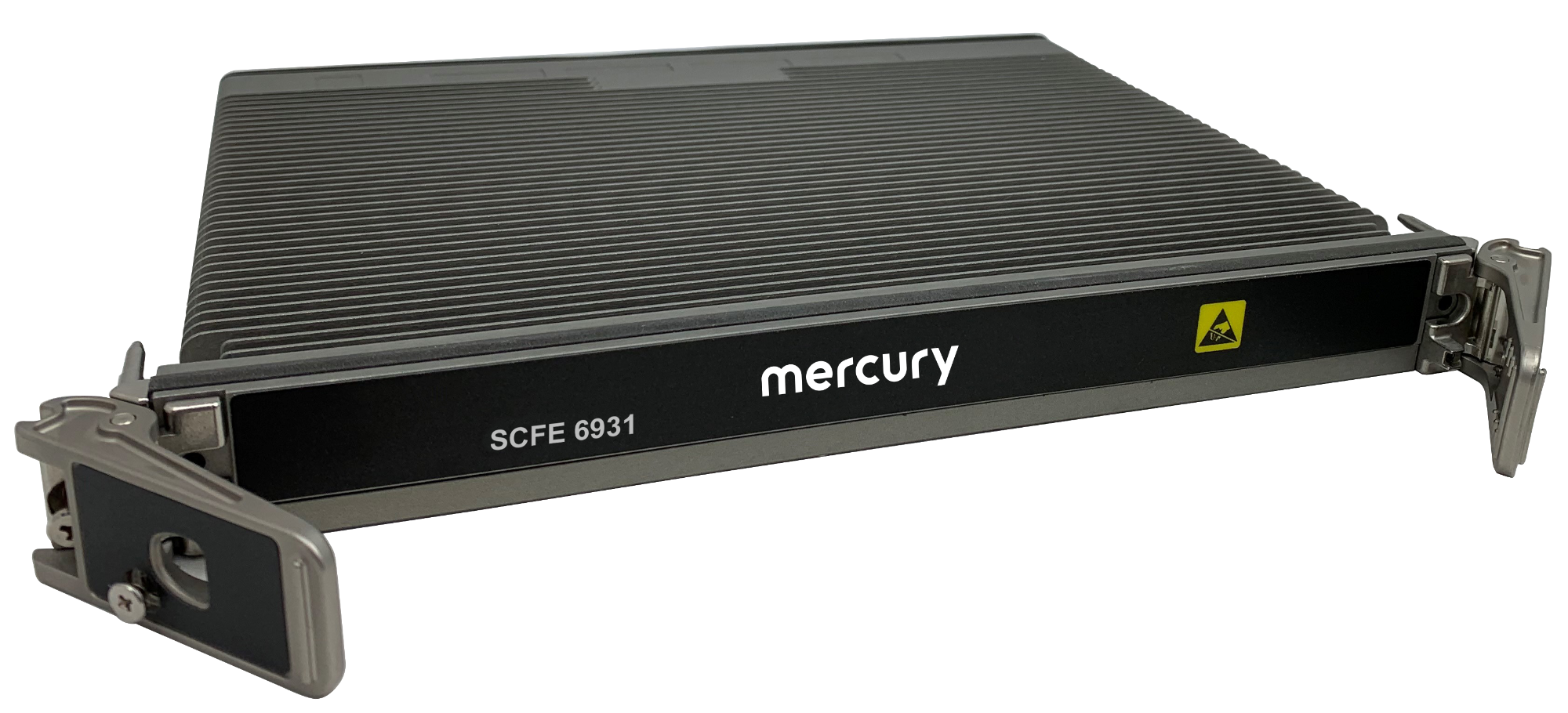

SCFE6931 6U OpenVPX FPGA Board with Optical I/O

  • slide

Dual Versal AI Core FPGA Processing Board

The SCFE6931 leverages Versal ACAP (Adaptive Compute Acceleration Platform) technology from AMD® to create an FPGA processing board that operates up to 20× faster than former FPGA implementations. The dual AI core, fiber-optic interfaces and network-on-chip (NoC) come together to redefine how much capability can be fit in a 6U module. The SCFE6931 can process and move data faster than ever without the power, heat or space challenges older modules face.



DOWNLOAD DATASHEET

Expedite ACAP Development

The Model 8258 brings the parallel processing power of Versal ACAP to a ready-to-run, proven and tested platform. The preconfigured system includes the chassis, with optional 100 GigE support, and the power and cooling that matches the SCFE6931 ACAP board—all in a small desktop footprint. A Navigator® FPGA design kit (FDK) and board support package (BSP) complete the platform. All code developed can easily transition to the deployed environment to keep your engineering schedule on track.

Features
  • Multi-channel, highly configurable FMX carrier
  • Versal ACAP processing power
  • Processing subsystems in data path for max performance
  • OpenVPX compliant and SOSA aligned for easy integration
  • Multiple high-reliability cooling options



Specifications

Physical:

  • Single-slot 6U OpenVPX form factor
  • OpenVPX interface compliant with ANSI/VITA 65-2010 (R2013)
  • Optical mid-board
  • Up to 16 Rx/Tx mid-board fiber transceivers per Versal AI Core ACAP

Backplane Interface:

  • VITA 65 slot profile SLT6-PAY-4F1Q2U2T-10.2.1
  • VITA 66.x capable on P3 and P6
  • Two AMD Versal AI Core VC1902 ACAPs

Memory:

  • 48 GB of DDR4 SDRAM (24 GB per ACAP)
