FPGA, A/D & D/A

High-Speed Digitization and FPGA Processing

Leverage the latest commercially developed A/D, D/A and FPGA silicon for your most challenging designs. As next generation programs require increased bandwidth and AI-capable edge processing, there is a growing need to deliver the latest commercially developed semiconductor technology in easy-to-integrate OpenVPX and SOSA form factors.

At Mercury we partner with leading commercial semiconductor companies to develop innovative boards and modules including Xilinx RFSoC & ACAP technologies engineered to accelerate digital signal processing at the tactical edge.

FEATURED PRODUCT

Direct RF DRF3182 FPGA 3U OpenVPX Board

Offers fast, wideband data capture up to Ku band at the edge in real-time.

DISCOVER MORE

+ Stratix 10 AX SoC FPGA

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	D/A Qty	D/A Resolution	D/A Sample Freq.	Family	SOSA	View Product
DRF3182	3U VPX	8	4	10	51.2 GSPS	18 GHz	4	10	51.2 GSPS			View

+ Ultrascale+ RFSoC

FILTERS

CLEAR ALL FILTERS

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	DUC Qty	D/A Qty	D/A Resolution	D/A Sample Freq.	Family	SOSA	View Product
7050	PCIe	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz		View
6350	SFF	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz		View
5550	3U VPX	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz	Yes	View
5950	3U VPX	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz		View
6350S	SFF	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz		View
6001	QuartzXM	8	8	12	4 GHz	4 GHz	8	8	14	6.4 GHz	Quartz		View
6003	QuartzXM	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz		View
6353S	SFF	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz		View
7053	PCIe	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz		View
6353	SFF	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz		View
5553	3U VPX	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz	Yes	View
5953	3U VPX	8	8	14	5 GHz	6 GHz	8	8	14	9.85 GHz	Quartz		View

+ Virtex Ultrascale+

FILTERS

CLEAR ALL FILTERS

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	D/A Qty	D/A Resolution	D/A Sample Freq.	Family	SOSA	View Product
DCM3220	3U VPX		2	12	6.4 GHz		2	12	6.4 GHz			View
DCM6222	6U VPX		2	12	6.4 GHz		2	12	6.4 GHz			View
DCM6122	6U VPX		4	12	3.2 GHz		4	12	3.2 GHz			View
DCM6212	6U VPX		2	12	6.4 GHz		2	12	6.4 GHz			View
DCM6112	6U VPX		4	12	3.2 GHz		4	12	3.2 GHz			View
5585	3U VPX	8	8	16	250 MHz	700 MHz				Jade	Yes	View

+ Kintex Ultrascale

FILTERS

CLEAR ALL FILTERS

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	DUC Qty	D/A Qty	D/A Resolution	D/A Sample Freq.	Family	View Product
DCM6111	6U VPX		2	12	2.5 GHz			2	12	2.5 GHz		View
DCM3110	3U VPX		4, 2	12	3 GHz, 2 GHz			2	12	3 GHz		View
5983-320	3U VPX	2	2	14	3 GHz	3 GHz	2	2	16	2.8 GHz	JadeFX	View
5983-313	3U VPX	4	4	16	250 MHz	700 MHz	1	2	16	800 MHz	JadeFX	View
5983-324	3U VPX		4	16	500 MHz	500 MHz	4	4	16	2 GHz	JadeFX	View
5983-317	3U VPX	8	8	16	250 MHz	700 MHz					JadeFX	View
54141A	3U VPX	2	2	12	6.4 GHz	8.1 GHz	2	2	14	6.4 GHz	Jade	View
71821	XMC	3	3	16	200 MHz		1	2	16	800 MHz	Jade	View
54821	3U VPX	3	3	16	200 MHz		1	2	16	800 MHz	Jade	View
58821-57821	6U VPX	6, 3	6, 3	16	200 MHz		2, 1	4, 2	16	800 MHz	Jade	View
78821	PCIe	3	3	16	200 MHz		1	2	16	800 MHz	Jade	View
71131	XMC	8	8	16	250 MHz						Jade	View
52131	3U VPX	8	8	16	250 MHz						Jade	View
58131-57131	6U VPX	16, 8	16, 8	16	250 MHz						Jade	View
78131	PCIe	8	8	16	250 MHz						Jade	View
71141	XMC	2	2	12	6.4 GHz	8.1 GHz	2	2	14	6.4 GHz	Jade	View
52141	3U VPX	2	2	12	6.4 GHz	8.1 GHz	2	2	14	6.4 GHz	Jade	View
58141-57141	6U VPX	4, 2	4, 2	12	6.4 GHz	8.1 GHz	4, 2	4, 2	14	6.4 GHz	Jade	View
78141	PCIe	2	2	12	6.4 GHz	8.1 GHz	2	2	14	6.4 GHz	Jade	View
71841	XMC	2	2	12	6.4 GHz	1.75 GHz					Jade	View
52841	3U VPX	2	2	12	6.4 GHz	1.75 GHz					Jade	View
58841-57841	6U VPX	4, 2	4, 2	12	6.4 GHz	1.75 GHz					Jade	View
78841	PCIe	2	2	12	6.4 GHz	1.75 GHz					Jade	View
71851	XMC	2	2	12	500 MHz		1	2	16	800 MHz	Jade	View
52851	3U VPX	2	2	12	500 MHz		1	2	16	800 MHz	Jade	View
54851	3U VPX	2	2	12	500 MHz		1	2	16	800 MHz	Jade	View
58851-57851	6U VPX	4, 2	4, 2	12	500 MHz		2, 1	4, 2	16	800 MHz	Jade	View
78851	PCIe	2	2	12	500 MHz		1	2	16	800 MHz	Jade	View
71861	XMC	4	4	16	200 MHz						Jade	View
52861	3U VPX	4	4	16	200 MHz						Jade	View
58861-57861	6U VPX	8, 4	8, 4	16	200 MHz						Jade	View
78861	PCIe	4	4	16	200 MHz						Jade	View
71891	XMC	2	2	12	500 Mhz	2.1 GHz					Jade	View
54891	3U VPX	2	2	12	500 MHz	2.1 GHz					Jade	View
58891-57891	6U VPX	4, 2	4, 2	12	500 MHz	2.1 GHz					Jade	View
78891	PCIe	2	2	12	500 MHz	2.1 GHz					Jade	View
71132	XMC	64	8	16	250 MHz						Jade	View
52132	3U VPX	64	8	16	250 MHz						Jade	View
58132-57132	6U VPX	128, 64	16, 8	16	250 MHz						Jade	View
78132	PCIe	64	8	16	250 MHz						Jade	View
71862	XMC	32	4	16	200 MHz						Jade	View
52862	3U VPX	32	4	16	200 MHz						Jade	View
58862-57862	6U VPX	64, 32	8, 4	16	200 MHz						Jade	View
78862	PCIe	32	4	16	200 MHz						Jade	View
71865	XMC	766	2	16	200 MHz						Jade	View
52865	3U VPX	766	2	16	200 MHz						Jade	View
58865-57865	6U VPX	1532, 766	4, 2	16	200 MHz						Jade	View
78865	PCIe	766	2	16	200 MHz						Jade	View

+ Virtex-7

FILTERS

CLEAR ALL FILTERS

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	DUC Qty	D/A Qty	D/A Resolution	D/A Sample Freq.	Family	View Product
7070-320	PCIe	2	2	14	3 GHz	3 GHz	2	2	16	2.8 GHz	OnyxFX	View
5973-320	3U VPX	2	2	14	3 GHz	3 GHz	2	2	16	2.8 GHz	OnyxFX	View
7070-312	PCIe		4	16	250 MHz	700 MHz	1	2	16	800 MHz	OnyxFX	View
5973-312	3U VPX		4	16	250 MHz	700 MHz	1	2	16	800 MHz	OnyxFX	View
7070-313	PCIe	4	4	16	250 MHz	700 MHz	1	2	16	800 MHz	OnyxFX	View
5973-313	3U VPX	4	4	16	250 MHz	700 MHz	1	2	16	800 MHz	OnyxFX	View
7070-324	PCIe		4	16	500 MHz	500 MHz	4	4	16	2 GHz	OnyxFX	View
5973-324	3U VPX		4	16	500 MHz	500 MHz	4	4	16	2 GHz	OnyxFX	View
7070-316	PCIe		8	16	250 MHz	700 MHz					OnyxFX	View
5973-316	3U VPX		8	16	250 MHz	700 MHz					OnyxFX	View
7070-317	PCIe		8	16	250 MHz	700 MHz					OnyxFX	View
5973-317	3U VPX		8	16	250 MHz	700 MHz					OnyxFX	View
71720	XMC		3	16	200 MHz		1	2	16	800 MHz	Onyx	View
52720	3U VPX		3	16	200 MHz		1	2	16	800 MHz	Onyx	View
58720-57720	6U VPX		6, 3	16	200 MHz		2, 1	4, 2	16	800 MHz	Onyx	View
78720	PCIe		3	16	200 MHz		1	2	16	800 MHz	Onyx	View
71730	XMC		1	12	1 GHz			1	16	1 GHz	Onyx	View
52730	3U VPX		1	12	1 GHz			1	16	1 GHz	Onyx	View
58730-57730	6U VPX		2, 1	12	1 GHz			2, 1	16	1 GHz	Onyx	View
78730	PCIe		1	12	1 GHz			1	16	1 GHz	Onyx	View
71760	XMC		4	16	200 MHz						Onyx	View
52760	3U VPX		4	16	200 MHz						Onyx	View
58760-57760	6U VPX		8, 4	16	200 MHz						Onyx	View
78760	PCIe		4	16	200 MHz						Onyx	View
71721	XMC	3	3	16	200 MHz		1	2	16	800 MHz	Onyx	View
52721	3U VPX	3	3	16	200 MHz		1	2	16	800 MHz	Onyx	View
58721-57721	6U VPX	6, 3	6, 3	16	200 MHz		2, 1	4, 2	16	800 MHz	Onyx	View
78721	PCIe	3	3	16	200 MHz		1	2	16	800 MHz	Onyx	View
71741	XMC	2	2	12	3.6 GHz	1.75 GHz					Onyx	View
52741	3U VPX	2	2	12	3.6 GHz	1.75 GHz					Onyx	View
58741-57741	6U VPX	4, 2	4, 2	12	3.6 GHz	1.75 GHz					Onyx	View
78741	PCIe	2	2	12	3.6 GHz	1.75 GHz					Onyx	View
71751	XMC	2	2	12	500 MHz		1	2	16	800 MHz	Onyx	View
52751	3U VPX	2	2	12	500 MHz		1	2	16	800 MHz	Onyx	View
58751-57751	6U VPX	4, 2	4, 2	12	500 MHz		2, 1	4, 2	16	800 MHz	Onyx	View
78751	PCIe	2	2	12	500 MHz		1	2	16	800 MHz	Onyx	View
71761	XMC	4	4	16	200 MHz						Onyx	View
52761	3U VPX	4	4	16	200 MHz						Onyx	View
58761-57761	6U VPX	8, 4	8, 4	16	200 MHz						Onyx	View
78761	PCIe	4	4	16	200 MHz						Onyx	View
71791	XMC	2	2	12	500 MHz	2.175 GHz					Onyx	View
52791	3U VPX	2	2	12	500 MHz	2.175 GHz					Onyx	View
58791-57791	6U VPX	4, 2	4, 2	12	500 MHz	2.175 GHz					Onyx	View
78791	PCIe	2	2	12	500 MHz	2.175 GHz					Onyx	View

+ Virtex-6

FILTERS

CLEAR ALL FILTERS

Model	Form Factor	DDC Qty	A/D Qty	A/D Resolution	A/D Sample Freq.	Max Input Freq.	DUC Channels	D/A Channels	D/A Resolution	D/A Sample Freq.	Family	View Product
71620	XMC		3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
52620	3U VPX		3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
58620-57620	6U VPX		6, 3	16	200 MHz		2, 1	4, 2	16	800 MHz	Cobalt	View
78620	PCIe		3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
71630	XMC		1	12	1 GHz			1	16	1 GHz	Cobalt	View
52630	3U VPX		1	12	1 GHz			1	16	1 GHz	Cobalt	View
58630-57630	6U VPX		2, 1	12	1 GHz			2, 1	16	1 GHz	Cobalt	View
78630	PCIe		1	12	1 GHz			1	16	1 GHz	Cobalt	View
71640	XMC		2	12	3.6 GHz	1.75 GHz					Cobalt	View
52640	3U VPX		2	12	3.6 GHz	1.75 GHz					Cobalt	View
58640-57640	6U VPX		4, 2	12	3.6 GHz	1.75 GHz					Cobalt	View
78640	PCIe		2	12	3.6 GHz	1.75 GHz					Cobalt	View
71650	XMC		2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
52650	3U VPX		2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
58650-57650	6U VPX		4, 2	12	500 MHz		2, 1	4, 2	16	800 MHz	Cobalt	View
78650	PCIe		2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
71660	XMC		4	16	200 MHz						Cobalt	View
52660	3U VPX		4	16	200 MHz						Cobalt	View
58660-57660	6U VPX		8, 4	16	200 MHz						Cobalt	View
78660	PCIe		4	16	200 MHz						Cobalt	View
71670	XMC						4	4	16	1.25 GHz	Cobalt	View
52670	3U VPX						4	4	16	1.25 GHz	Cobalt	View
58670-57670	6U VPX						8, 4	8, 4	16	1.25 GHz	Cobalt	View
78670	PCIe						4	4	16	1.25 GHz	Cobalt	View
71690	XMC		2	16	200 MHz	2.175 GHz					Cobalt	View
52690	3U VPX		2	16	200 MHz	2.175 GHz					Cobalt	View
58690-57690	6U VPX		4, 2	16	200 MHz	2.175 GHz					Cobalt	View
78690	PCIe		2	16	200 MHz	2.175 GHz					Cobalt	View
71621	XMC	3	3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
52621	3U VPX	3	3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
58621-57621	6U VPX	6, 3	6, 3	16	200 MHz		2, 1	4, 2	16	800 MHz	Cobalt	View
78621	PCIe	3	3	16	200 MHz		1	2	16	800 MHz	Cobalt	View
71641	XMC	2	2	12	3.6 GHz	1.75 GHz					Cobalt	View
52641	3U VPX	2	2	12	3.6 GHz	1.75 GHz					Cobalt	View
58641-57641	6U VPX	4, 2	4, 2	12	3.6 GHz	1.75 GHz					Cobalt	View
78641	PCIe	2	2	12	3.6 GHz	1.75 GHz					Cobalt	View
71651	XMC	2	2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
52651	3U VPX	2	2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
58651-57651	6U VPX	4, 2	4, 2	12	500 MHz		2, 1	4, 2	16	800 MHz	Cobalt	View
78651	PCIe	2	2	12	500 MHz		1	2	16	800 MHz	Cobalt	View
71661	XMC	4	4	16	200 MHz						Cobalt	View
52661	3U VPX	4	4	16	200 MHz						Cobalt	View
58661-57661	6U VPX	8, 4	8, 4	16	200 MHz						Cobalt	View
78661	PCIe	4	4	16	200 MHz						Cobalt	View
71671	XMC						4	4	16	1.25 GHz	Cobalt	View
52671	3U VPX						4	4	16	1.25 GHz	Cobalt	View
58671-57671	6U VPX						8, 4	8, 4	16	1.25 GHz	Cobalt	View
78671	PCIe						4	4	16	1.25 GHz	Cobalt	View
71662	XMC	32	4	16	200 MHz						Cobalt	View
52662	3U VPX	32	4	16	200 MHz						Cobalt	View
58662-57662	6U VPX	64, 32	8, 4	16	200 MHz						Cobalt	View
78662	PCIe	32	4	16	200 MHz						Cobalt	View
71663	XMC	1100	4	16	200 MHz						Cobalt	View
52663	3U VPX	1100	4	16	200 MHz						Cobalt	View
58663-57663	6U VPX	2200, 1100	8, 4	16	200 MHz						Cobalt	View
78663	PCIe	1100	4	16	200 MHz						Cobalt	View
71624	XMC	34	2	16	200 MHz		34	2	16	800 MHz	Cobalt	View
52624	3U VPX	34	2	16	200 MHz		34	2	16	800 MHz	Cobalt	View
58624-57624	6U VPX	68, 34	4, 2	16	200 MHz		68, 34	4, 2	16	800 MHz	Cobalt	View
78624	PCIe	34	2	16	200 MHz		34	2	16	800 MHz	Cobalt	View
71664	XMC	4	4	16	200 MHz						Cobalt	View
52664	3U VPX	4	4	16	200 MHz						Cobalt	View
58664-57664	6U VPX	8, 4	8, 4	16	200 MHz						Cobalt	View
78664	PCIe	4	4	16	200 MHz						Cobalt	View

ELECTRONIC WARFARE SOLUTIONS

Delivering Technology Innovation to the Spectrum

From chip scale to system scale, we make the most advanced technologies profoundly more accessible to electronic warfare test, training and tactical applications

DISCOVER MORE

White Paper: The Need for Direct RF in an Evolving Defense Environment

This white paper describes next generation direct RF to redefine what’s possible in radar and...

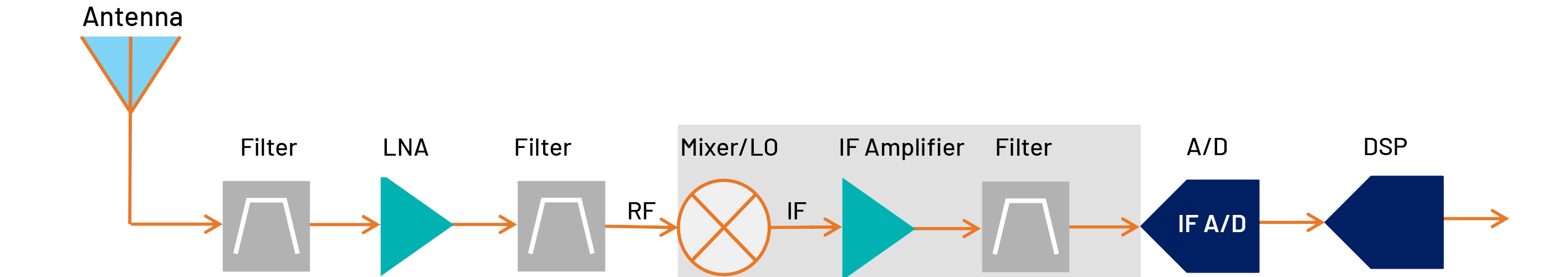

Direct RF technology to advance edge digital signal processing

Direct RF technology disrupts traditional acquisition techniques, delivering huge speed and...

Webinar: MOSA Virtual Summit: Bringing MOSA to C5ISR and Electronic Warfare Applications

Mercury's Rodger Hosking joins David Tremper, Director, Acquisition Integration and...

Webinar: Enabling Technologies for Advanced Electronic Warfare

Join Mercury's Bob Sgandurra, Senior Principal Product Manager, to discuss some of the latest and...

Contact Mercury

The processing power behind the most critical A&D missions

Trusted, Secure,
Highest Performance

The processing power behind the most critical A&D missions

Our Culture, Values and People Turn Ideas Into Action

Mercury Solves Your Mission-Critical Challenges

Mercury Solves Your Mission-Critical Challenges

Trusted, Secure,
Highest Performance

FPGA, A/D & D/A

High-Speed Digitization and FPGA Processing

FEATURED PRODUCT

FILTERS

FILTERS

FILTERS

FILTERS

FILTERS

Delivering Technology Innovation to the Spectrum

DISCOVER MORE

White Paper: The Need for Direct RF in an Evolving Defense Environment

Direct RF technology to advance edge digital signal processing

Webinar: MOSA Virtual Summit: Bringing MOSA to C5ISR and Electronic Warfare Applications

Webinar: Enabling Technologies for Advanced Electronic Warfare

The processing power behind the most critical A&D missions

Trusted, Secure,Highest Performance

The processing power behind the most critical A&D missions

Our Culture, Values and People Turn Ideas Into Action

Mercury Solves Your Mission-Critical Challenges

Mercury Solves Your Mission-Critical Challenges

Trusted, Secure,Highest Performance

FPGA, A/D & D/A

High-Speed Digitization and FPGA Processing

FEATURED PRODUCT

FILTERS

FILTERS

FILTERS

FILTERS

FILTERS

Delivering Technology Innovation to the Spectrum

DISCOVER MORE

White Paper: The Need for Direct RF in an Evolving Defense Environment

Direct RF technology to advance edge digital signal processing

Webinar: MOSA Virtual Summit: Bringing MOSA to C5ISR and Electronic Warfare Applications

Webinar: Enabling Technologies for Advanced Electronic Warfare

Trusted, Secure,
Highest Performance

Trusted, Secure,
Highest Performance

Delivering Technology Innovation to the Spectrum
