Quartz RFSoC FPGA Board Solutions

Streamline Heterogeneous Computing Design

Measuring only 2.5 by 4 inches, the Quartz SoMs provide the circuitry needed to maximize the performance of the AMD RFSoC®

The Quartz RFSoC family of boards leverages the proven design of SoMs to match specific SWaP application requirements in electronic warfare, radar, signals intelligence and much more. This unique design approach combines COTS availability and open standards with FPGA density and DSP logic in 3U OpenVPX, SOSA aligned 3U OpenVPX, PCIe and SFFs.





ASK A QUESTION


The Quartz RFSoC Family Difference

5 GHz
A/D Sampling
9.85 GHz
D/A Sampling
8 CH
DDC, A/D, DUC, D/A
4+
*Form Factors

*3U OpenVPX, PCIe, SFFs, SOSA aligned 3U OpenVPX, Custom

Quartz RFSoC Product Family

Features
  • The AMD Zynq UltraScale+ RFSoC Gen 1 and Gen 3
  • Eight integrated RF-class A/Ds and D/As
  • Quad ARM Cortex-A53 and dual ARM Cortex-R5 integrated processors
  • Dual 100 GigE optical interfaces for high-bandwidth data streaming
  • On-board GPS receiver
  • 16 GB of DDR4 SDRAM
  • LVDS connections to the FPGA for custom I/O
  • Sophisticated clocking for multi-channel and multi-board synchronization
  • x8 PCIe Gen 3 system interface
  • Factory-installed IP for waveform generation, real-time data acquisition, and more
  • Air-cooled and conduction-cooled versions
  • Navigator Design Suite
  • Model numbers: 7053, 7050, 6353, 6353S, 6353L, 6350S, 6350, 6003, 6001, 5953, 5950, 5553, 5550, 4801
Model Form Factor DDC Qty A/D Qty A/D Bits A/D Sample Freq. Max Input Freq. DUC Qty D/A Qty D/A Bits D/A Sample Freq. SOSA View Product
7050 PCIe 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz

View

6350 SFF 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz

View

5550 3U VPX 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Yes

View

5950 3U VPX 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz

View

6350S SFF 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz

View

6001 QuartzXM 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz

View

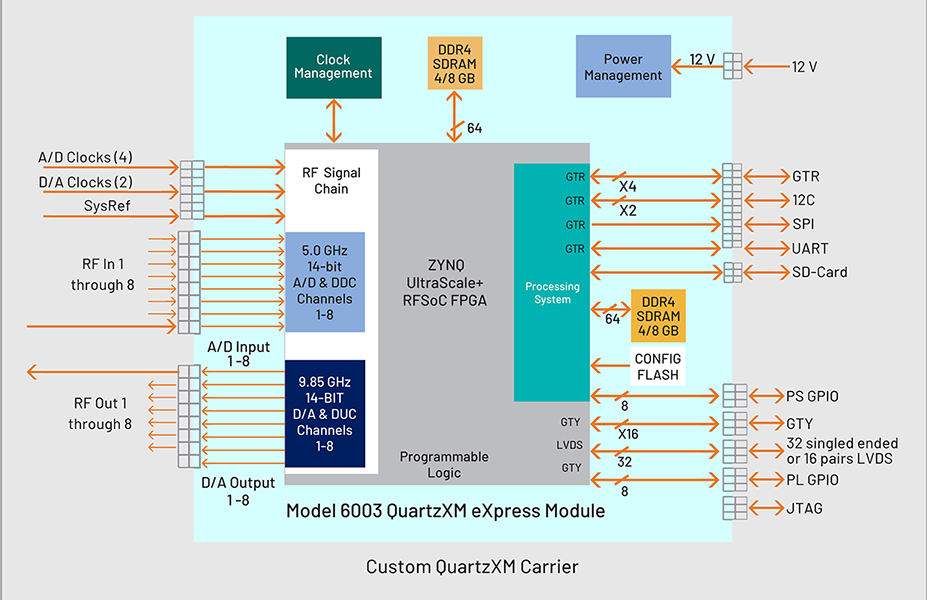

6003 QuartzXM 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

6353S SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

7053 PCIe 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

6353 SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

5553 3U VPX 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Yes

View

5953 3U VPX 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

4801

View

6353L SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz

View

BLOG

Why SOSA® is driving the future course of embedded military electronics

LEARN MORE

VODCAST

Delivering RF signal processing solutions to the edge with MOSA

WATCH THE VODCAST

WHITE PAPER

The need for direct RF in an evolving defense environment

DOWNLOAD NOW

RELATED PRODUCTS

Model 5585 and Model 5586 3U OpenVPX FPGA Boards

Model 5585 and Model 5586 3U OpenVPX FPGA Boards

SEE MORE

DCM3220 Digital Transceiver

DCM3220 Digital Transceiver

SEE MORE

Model 5560 Versal HBM ACAP Coprocessor

Model 5560 Versal HBM ACAP Coprocessor

SEE MORE

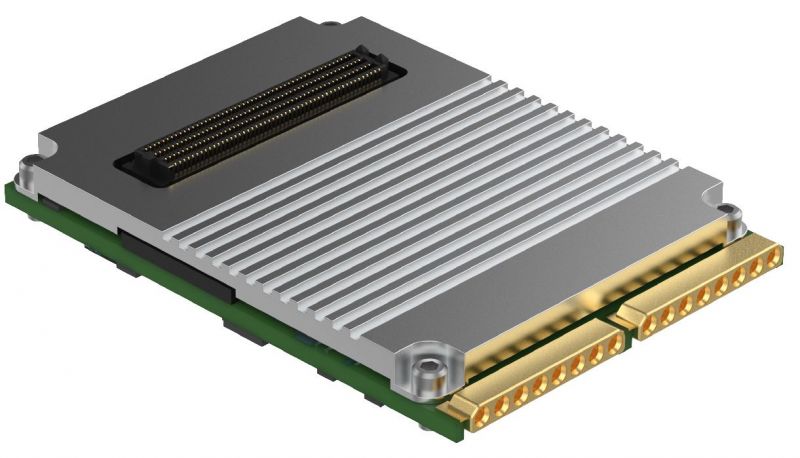

DRF2580 Direct RF FPGA System on Module Solutions
