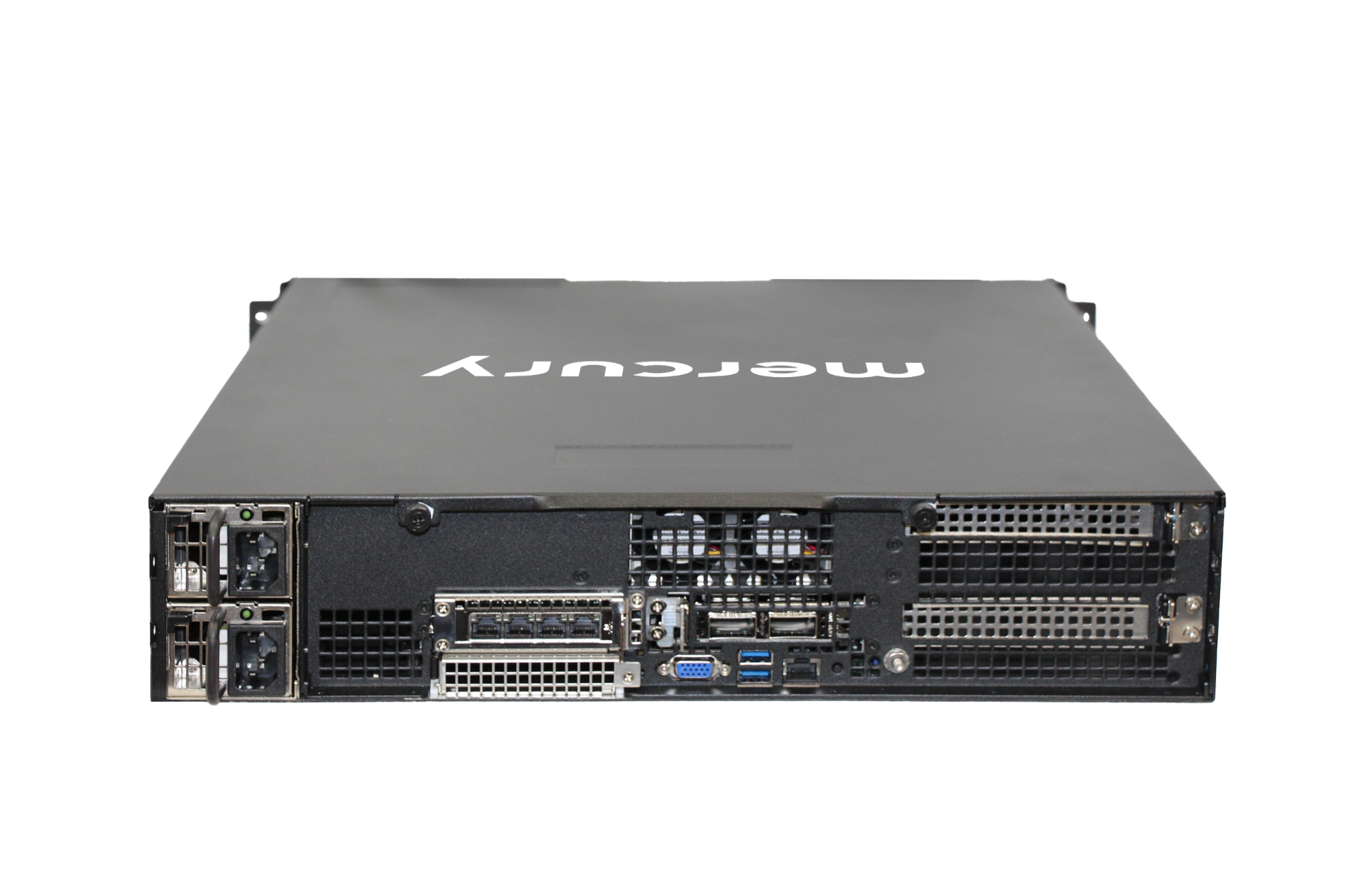

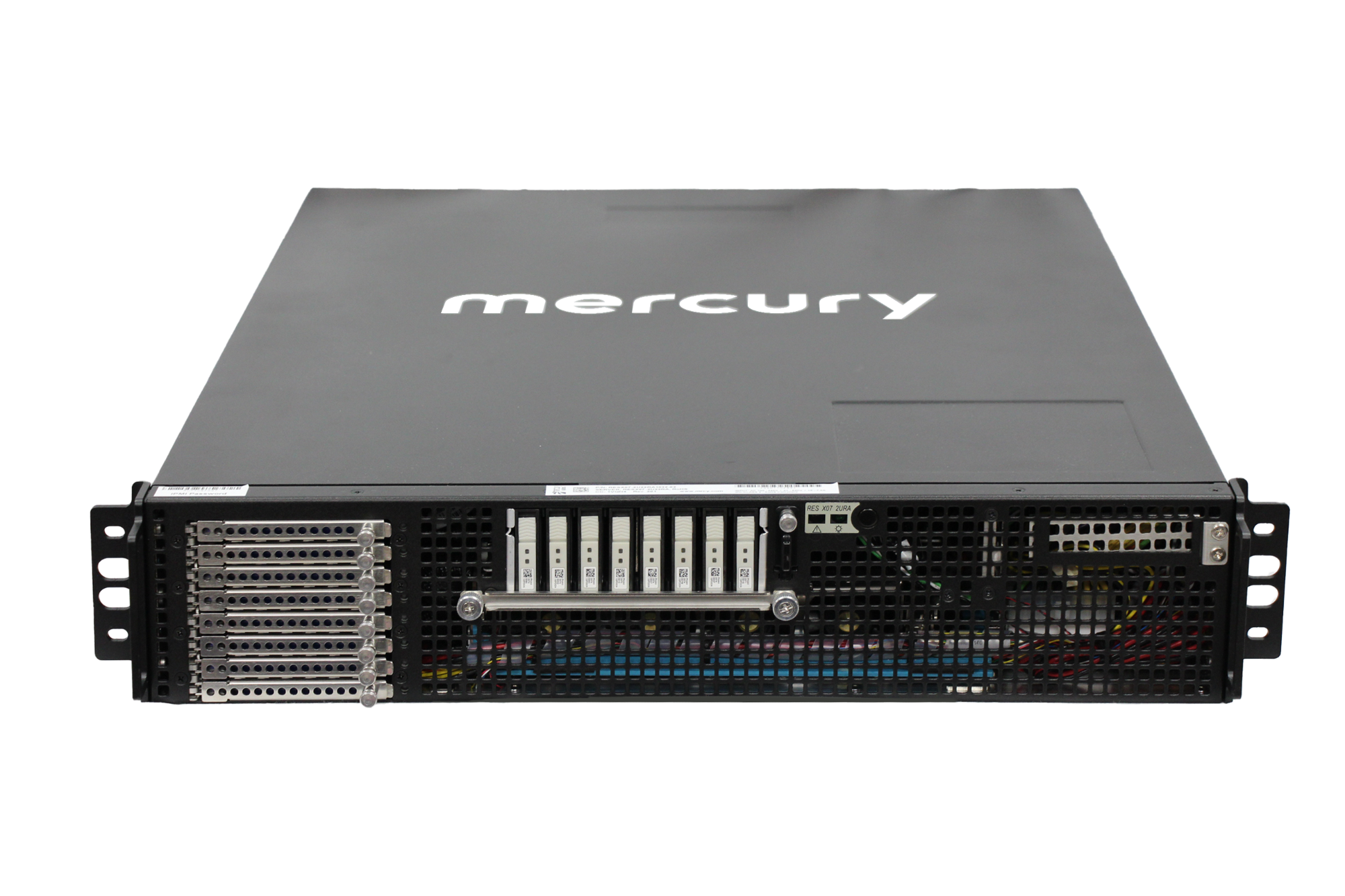

RES X07 2U Rugged Rack Servers

CLICK TO ENLARGE IMAGE

Our RES X07 rugged servers accelerate compute-intensive edge workloads and speed time to insight by optimizing the latest PCIe Gen 4 technologies. Features include 3rd generation Intel® Xeon® Scalable processors, modular and flexible I/O, up to 512 TB NVME storage and expansion slots that support three double-wide NVIDIA GPUs.

These servers are covered with the most comphrehensive lifetime warranty in the market to reduce program cost and risk.


VIEW SERVER MODELS   ASK A QUESTION

Workload-Optimized Designs

Increase Application Efficiency

Our field-proven servers deliver data-center caliber performance to eliminate latency bottlenecks and speed compute-intensive applications at the edge.


LEARN MORE

High Performance with RES X07

Graphic showing superior performance of Mercury Systems rugged servers compared to the previous generation.
Features

Highlights

  • Optimized for mission-critical high-speed data ingest, processing, networking, and
    storage in SWaP-constrained rack architectures deployed in harsh environments
  • Dual Intel 3rd Gen Xeon-SP CPUs (up to 80 cores total) with built-in AI and security workload accelerators, plus low-latency PCIe gen 4.0 throughput
  • Six I/O expansion slots, including support for up to three 300 W GPU accelerator cards or up to 16x removable Flash disks in short-depth RIO chassis (two configurations, 2U22RA is storage-density optimized and 2U22RB is GPU-density optimized)
  • Advanced security capability for hardware, software, and firmware for secure data-at-rest, data-in-transit, and data in-use
  • Front removable CMOS battery and SSDs; rear removable power supplies
  • OCP 3.0 slot and PCIe Gen4 slots to support up to 200 Gbps Ethernet/Infiniband
  • Ruggedized chassis includes patented/proprietary shock, vibration, thermal management, and serviceability features to ensure reliability

REQUEST A QUOTE

Applications

  • High-performance computing (HPC)
  • Sonar/radar signal processing
  • Sensor processing
  • Artificial intelligence (AI)
  • Machine learning/ deep learning (ML/DL)
  • Virtual reality (VR)
  • High performance simulation
  • Signals intelligence (SIGINT)
  • Command, Control, Computers, Communications, Cyber, Intelligence, Surveillance and Reconnaissance (C5ISR)
  • Industrial automation
  • Heterogeneous domain-specific processing (GPUs, FPGAs)
  • 5G-based workloads
  • Big data analytics
  • Electronic warfare (EW)
  • Virtualization
RES X07 2U Models
Depth (in.) I/O Access Storage Memory Slots Double-wide GPUs # PCIe slots Redundant Power Datasheet
22 Rear (8) slim 2.5" SSDs and (8) E1.L SSDs 16 Yes (2) 5 Yes

View

22 Rear (8) slim 2.5" SSDs and (4) E1.L SSDs 16 Yes (3) 5 Yes

View
