RES XR7 2U Rugged Rack Servers

Dual 3rd gen Intel Xeon Scalable processors, 22” depth, up to 20 DIMM slots, 6 PCIe slots and 16 SSD drives including E1.L

Our RES XR7 rugged servers accelerate compute-intensive edge workloads and speed time to insight by optimizing the latest PCIe Gen 4 technologies. Features include Intel® 3rd generation Xeon® Scalable processors, modular and flexible I/O, up to 512 TB NVME storage and expansion slots that support four double-wide NVIDIA GPUs.

These servers are covered with the most comphrehensive lifetime warranty in the market to reduce program cost and risk.


VIEW SERVER MODELS

Workload-Optimized Designs

Increase Application Efficiency

Our field-proven servers deliver data-center caliber performance to eliminate latency bottlenecks and speed compute-intensive applications at the edge.


LEARN MORE

Get Higher Performance with RES XR7

Graphic showing superior performance of Mercury Systems rugged servers compared to the previous generation.
Features

Technology and Options

  • Dual 3rd Gen Intel Xeon Scalable processors
  • Lightweight 22" deep 2U chassis
  • Fit up to four NVIDIA A100 GPUs
  • Up to 16 front-access NVME E.1L SSDs and multiple 2.5" SSD options
  • Up to 6 PCIe slots
  • 200 GbE networking
  • Software-defined infrastructure support
  • Modular front and rear I/O options that simplify cabling
  • Patented memory stabilization technology

Testing and Manufacturing

  • Designed and tested to military and industrial environmental standards
  • Server designs and customer information protected by Mercury’s DFARS 252.204-7012- and NIST SP 800-171A-compliant IT infrastructure
  • Designed, tested and manufactured in AS5553-compliant, AS9100D- and ISO9001-certified U.S. facilities

Lifetime Warranty


RES XR7 rugged rack servers are covered with the most comphrehensive lifetime warranty in the market to reduce program cost and risk.

Specifications
  • Dual Intel 3rd generation Xeon Scalable processors
  • Up to 20 DIMM slots, 2,560 GB DDR4-3200 MHz
  • Intel Trusted Execution Technology (TXT) with integrated TPM 2.0

Management and Operating System

  • Windows, Linux OS
  • Contact factory for OpenBMC
  • IPMI 2.0 management

Expansion and Modular Maintainability

  • Up to 6 expansions slots
  • Up to 8, 2.5" SATA/SAS drives (U.2 option available) or 16 E1.L NVMe storage drives
  • Up to 2 NVMe M.2 slots

Power Supply Options

  • Dual-redundant (1+1) AC and DC power options
  • MIL-461 options

Additional Options

  • Shock pins
  • Slide rails
  • Cable accessories

See datasheets below for more details

Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C, configuration dependent
  • Humidity: 5% to 90%, up to 50°C (non-condensing)
  • Shock: 3 axis, 35 g, 25 ms
  • Vibration: 4.7 Grms vertical, 4.5 Grms longitudinal, 5 Hz to 2000 Hz

Non-Operating

  • Temperature: -40°C to 70°C, configuration dependent
  • Humidity: 5% to 90%, up to 50°C (non-condensing)

Mechanical

2U

  • Height: 2U or 3.5" (88.9 mm)
  • Width: 17.36" (440.9 mm)
  • Depth: 22" (558.8 mm)
  • Weight (Typical)*: 37 lb
  • 19" rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.

RES XR7 2U Models
Depth (in.) I/O Access Storage Memory Slots Double-wide GPUs # PCIe slots Redundant Power Datasheet

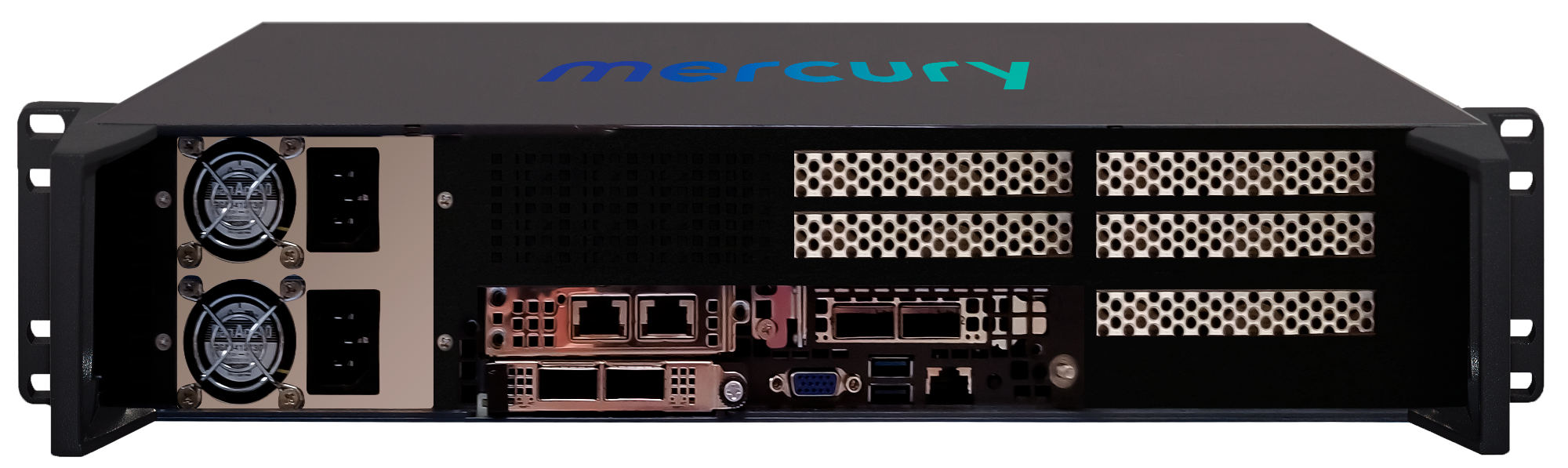

22 Front - 16 Yes (4) 6 Yes

View

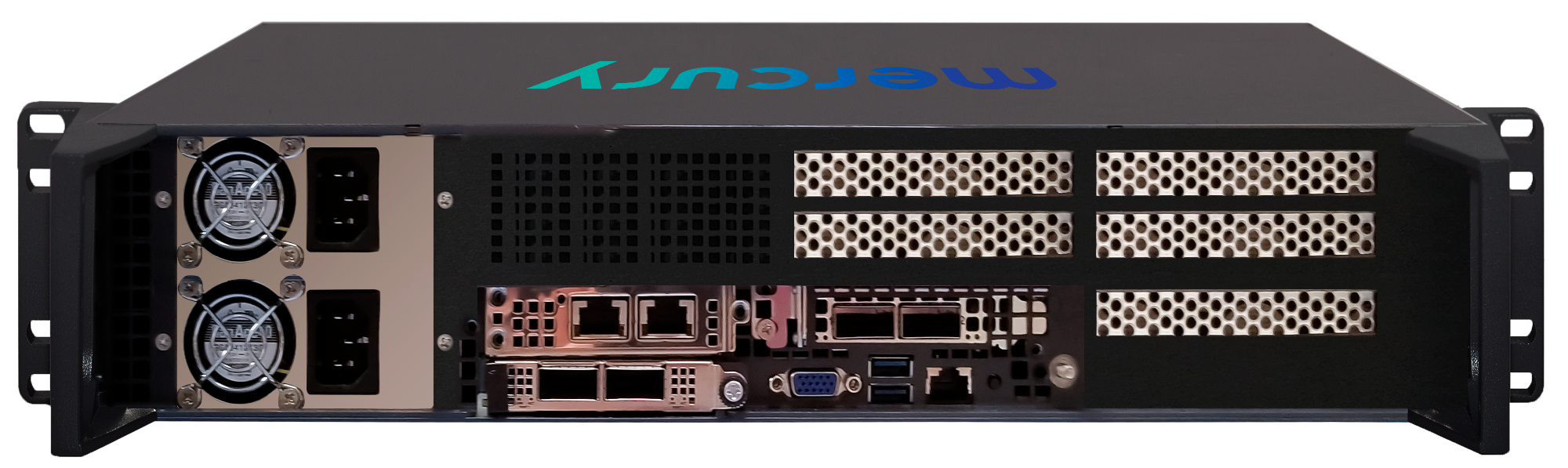

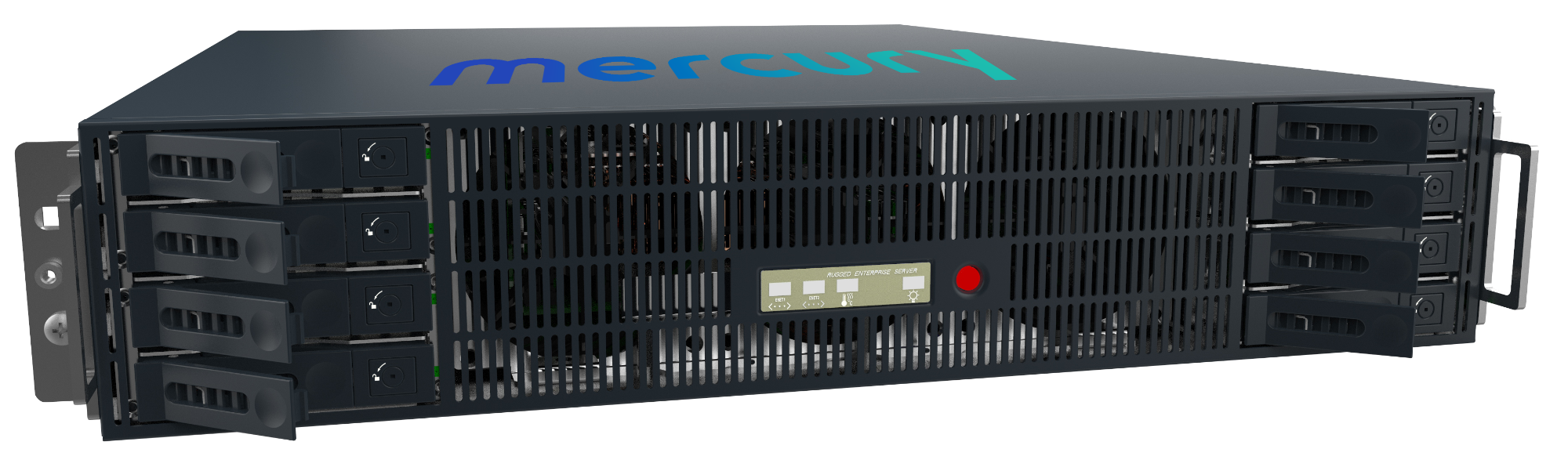

22 Rear (8) 2.5 SSDs, (16) E.1L SSDs 20 Yes (4) 6 Yes

View
