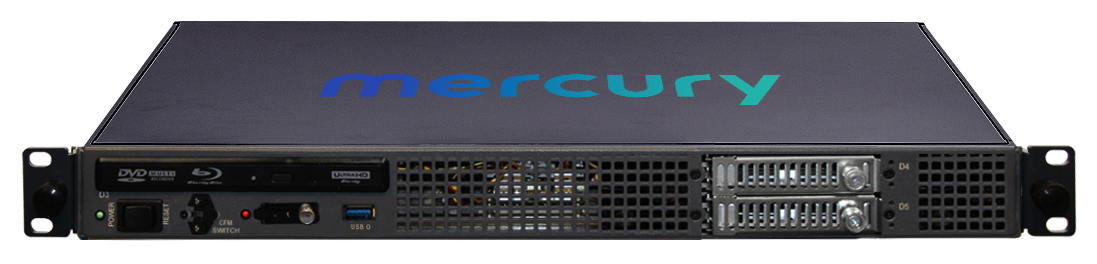

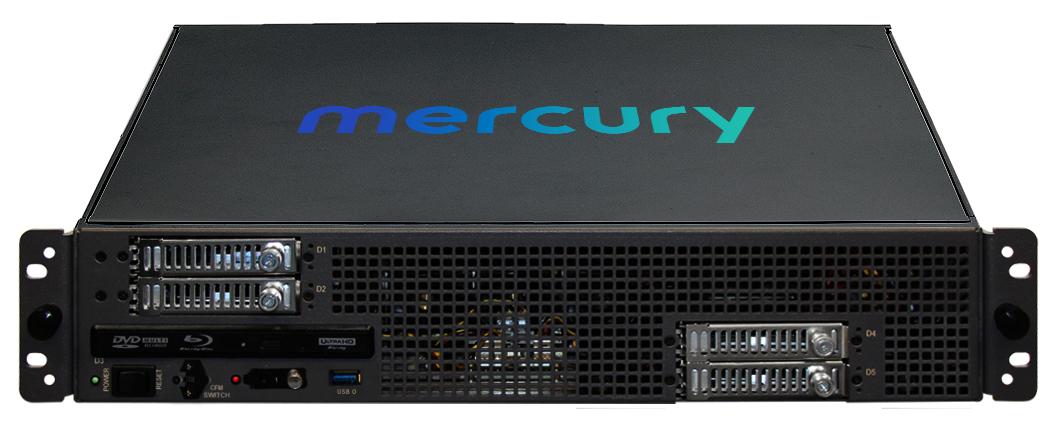

RTBX06 Rugged Trusted BuiltSECURE Servers

  • slide
  • slide
  • slide
  • slide

Uncompromised security for operations at the edge

Our RTBX06 rugged BuiltSECURE™ servers maintain system-wide integrity and protect critical data and technology from loss or compromise. To meet a variety of system requirements, the rugged BuiltSECURE servers feature a trusted motherboard with Dual Intel® Xeon® Gold Scalable processors, built-in security features, up to 120 TB of storage, high speed I/O and multiple expansion slots.


DOWNLOAD DATASHEET

Stay Ahead of Threats

Rugged Trusted BuiltSECURE Servers mitigate reverse engineering and safeguard against threats with features from our proven technology suite which includes:

- Access control
- Non-volatile memory-write protection
- Sanitization
- Physical protection mechanisms
- Sensors
- Key management
- Data-at-rest protection
- Secure firmware management
- Cryptographic offload engine capabilities



SAFEGUARD YOUR APPLICATION

Features

Mitigate Risk

  • Root of Trust (RoT) enforced boot and configuration management for consistent and secure performance
  • Cyber-resilient BIOS minimizes attack surfaces
  • Composable architecture preserves security development to reduce overall cost
  • Designed, tested and manufactured in the USA through a trusted supply chain
  • Directly soldered components eliminate disconnect during shock events
  • Certified to MIL-STD: 810H, 167-1, 1474D
Specifications

Technical Specifications

  • Dual Intel Xeon Gold Scalable processors;
    • Gold 6238T (22 core, 1.9 GHz, 125 W)
  • 3x UPI links up to 10.4 GT/s
  • Up to 384 GB DDR4-2400 MHz
  • Intel Trusted Execution Technology (TXT) with integrated TPM 2.0

Management and Operating System

  • BIOS: Mercury-specialized and supported
  • IPMI 2.0 management; optional remote management module
  • Red Hat® Enterprise Linux® v7 support
  • Secure hypervisor and Linux options

BuiltSECURE Technology, SSE Service & Support

Expansion & Modular Maintainability

  • Up to 2 x16 PCIe cards, Gen 3.0, full-height, half-length
  • 8x PCIe 3.0 card configuration
    • Riser B, C designed for two dual-slot GPU cards
  • 8 internal SATA 3 ports (one consumed by optional optical drive)
  • SAS3, U.2 NVMe storage with RAID option available via PCIe

1U

  • 3 fixed fans (2-piece cover facilitates replacement in-situ)

2U

  • 5 fixed fans (2-piece cover facilitates replacement in-situ)
Riser C Full-Height, Half-Length Inverted Riser B Full-Height, Half-Length Riser A Half-Height, Half-Length
x8, CPU0 x16, CPU1 x8, PCH
x16, CPU0/ x0 x8, CPU1 x8, CPU1
x16, CPU0 x16, CPU1



  •

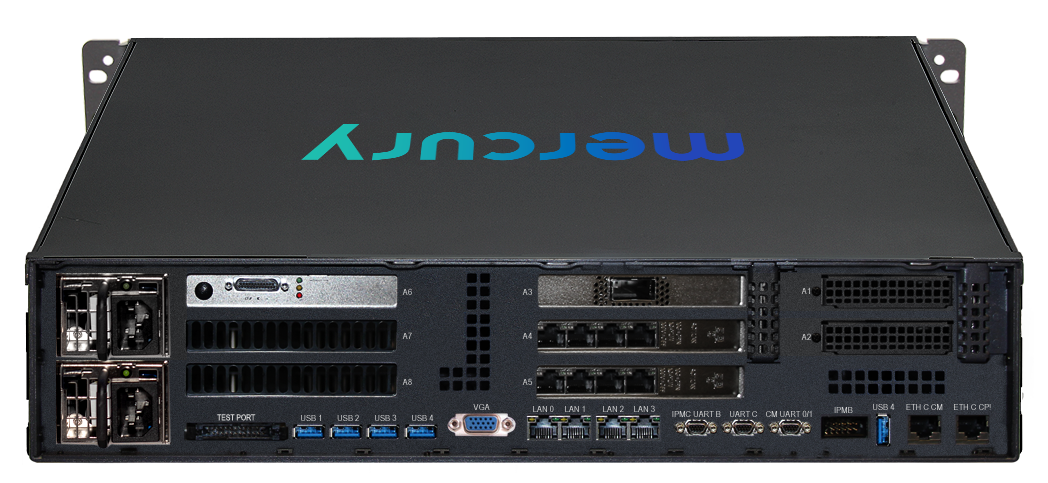

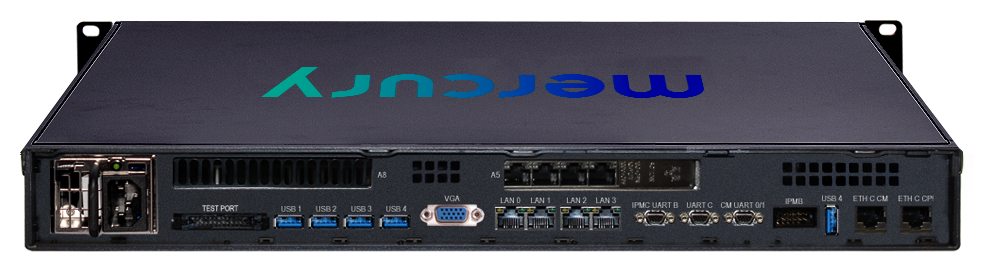

Input/Output Versatility

  • Multi-format optical drive
  • CD/DVD/Blu-ray R/W
  • 5x USB 3.0 ports
  • 1x USB 2.0 port
  • 4x 10 GbE ports
  • 1x 10/100 Ethernet port
  • GPIO test port
  • VGA port

Power Supply Options

1U

  • Single 550 W power supply 90-264 VAC (47/63 Hz)

2U

  • Redundant, hot-swappable 750 W power supply, 90–264 VAC (47–63 Hz)

Additional Options

  • Shock pins
  • Front door filter
  • Slide rails and brackets/ shelf system
  • Cable accessories
  • Tamper-evidence features

Mechanical

  • Height: 1U or 1.75" (44.45 mm)
  • Height: 2U or 3.5" (88.9 mm)
  • Width: 17.2" (436.9 mm)
  • Depth: 20" (508 mm)
  • Weight: 1U 26.5 lb (12 kg)
  • Weight: 2U 34 lb (15.4 kg)
  • 19" rackmountable

Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.

Lower Your Total Cost of Ownership

Systems exposed to classified information in the field must be physically guarded or properly sanitized. Our built-in board volatility features ensure no classified data is unintentionally stored on the hardware, avoiding the need for expensive handling.

Secure Your Server Cluster

When configured as a boot server, BuiltSECURE technology ensures only authorized personnel can modify the cluster. Built-in cryptography and physical security delivers assurance and maintains data integrity even when the stack is offline or remotely accessed, making it ideal for edge applications.
