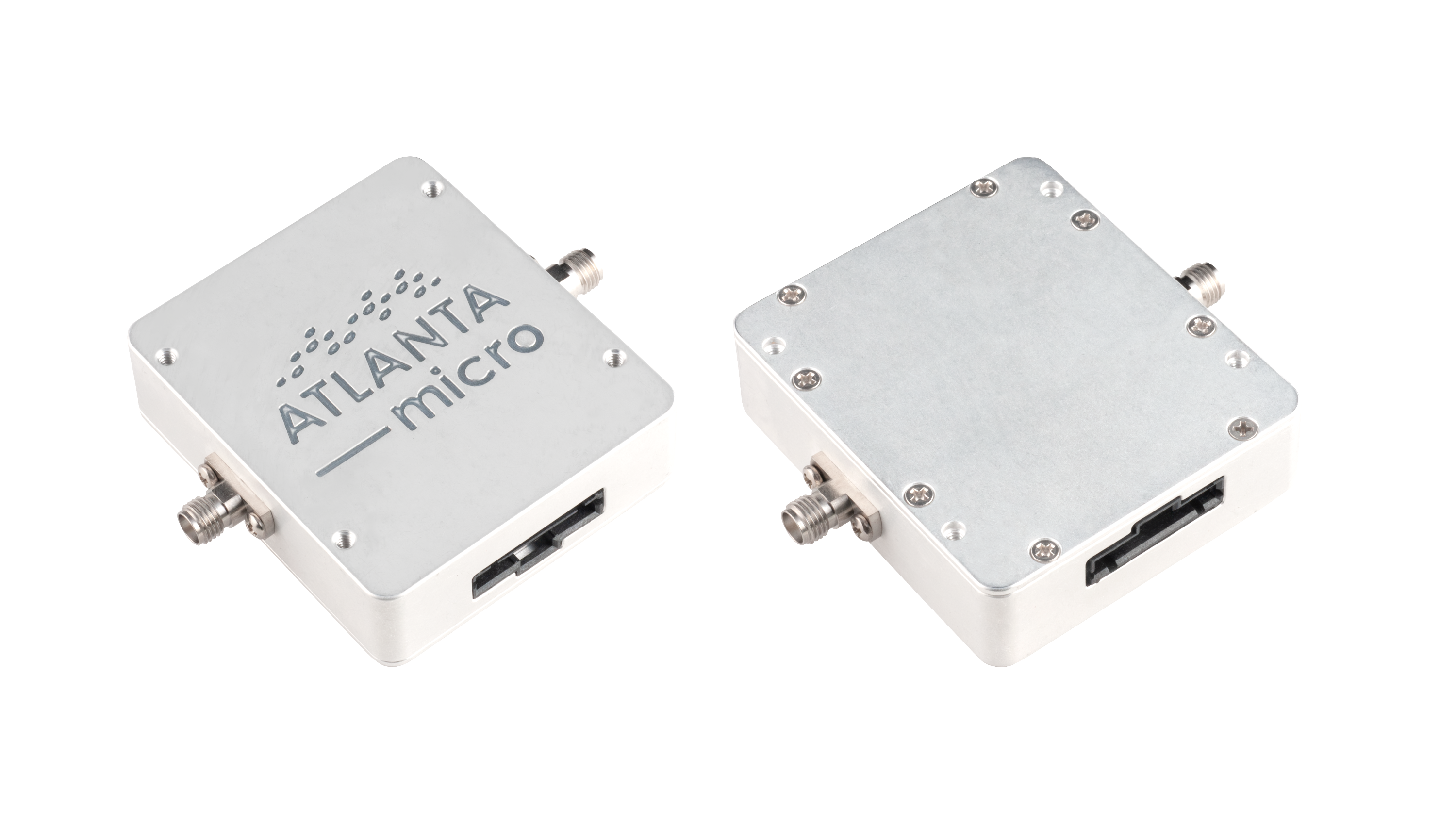

AM3172-m
Digitally Tunable 20 MHz to 8 GHz Bandpass
Function:
RF Filter Bank
ECCN:
3A001.b.5.a AM3172 is a tunable bandpass filter module covering 20 MHz to 8 GHz.
The device contains the AM3150, AM3151, and AM3156 digitally tunable filter components in a connectorized, shielded module. Control interface is a 3-wire SPI (serial peripheral interface). The AM3172-m is an excellent front-end preselector for a receiver, providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth.
5
Insertion Loss (dB)
60
Typical Rejection (dB)
2.4'' x 2.1''
Module Package
