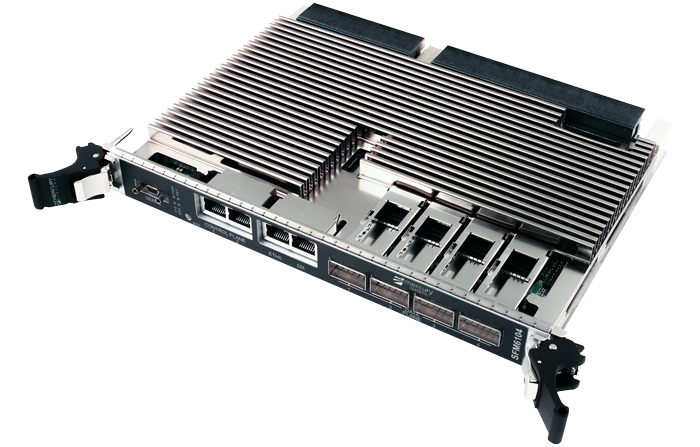

SFM6104 6U OpenVPX, SOSA-aligned, Network Switch Board

  • slide

Wideband Ethernet and InfiniBand Switching for Complex Sensor Processing

Providing comprehensive layer-2 switching and system management for
up to 18 OpenVPX payload slots, the EnsembleSeries™ SFM6104 6U OpenVPX network switch board features 40 Gigabit Ethernet or InfiniBand® with Mellanox® 6th generation SwitchX-2 VPI and system management. This wideband switch is available with MOTS+ technology for extreme environmental protection and SOSA-aligned profiles for maximum interoperability and technology reuse.

DOWNLOAD DATASHEET

BUILT FOR TODAY, READY FOR TOMORROW

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

FEATURES and RESOURCES
  • 6U OpenVPX, 1.0" slot pitch
  • Mellanox® 6th gen SwitchX 2 VPI ASIC
  • 40 GbE or InfiniBand high bandwidth switching
    •  40GBASE-KR4 and 10GBASE-KX4
    • FDR-10, QDR, DDR and SDR
  • Up to 18 payloads
  • 8x front I/O Ethernet ports
  • Single point OpenVPX chassis management
  • MOTS+ extreme environmental protection
  • SOSA aligned and VITA 65 compliant
  • See software/firmware/tool suites







OpenVPX Slot & Module Profiles
Control Plane; Data Plane

SLT6-SWH-20U19F-10.4.1
20 UTP ports; 19 FP ports

MOD6-SWH-20U19F-12.4.1
20 UTP ports; 19 FP ports

MOD6-SWH-20U19F-12.4.1-5
20 UTP ports; 19 FP ports
(SOSA compatible)

SLT6-SWH-16U20F-10.4.2
16 UTP ports; 20 FP ports

MOD6-SWH-16U20F-12.4.2-5
16 UTP ports; 20 FP ports
(SOSA compatible)

MOD6-SWH-16U20F-12.4.2-10
16 UTP ports; 20 FP ports
(SOSA compatible)

MOD6-SWH-16U20F-12.4.2
16 UTP ports; 20 FP ports

MODULAR OPEN SYSTEM ARCHITECTURES

Deploy and Upgrade Technology at the Speed of Relevance

Our design methodology incorporates modular open system architectures (MOSA) and industry standards, such as OpenVPX™ and SOSA™, so you can deploy and refresh the latest technology quickly to adapt to evolving threats, while maintaining interoperability across domains.

DISCOVER MORE
