SCM6010 & CAN6000 6U OpenVPX SSD Storage

  • slide

Low-latency Storage That Performs Like Memory

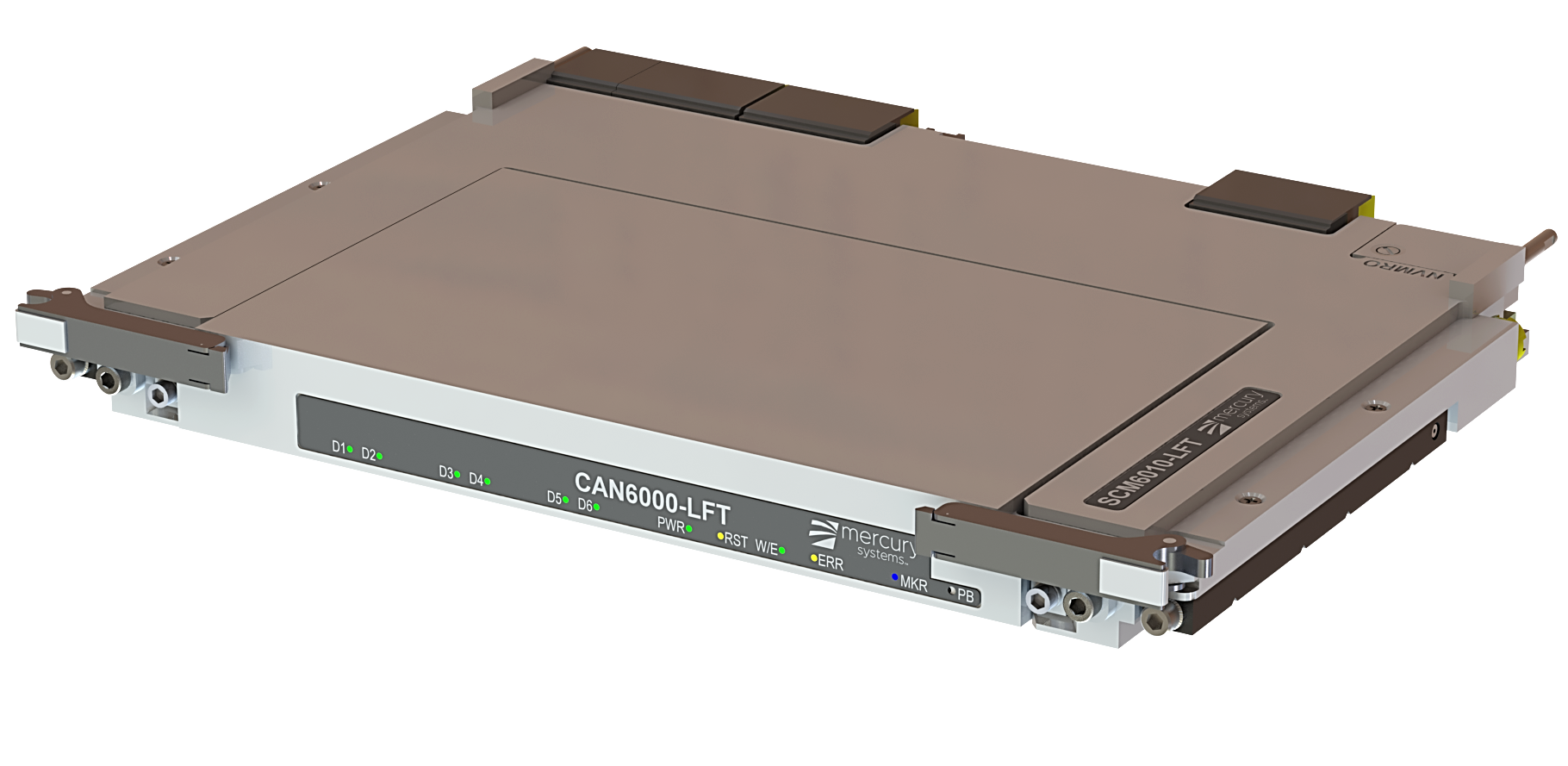

The EnsembleSeries™ SCM6010 is a 6U OpenVPX SSD plug-in storage module with PCIe switching and removable canister (CAN6000). SCM6010 storage drives are an industry first, offering removable storage canisters that allow the user to easily replace the storage for rapid mission updates, removal of sensitive material and technological refreshes. For deployment anywhere, the wideband, low-latency storage modules are available with modified-off-the-shelf-plus (MOTS+) packaging technology for extreme environmental protection.

To deliver the vast memory and storage resources critical for the remote deployment of today’s most contemporary AI, electronic warfare, electro-optical/infrared and other big processing, image-intensive applications, the SCM6010 modules perform more like memory than traditional storage, accessing their M.2 NVMe drives via an efficient PCIe architecture.

DOWNLOAD DATASHEET

BUILT FOR TODAY, READY FOR TOMORROW

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

FEATURES and RESOURCES
  • Up to 24TB of high-speed storage
  • 48 x PCIe Gen3 low-latency, high-bandwidth read/write lanes
  • Removable storage canisters
  • Advanced VITA 46.11 system management & monitoring

DEPENDABILITY

Mitigate Deployment Risk with Proven Experience

We employ cutting-edge commercial technologies and unique processes borne from a wealth of in-house expertise, garnered on over 300 programs, to develop and manufacture solutions to meet your application's demanding conditions. 
