High-Power SMT Limiters

RF limiters, precision engineered to deliver uncompromising performance

High-Power SMT Limiters

Mercury Systems’ portfolio of high-power RF limiters are precision engineered to deliver uncompromising performance for SWaP-sensitive applications demanding full functionality in the harshest of operating environments. Unique PIN diode architecture minimizes junction temperatures to assure long life under high-power conditions.

The newly released broadband, high-power surface mount (SMT) limiters highlights Mercury’s commitment to SWaP-optimized designs. By replacing cable interconnects with surface mount technology, physical footprint reductions are enabled without sacrificing performance or reliability.

  • slide
Model Number Free Range (GHz) Max Pulse Width (µSec) Peak Power (W) Flat Leakage (dBm) Dimensions Datasheet

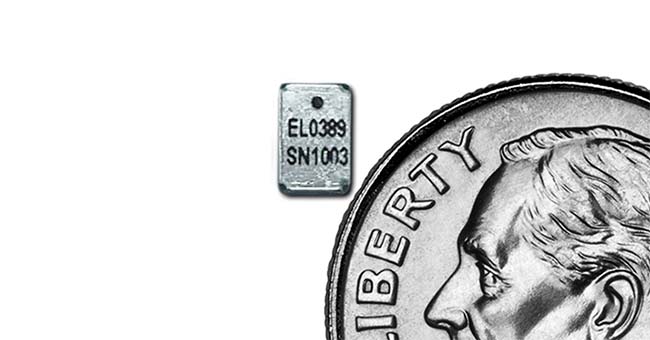

EL0389 8.5 - 12 5 200 17 4mm x 3mm

View

Integrated Manufacturing

Reduce Risk with Automated RF Manufacturing

Utilizing the latest in automated RF manufacturing, we make production of cutting-edge technology scalable and repeatable, supporting your ramp to full-rate production while reducing risk. With 250,000 square feet of flexible manufacturing capability, we ensure delivery of high-volume high-quality product.
