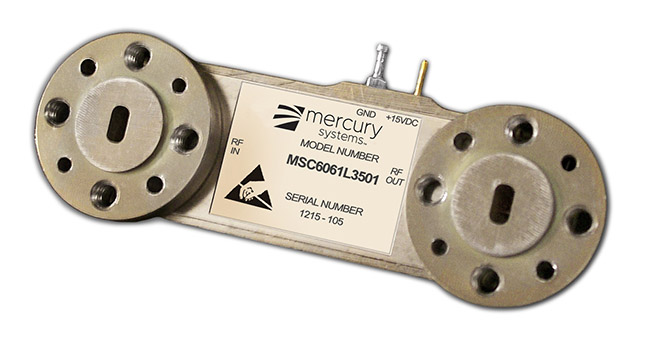

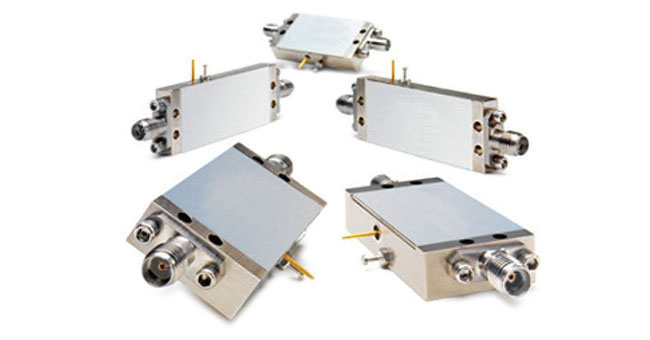

Millimeter-Wave Amplifiers

Operate at V-band with rugged amplifier solutions to 65 GHz

  • slide
  • slide

High-Frequency Microwave Amplification

When your application requires operating at Ka-band and above, trust Mercury Systems’ millimeter wave amplifiers to perform. With standard designs up to 65GHz and custom products available, Mercury is ready to support your high frequency requirement.

Explore Millimeter-Wave Amplifiers

Model Number Freq Start (GHz) Freq Stop (GHz) Gain (dB) min Flatness (±dB) max P1dB (dBm) min Noise Figure (dB) max VSWR (In/Out) nom DC Current (mA) Datasheet
MSC4060L3001 40 60 30 3 10 8.5 3.0:1 300

View

MSC1840L3201 18 40 32 2.5 15 5.5 2.2:1 440

View

MSC1840L3001 18 40 30 2 10 4.5 2.25:1 350

View

MSC6065L2001 60 65 20 1.5 10 8.5 3.0:1 250

View

MSC2640L3701 26 40 37 2 10 3 2.25:1 275

View
