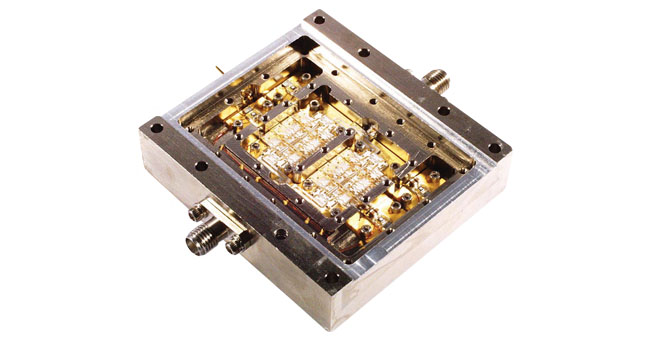

Ultra-Low Phase Noise Amplifiers

Broadband microwave amplifiers to 40 GHz

  • slide

Minimize System Phase Noise

When phase noise is critical, turn to Mercury’s line of low phase noise amplifiers. Taking full advantage of the industry’s best device technology, these parts are designed to meet the toughest requirements. Through Mercury System’s advanced production capabilities, phase noise can be accurately measured—even during environmental tests, such as vibration.

Explore Ultra-Low Phase Noise Amplifiers

Model Number Freq Start (GHz) Freq Stop (GHz) Gain (dB) min Flatness (±dB) max Phase Noise 100Hz Phase Noise 1KHz Phase Noise 10KHz Phase Noise 100KHz Phase Noise 1MHz NF (dB) max P1dB (dBm) min VSWR (In/Out) nom Voltage (V), Current (mA) Datasheet
AML083PNA1801 0.8 3 18 1 -150 -160 -166 -170 -173 5 17 2.5:1 12V, 100mA

View

AML1518PNA1711 15 18 14 0.5 -135 -145 -155 -163 -167 6 26 1.8:1 12V, 500mA

View

AML218PNA3213 2 12 32 2.5 -125 -140 -145 -155 -160 4 25 2.0:1 12V, 500mA

View

AML26PNA1001 2 6 10.5 1 -150 -160 -168 -174 -175 6 16.5 1.5:1 8V, 115mA

View

AML26PNC1511 2 6 15 2 -145 -155 -160 -165 -170 7 34 1.5:1 12V, 2700mA

View

AML4040PNB1511 40 40 15 2 -135 -146 -150 -155 -160 - 24 2.0:1 6V, 1200mA

View

AML612PNA1411 6 12 14 1 -143 -150 -155 -160 -167 6 25 2.0:1 12V, 500mA

View

AML69PNA1601 2 12 32 2.5 -125 -140 -145 -155 -160 4 25 2.0:1 12V, 500mA

View

AML69PNC1511 6 9 14 1 -145 -155 -160 -165 -170 8 34 1.4:1 12V, 2300mA

View

AML812PNA0803 8 12 8 1.5 -145 -153 -160 -165 -168 6 25 1.8:1 12V, 250mA

View

AML812PNB1813 8 12 18 2 -150 -160 -168 -172 -175 7 17 1.5:1 12V, 250mA

View
