MMIC Attenuators
Mercury's attenuator products offer excellent insertion loss, flat frequency response, and temperature stability, and are designed for gain control and dynamic range optimization applications. Our product portfolio consists of solutions across a broad frequency range, including broadband, 5G, K band, and Ka band.
FEATURED PRODUCT

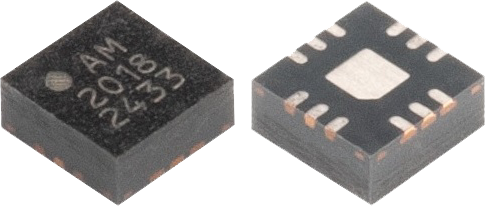

AM2018 2 to 32 GHz Voltage Variable MMIC Attenuator
A broadband voltage variable attenuator covering the 2 to 32 GHz frequency,...
Explore Products
| Part Number | Function | Freq. (GHz) Low | Freq. (GHz) High | Insertion Loss (dB) | Atten. (dB) | IIP3 (dBm) | Supply (+V) | Control | Package | View |
|---|---|---|---|---|---|---|---|---|---|---|
| AM2005 | 5-bit, 1 dB steps | 0 | 20 | 2.5 | 31 | 40 | 5 | 3.3 | 4 mm QFN | |
| AM2010 | 5-bit 1 dB Steps | 0 | 30 | 3.5 | 31 | 42 | 3.3 | 3.3 | 4 mm QFN | |
| AM2018 | voltage variable 0 to 6V | 2 | 32 | 4 | 30 | 25 | 5 | 6 | 3mm QFN |
