RES XR7 1U Rugged Rack Servers

Dual 3rd gen Intel Xeon Scalable processors, 18-22” depth, up to 20 DIMM slots, 6 PCIe slots and 8 SSD drives including E1.L

Our RES XR7 rugged servers accelerate compute-intensive edge workloads and speed time to insight by optimizing the latest PCIe Gen 4 technologies. Features include Intel® 3rd generation Xeon® Scalable processors, modular and flexible I/O, up to 256 TB NVME storage and expansion slots that support a double-wide NVIDIA GPU.

These servers are covered with the most comphrehensive lifetime warranty in the market to reduce program cost and risk.


View Server Models



Workload-Optimized Designs

Increase Application Efficiency

Our field-proven servers deliver data-center caliber performance to eliminate latency bottlenecks and speed compute-intensive applications at the edge.


LEARN MORE

Get Higher Performance with RES XR7

Graphic showing superior performance of Mercury Systems rugged servers compared to the previous generation.
FeaturesSpecificationsEnvironmental & Mechanical
Features

Technology and Options

  • Dual 3rd Gen Intel Xeon Scalable processors
  • Lightweight 1U chassis as short as 18"
  • Fit up to one NVIDIA A100 GPU
  • Up to 8 front-access NVME E.1L SSDs and multiple 2.5" SSD options
  • Up to 6 PCIe slots
  • 200 GbE networking
  • Software-defined infrastructure support
  • Modular front and rear I/O options that simplify cabling
  • Patented memory stabilization technology

Testing and Manufacturing

  • Designed and tested to military and industrial environmental standards
  • Server designs and customer information protected by Mercury’s DFARS 252.204-7012- and NIST SP 800-171A-compliant IT infrastructure
  • Designed, tested and manufactured in AS5553-compliant, AS9100D- and ISO9001-certified U.S. facilities

Lifetime Warranty


RES XR7 rugged rack servers are covered with the most comphrehensive lifetime warranty in the market to reduce program cost and risk.

Specifications
  • Dual Intel 3rd generation Xeon Scalable processors
  • Up to 20 DIMM slots, 2,560 GB DDR4-3200 MHz
  • Intel Trusted Execution Technology (TXT) with integrated TPM 2.0

Management and Operating System

  • Windows, Linux OS
  • Contact factory for OpenBMC
  • IPMI 2.0 management

Expansion and Modular Maintainability

  • Up to 6 expansions slots
  • Up to 8, 2.5" SATA/SAS drives (U.2 option available) or 8 E1.L NVMe storage drives
  • Up to 4 NVMe M.2 slots

Power Supply Options

  • Single or Redundant AC or DC power options
  • MIL-STD 461

Additional Options

  • Shock pins
  • Slide rails
  • Cable accessories

See datasheets below for more details

Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C, configuration dependent
  • Humidity: 5% to 90%, up to 50°C (non-condensing)
  • Shock: 3 axis, 35 g, 25 ms
  • Vibration: 4.7 Grms vertical, 4.5 Grms longitudinal, 5 Hz to 2000 Hz

Non-Operating

  • Temperature: -40°C to 70°C, configuration dependent
  • Humidity: 5% to 90%, up to 50°C (non-condensing)

Mechanical

1U

  • Height: 1U or 1.75" (44.45 mm)
  • Width: 17" (433.32 mm - 440.9 mm) depending on model
  • Depth: 18" - 22" (457.2 mm - 558.8 mm) depending on model
  • Weight (Typical)*: 23 lb - 27 lb depending on model
  • 19" rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.

RES XR7 1U Models
Depth (in.) I/O Access Storage Memory Slots Double-wide GPUs # PCIe slots Redundant Power Datasheet

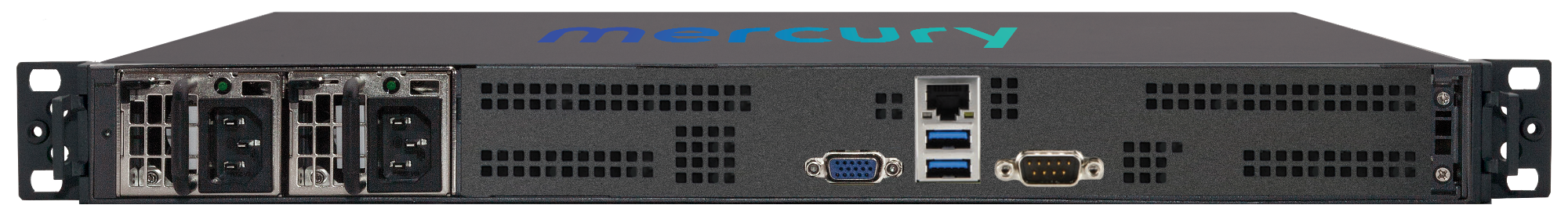

18 Front - 16 - 4 Yes

View

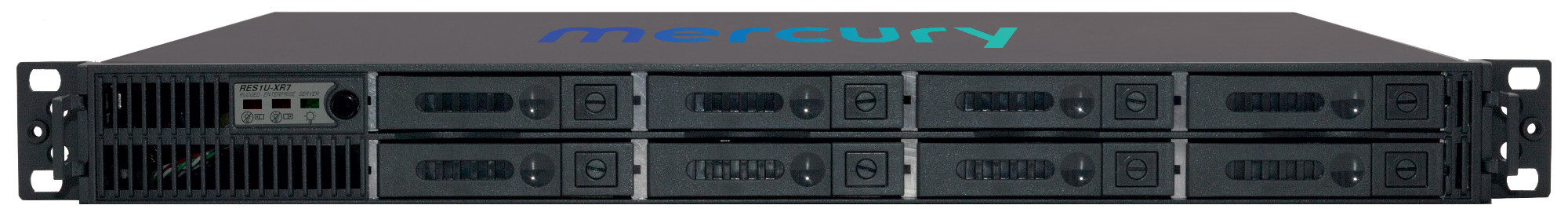

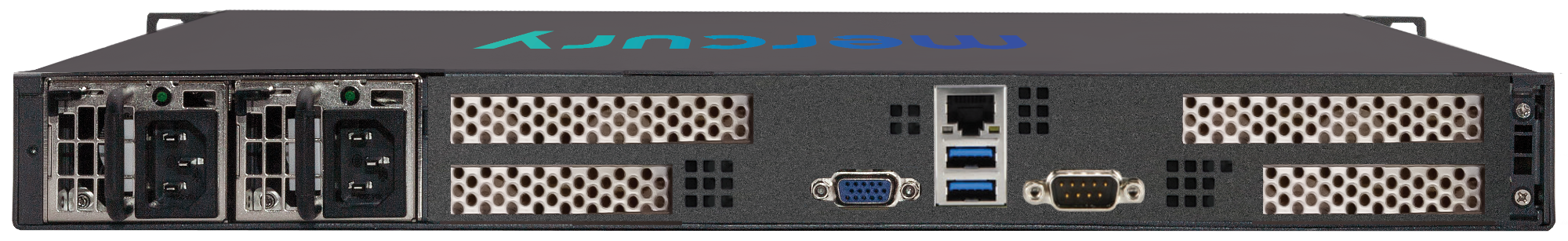

21 Rear (8) 2.5" SSDs 16 - 4 Yes

View

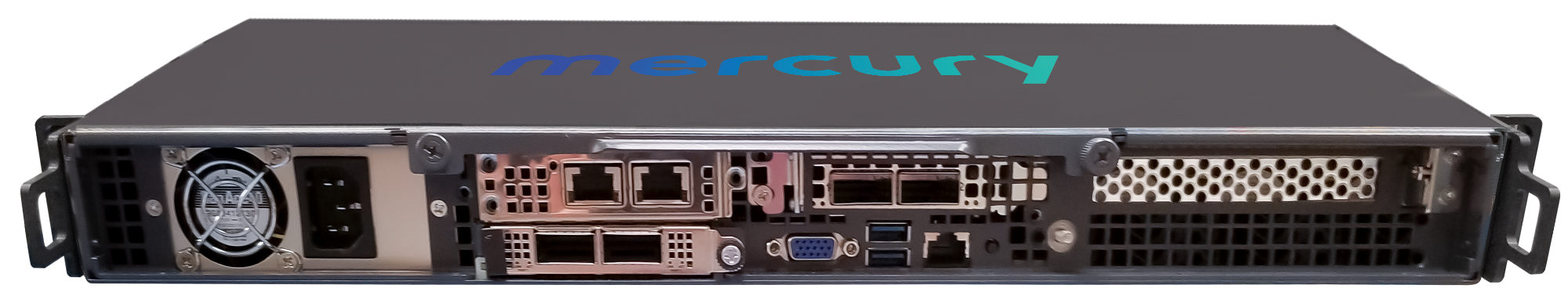

22 Front - 20 Yes (1) 6 -

View

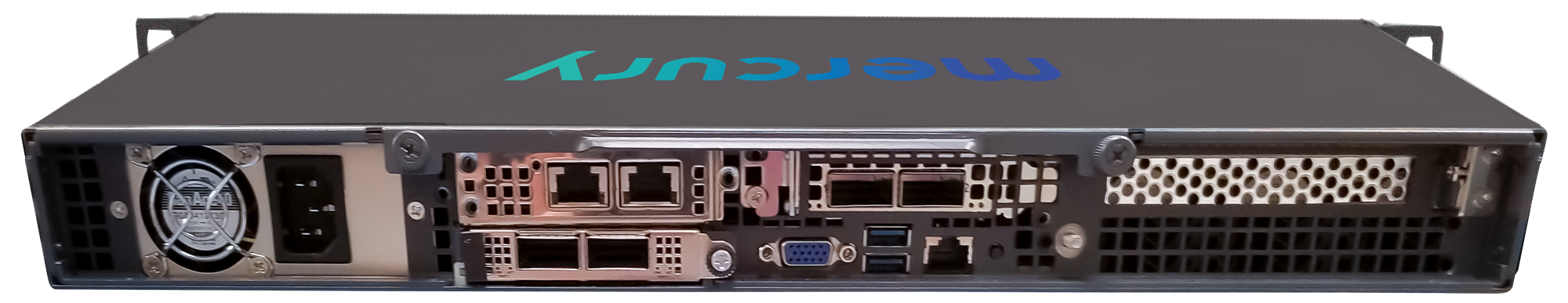

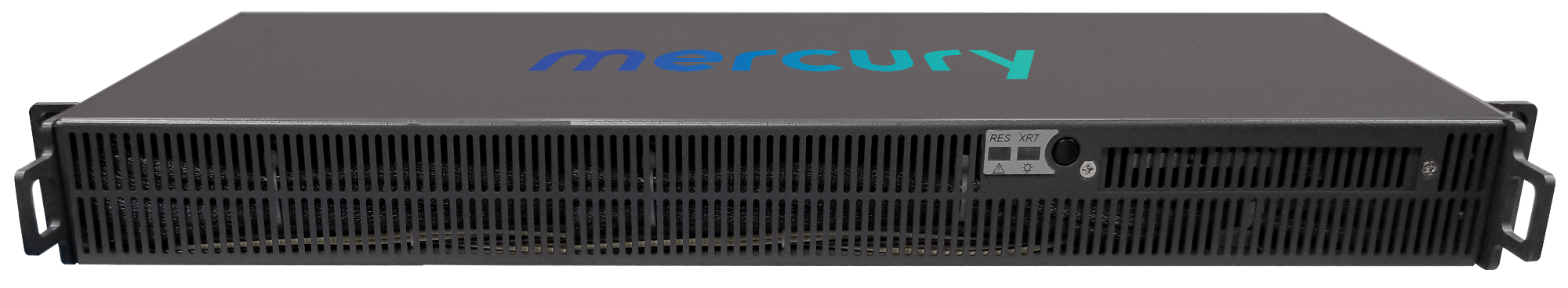

22 Rear (4) 2.5" SSDs 20 Yes (1) 6 -

View

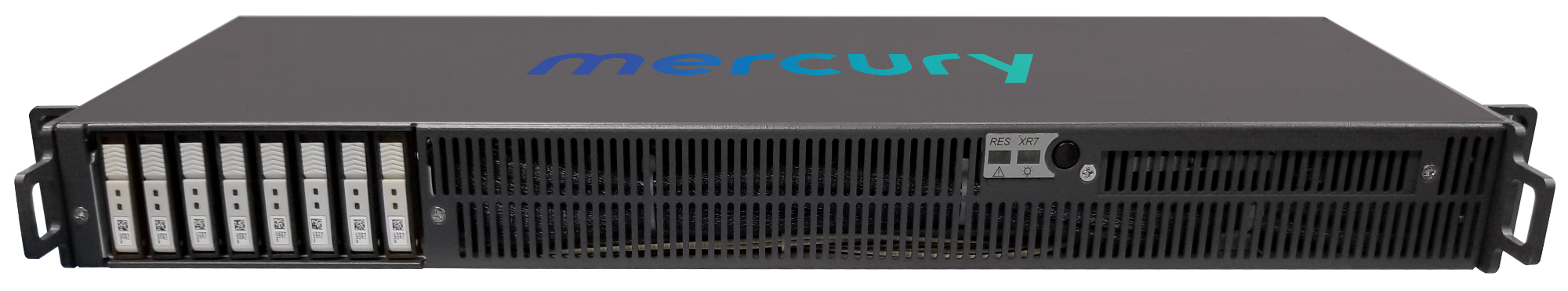

22 Rear (8) E1.L SSDs 20 - 4 -

View
